Rittal DK 7979.815 PDU UK - EN 62368-1, EMC 2014/30/EU
Part Number: 7979815
Manufacturer
Rittal
Part number
7979815
Category
Alt Part Number
DK 7979.815
Quick Summary
PDU UK power distribution for data centers delivers reliable, scalable energy to IT racks. In dense IT environments, balancing multiple inlets and plug types while maintaining uptime can be complex and costly. This unit complies with EN 62368-1 and the EMC Directive 2014/30/EU, with CE marking for safety and interoperability. Along with a robust 32 A rating and 7.4 kW capacity, it supports energy monitoring options for proactive optimization. Designed for VX IT enclosure frames and data-center deployments, it integrates smoothly into existing IT infrastructure, delivering straightforward deployment and measurable cost savings for rack-level power management.
Product Information
Extended Description

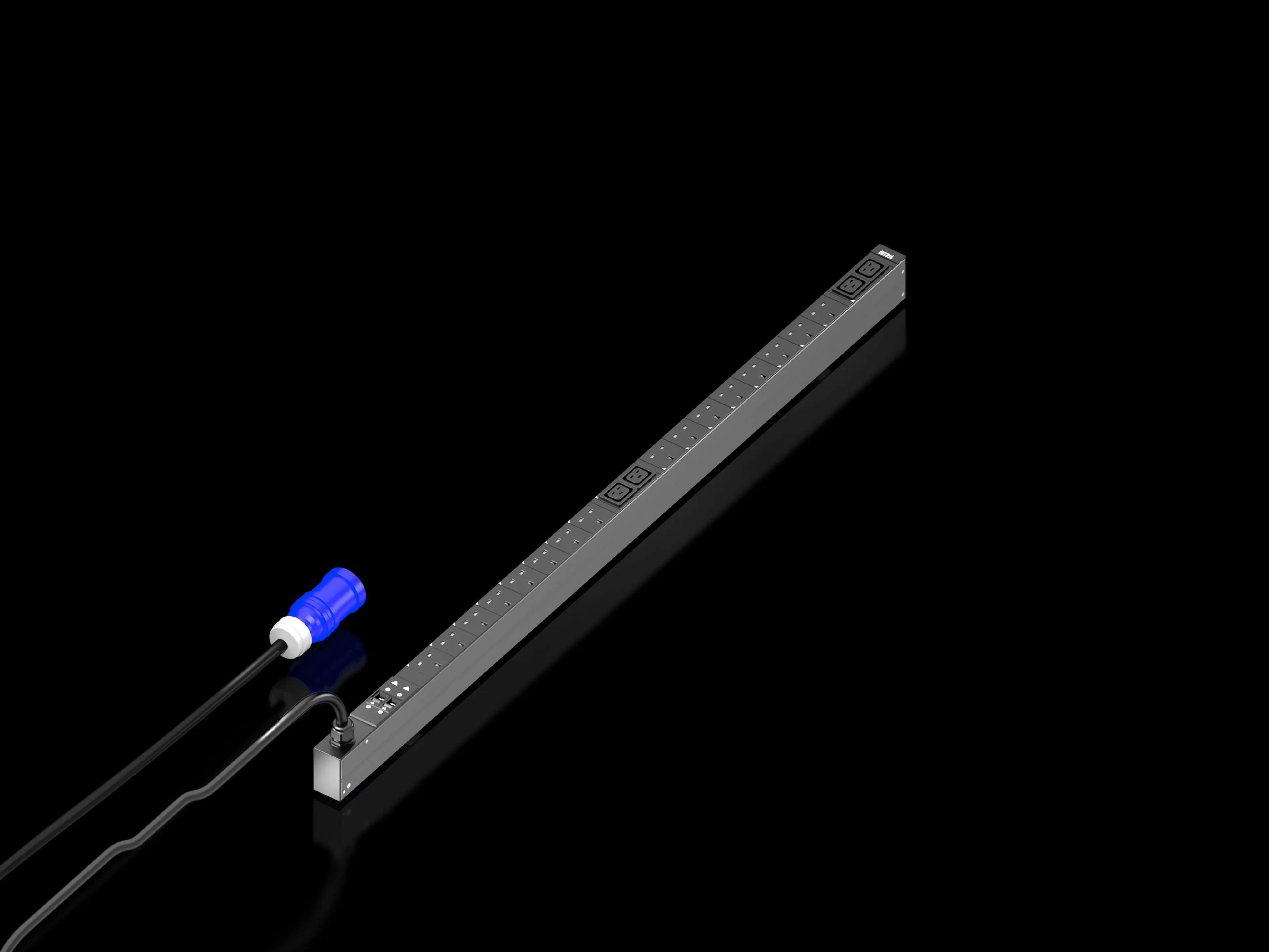

7979815 Rittal: DK PDU UK, basic, compact basic power distribution, WLD: 44x1095x70 mm, IEC 60 320: 4x C19, 16x BS 1363, 230 V, 1~, 16 A
Article number
DK 7979.815
Product description
High-end power distribution in a compact design for IT network and server racks. Depending on the design, they come with an extensive range of management functions for energy measurement and monitoring.
Benefits
Tool-free divider kit for VX IT
Technical specifications
Colour coding of phases and fuse circuits (L1=pink, L2=black, L3=white)
Material
Aluminium section, black anodised | Slots: Plastic
Supply includes
Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure |
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 1,495 mm
No. of sockets and type
16 x BS 1363 / 4 x C19
Sockets
16 x BS 1363 | 4 x C 19
Rated current (max.)
32 A
Power consumption
7.4 kW
Infeeds
Qty.: 1 | Phases per infeed: 1~
Length of connection cable
3 m
Type of electrical connection
CEE
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-25 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 1,800 mm | Enclosure type: VX IT 19" mounting angles: ≥ 1,800 mm | Enclosure type: TX CableNet: ≥ 1,800 mm
Packs of
1 pc(s).
Weight/pack
5 kg
Customs tariff number
85369095
EAN
4028177948617
ETIM 9
EC000330
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
DK PDU UK, basic, compact basic power distribution, WLD: 44x1095x70 mm, IEC 60 320: 4x C19, 16x BS 1363, 230 V, 1~, 16 A
Feature: Aluminium section, black anodised frame with plastic slots provides a durable, corrosion-resistant housing that fits slim IT racks. Benefit: Improves reliability in harsh data-center environments while optimizing space usage, enabling more efficient rack layouts. Application: Ideal for dense IT enclosures in data centers and server rooms that demand both strength and compact form factor. Feature: 44 mm width, 70 mm depth, 1,495 mm length with 16 x BS 1363 and 4 x C19 outlets. Benefit: Flexible, multi-type connectivity supports mixed equipment footprints and power requirements without adapters. Application: Server, storage, and network devices in mix-gear racks, with straightforward cable management. Feature: 32 A rated current and 7.4 kW power capacity. Benefit: Safe, scalable power distribution for critical IT loads, reducing overload risk and improving uptime. Application: Data-center core power distribution minimizing risk during peak IT activity. Feature: Infeed is 1 × 1~ with a 3 m CEE connection cable. Benefit: Simplifies installation and routing from standardUK/Cee outlets, reducing field wiring time. Application: Rack-internal power feed for VX IT enclosures and standalone frames. Feature: Options include Type 3 overvoltage protection with interchangeable arresters and status monitoring. Benefit: Enhanced protection against transients with operable protection modules, improving resilience. Application: Critical IT power rails that require proactive fault isolation within PDU enclosures. Feature: Energy management and monitoring options enable energy measurement and tracking. Benefit: Supports capacity planning, cost optimization, and compliance reporting. Application: IT infrastructure monitoring programs and energy-aware data-center optimization.
Get a Quick Quote for a Rittal 7979815
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979815?
Enquire Now
FAQs
The DK 7979.815 PDU UK is a compact power distribution unit designed for data centers and IT racks. It provides 16 BS 1363 outlets and 4 C19 sockets, with a 32 A rating, enabling reliable power distribution for servers, storage, and networking gear in VX IT enclosures.
This unit features 16 x BS 1363 outlets and 4 x C19 outlets, accommodating common UK plug types alongside IT-grade C19 devices. The distribution supports up to 32 A total current and up to 7.4 kW of load capacity, suitable for mixed IT deployments.
The PDU UK complies with EN 62368-1 and the EMC Directive 2014/30/EU, with CE marking for safety and interoperability. These certifications help ensure regulatory compliance in data-center installations and ease integration into compliant IT environments.
Yes, the DK PDU UK is designed for VX IT enclosure frames and supports integration with a tool-free divider kit, enabling faster assembly and flexible channeling within VX IT racks. The 3 m feed cable and standard CEE connection simplify on-site wiring.
Beyond delivering power, the DK 7979.815 supports energy monitoring options that enable visibility into energy use, capacity planning, and potential cost reductions. This helps IT teams maintain uptime while optimizing power efficiency and asset utilization.
