Rittal DK 7979.822 PDU UK metered - EN 62368-1
Part Number: 7979822
Manufacturer
Rittal
Part number
7979822
Category
Alt Part Number
DK 7979.822
Quick Summary

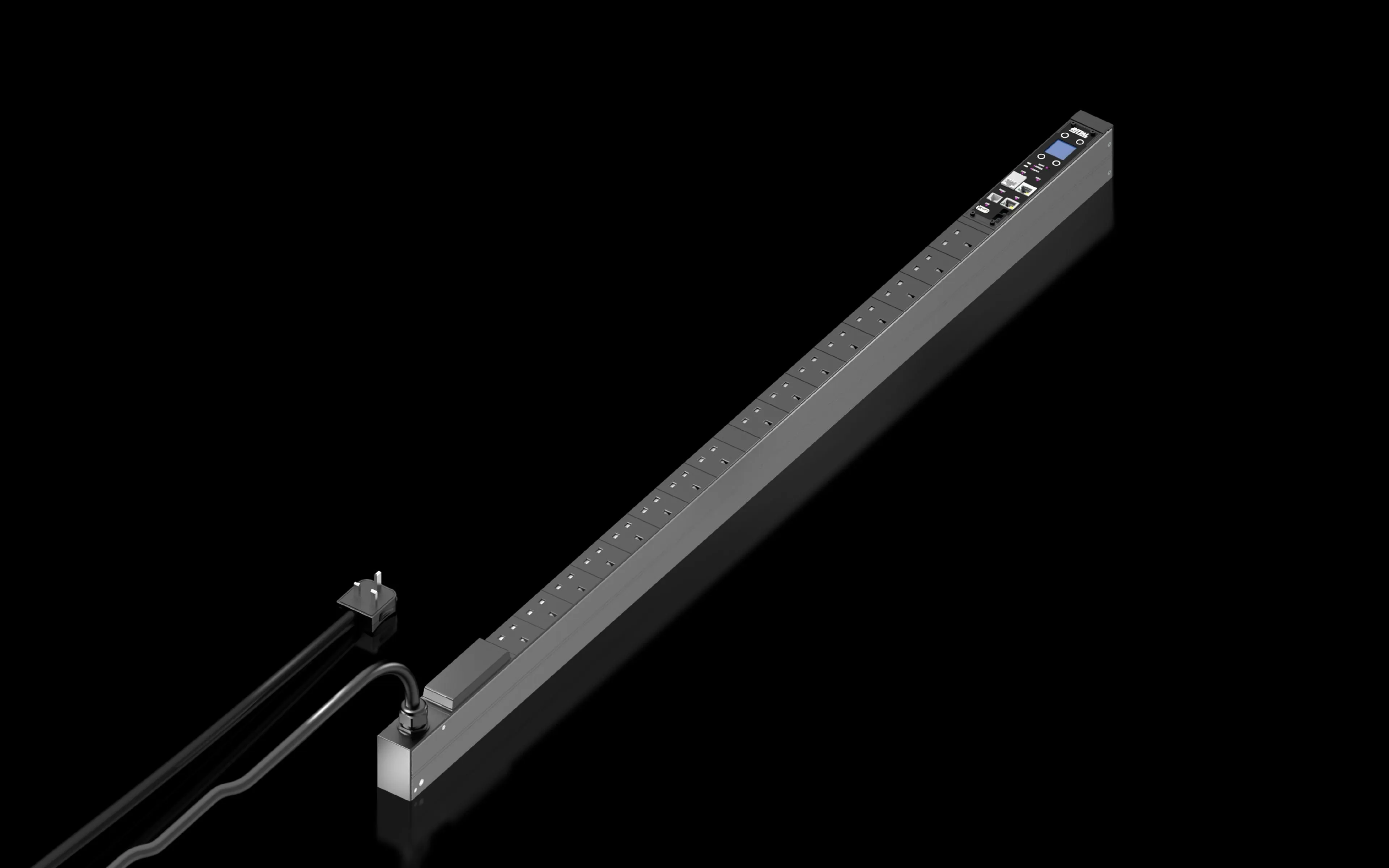

Rittal PDU UK metered delivers compact, per-phase energy measurement for IT racks and data centers. In busy environments, lack of visibility into power draw slows deployment and can trigger unplanned downtime. It carries CE marking and adheres to EMC Directive 2014/30/EU and EN 62368-1 safety standards, ensuring regulatory compliance across global sites. With network access, a built-in display, and scalable VX IT enclosure compatibility, it supports proactive energy management and accurate chargeback. This combination translates to reduced energy waste, easier capacity planning, and smoother rack provisioning for IT teams and data center operators.
Product Information
Extended Description
7979822 Rittal: DK PDU UK, metered, compact basic power distribution incl. energy measurement per phase, with network interface and display, WLD: 44 x1495 x70 mm, 16xBS 1363, IEC 60 320: 4x C19
Article number
DK 7979.822
Design
482.6 mm (19") version
Product description
High-end power distribution in a compact design for IT network and server racks. Depending on the design, they come with an extensive range of management functions for energy measurement and monitoring.
Benefits
Tool-free divider kit for VX IT
Technical specifications
Colour coding of phases and fuse circuits (L1=pink, L2=black, L3=white)
Product modification
Minimum order volume 5 units
Material
Aluminium section, black anodised | Slots: Plastic
Supply includes
Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | CMC III CAN bus sensors may be connected for ambient monitoring, max. 16 sensors
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 1,495 mm
No. of sockets and type
16 x BS 1363 / 4 x C19
Sockets
16 x BS 1363 | 4 x C 19
Rated current (max.)
16 A
Power consumption
3.7 kW
Infeeds
Qty.: 1 | Phases per infeed: 1~
Length of connection cable
3 m
Type of electrical connection
CEE
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-25 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 1,800 mm | Enclosure type: VX IT 19" mounting angles: ≥ 2,000 mm
Packs of
1 pc(s).
Customs tariff number
85369095
EAN
4028177948631
ETIM 9
EC000330
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
DK PDU UK, metered, compact basic power distribution incl. energy measurement per phase, with network interface and display, WLD: 44 x1495 x70 mm, 16xBS 1363, IEC 60 320: 4x C19
Energy measurement per phase with a dedicated display and network interface delivers real-time visibility into load distribution, enabling accurate chargeback and proactive capacity planning for IT environments. The business impact is clear: reduced energy waste, better cooling alignment, and predictable power budgeting for data centers employing per-phase analytics in a unified monitoring stack. The DK 7979.822 is ideal for server racks, IT cabinets, and VX IT enclosures, where dependable energy data supports automated reporting and compliance audits. 16x BS 1363 sockets plus 4x C19 outlets provide flexible loading for diverse IT equipment, while maintaining orderly cable management and space efficiency in dense rack rows. The design aligns with VX IT frames for fast, tool-free upgrades and scalable deployments. Optional Type 3 overvoltage protection with interchangeable arresters adds layer of asset protection and status monitoring to meet rising reliability demands. CAN bus sensor compatibility for ambient monitoring further strengthens environmental control, reducing unplanned downtime. With a minimum order quantity of five units, project-scale deployments can be planned without single-unit bottlenecks, delivering predictable procurement. Overall, the PDU integrates energy metering, network visibility, and rugged IT-ready construction to support compliant, efficient data center power management.
Get a Quick Quote for a Rittal 7979822
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979822?
Enquire Now
FAQs
Install by mounting in the VX IT enclosure frame or standard 19-inch rails using the supplied assembly parts. Connect the single-phase 16 A input via the CEE connector and route loads to the 16 BS1363 and 4 C19 outlets. Then attach the network interface and verify phase color coding for accurate energy monitoring.
The PDU provides per-phase energy measurement with a built‑in display and a network interface. You can view real-time phase power, total load, and trends, or export data to your energy management system. Optional CAN bus sensors enable ambient monitoring, enhancing environmental control in data centers.
Yes. It supports 16x BS1363 sockets and 4x C19 outlets, designed for VX IT enclosure frames and 19" mounting. Dimensions are 44 mm wide, 70 mm deep, and 1,495 mm long, with mounting options for VX IT frames ≥1,800 mm and 19" angles ≥2,000 mm, ensuring a secure fit in standard IT installations.
The PDU complies with EMC Directive 2014/30/EU and carries CE marking, along with EN 62368-1 safety certification. These standards support global deployments and safe operation in IT environments, simplifying regulatory alignment for data center projects and cross-border rollouts.
Energy visibility enables precise chargeback, load balancing, and reduced waste, delivering faster payback. The unit relies on robust assembly parts and has minimal maintenance requirements. For project-scale purchases, a minimum order of five units helps stabilize procurement and installation scheduling, reducing lifecycle disruption in growing data centers.
