Rittal SK 7980.000 DK Fan expansion kit - 230 V 1~, 50/60 Hz
Part Number: 7980000
Quick Summary
DK Fan expansion kit enables stand-alone cooling for Rittal enclosures. Without proper cooling, thermal stress can shorten component life and increase downtime. This solution aligns with ETIM EC000320 and ECLASS 27180716 classifications to streamline procurement in industrial environments. In addition to reliable cooling, the kit delivers energy-efficient operation with 14–15 W power consumption and a compact footprint (119x119x38 mm), making retrofits straightforward on existing fan mounting plates and enabling scalable enclosure cooling across multiple systems. Designed for 230 V, 1~, and 50/60 Hz, it supports both 50 Hz and 60 Hz applications while maintaining noise levels at 37 dB(A). The value proposition includes easier maintenance, reduced energy costs, and predictable performance in harsh industrial environments.
Product Information
Extended Description
7980000 Rittal: DK Fan expansion kit, for use as a stand-alone fan, and for upgrading various fan units or to supplement the fan mounting plate, WxHxD: 119x119x38 mm, 230 V, 1 ~, 50/60 Hz
Article number
SK 7980.000
Product description
For use as a stand-alone fan, and for upgrading various fan units or to supplement the fan mounting plate.
Supply includes

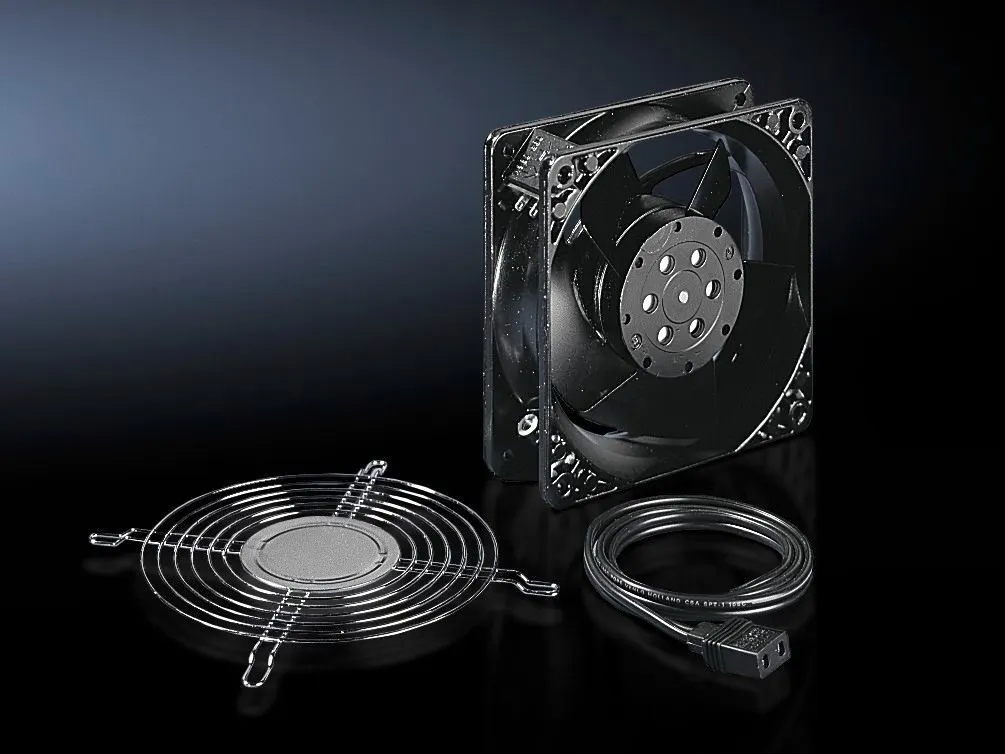

Fan | Connection cable (0.61 m) | Assembly parts
Air throughput, unimpeded airflow (with chopped-fibre filter)
At 50 Hz: 160 m³/h | At 60 Hz: 180 m³/h
Rated operating voltage
230 V, 1~, 50 Hz/60 Hz
Power consumption Pel
At 50 Hz: 15 W | At 60 Hz: 14 W
Dimensions
Width: 119 mm | Height: 119 mm | Depth: 38 mm
Operating temperature range
-10 °C...55 °C
Noise level
At 50 Hz: 37 dB(A) | At 60 Hz: 37 dB(A)
Weight/pack
0.67 kg
Packs of
1 pc(s).
Customs tariff number
84149000
EAN
4028177137752
ETIM 9
EC000320
ECLASS 8.0
27180716
Product description
DK Fan expansion kit, for use as a stand-alone fan, and for upgrading various fan units or to supplement the fan mounting plate, WxHxD: 119x119x38 mm, 230 V, 1 ~, 50/60 Hz
Air throughput is 160 m³/h at 50 Hz and 180 m³/h at 60 Hz, enabling robust thermal management. This translates to lower enclosure temperatures, reduced thermal stress on electronics, and higher system uptime when retrofitting or upgrading fan units. The kit consumes only 15 W at 50 Hz and 14 W at 60 Hz, delivering energy-efficient operation that lowers lifetime running costs and minimizes additional heat in confined panels. Its compact 119 × 119 × 38 mm footprint and 0.67 kg weight simplify integration into existing mounting plates without major modifications, enabling scalable cooling across multi-panel configurations. A 37 dB(A) noise level keeps operator environments comfortable while preserving process visibility. Included components—fan, 0.61 m connection cable, and assembly parts—reduce procurement lead time and simplify installation. Operating temperature range of -10 °C to 55 °C supports reliable performance in harsh environments. Classification data ETIM EC000320 and ECLASS 8.0 27180716 aid purchasing systems in aligning with internal data models.
Get a Quick Quote for a Rittal 7980000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7980000?
Enquire Now
FAQs
The kit is designed for stand-alone use and for upgrading various fan units on existing fan mounting plates. With dimensions of 119x119x38 mm and a 0.61 m connection cable, it fits standard Rittal mounting patterns and simplifies retrofits without major modifications. It supports 230 V, 1~, 50/60 Hz operation, enabling quick integration across multiple enclosure configurations.
At 50 Hz, the fan delivers up to 160 m³/h of airflow with a power draw of 15 W and noise of 37 dB(A). At 60 Hz, airflow increases to 180 m³/h with a reduced power draw of 14 W and the same 37 dB(A) noise level. This enables flexible cooling to match your process or ambient temperature while controlling energy use.
The provided data emphasizes electrical specifications, airflow and mounting details, and ETIM/ECLASS classifications, but specific CE marking or IP ratings are not listed. For procurement and compliance planning, reference ETIM EC000320 and ECLASS 27180716; confirm with Rittal or the supplier for any regulatory endorsements required for your installation.
The SK 7980.000 kit includes the fan unit, a 0.61 m connection cable, and assembly parts, simplifying installation. Its compact size (119x119x38 mm) and weight (0.67 kg) ease mounting on standard plates, while the voltage and frequency specifications (230 V, 1~, 50/60 Hz) ensure compatibility with common electrical cabinets and enclosure cooling schemes.
Benefiting from lower running power (14–15 W) and consistent 37 dB(A) noise, the retrofit minimizes energy costs and supports longer component life by improving thermal management. The included cabling and assembly parts reduce downtime, while the compact form factor allows scalable upgrades across several enclosures, delivering predictable maintenance and a faster payback in steady-state operation.
