Rittal 7980100 DK Fan Expansion Kit - 230 V 1~, 50/60 Hz
Part Number: 7980100
Quick Summary
Rittal 7980100 DK Fan Expansion Kit is a compact retrofit solution for adding or upgrading stand-alone cooling fans in enclosure applications. Engineers often struggle with space constraints and compatibility when retrofitting existing fan mounts, leading to longer downtime and inconsistent performance. The data references ETIM 9 EC000320 and ECLASS 8.0 27180716 to ensure digital interoperability, while CE/SIL/IP certifications are not specified and should be verified for compliance. Designed for 230 V single-phase operation and a 119x119x25 mm footprint, the kit delivers predictable airflow and energy efficiency, supporting faster installation and reduced lifecycle costs. Using this kit helps procurement teams standardize cooling solutions and simplifies maintenance across multiple enclosure models.
Product Information
Extended Description
7980100 Rittal: DK Fan expansion kit, for use as a stand-alone fan, and for upgrading various fan units or to supplement the fan mounting plate, WxHxD: 119x119x25 mm, 230 V, 1 ~, 50/60 Hz
Article number
SK 7980.100
Product description
For use as a stand-alone fan, and for upgrading various fan units or to supplement the fan mounting plate.
Supply includes

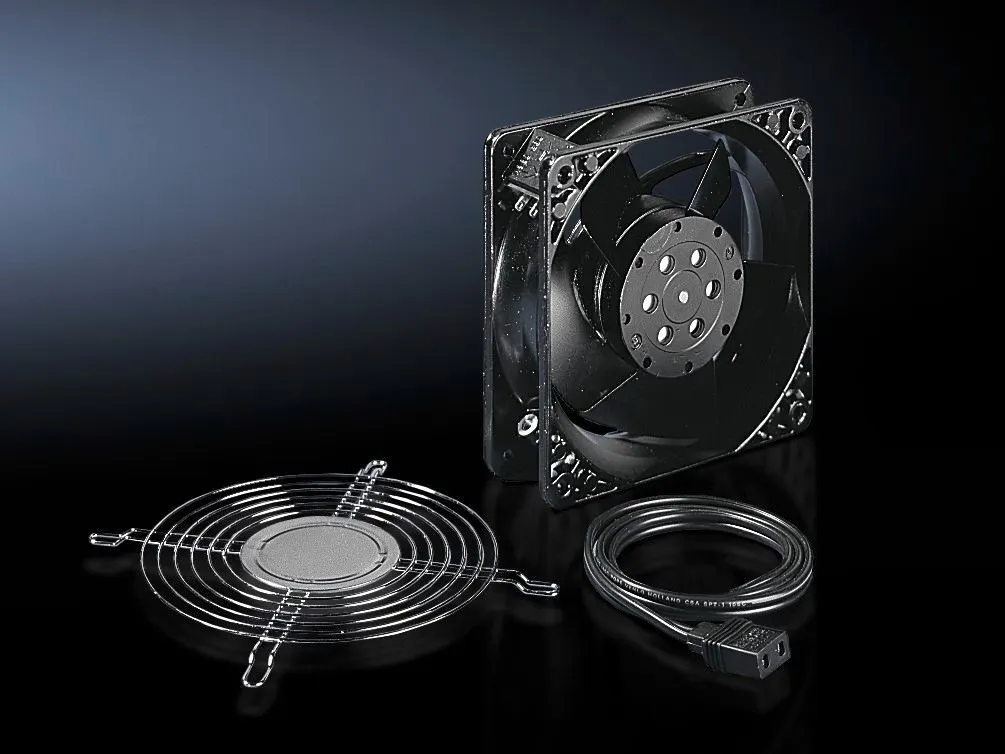

Fan | Connection cable (0.61 m) | Assembly parts
Air throughput, unimpeded airflow (with chopped-fibre filter)
At 50 Hz: 108 m³/h | At 60 Hz: 120 m³/h
Rated operating voltage
230 V, 1~, 50 Hz/60 Hz
Power consumption Pel
At 50 Hz: 14 W | At 60 Hz: 12 W
Dimensions
Width: 119 mm | Height: 119 mm | Depth: 25 mm
Operating temperature range
-20 °C...70 °C
Noise level
At 50 Hz: 34 dB(A) | At 60 Hz: 34 dB(A)
Weight/pack
0.486 kg
Packs of
1 pc(s).
Customs tariff number
84149000
EAN
4028177187313
ETIM 9
EC000320
ECLASS 8.0
27180716
Product description
DK Fan expansion kit, for use as a stand-alone fan, and for upgrading various fan units or to supplement the fan mounting plate, WxHxD: 119x119x25 mm, 230 V, 1 ~, 50/60 Hz
Feature: Compact form factor (WxHxD 119x119x25 mm) → Business Impact: Enables retrofitting in tight enclosures without redesigning mounting plates → Application: Upgrade or install in confined electrical cabinets, reducing enclosure footprint. Feature: 230 V single-phase operation (50/60 Hz) and low power draw (14 W at 50 Hz, 12 W at 60 Hz) → Business Impact: Lower energy consumption and operating costs over the device lifecycle → Application: Continuous cooling in critical enclosures with minimal energy impact. Feature: Airflow performance (108 m³/h at 50 Hz; 120 m³/h at 60 Hz) with chopped-fibre filter → Business Impact: Maintains electronics cooling and reduces hotspot risk while preserving enclosure integrity → Application: Data centers, control panels, and factory automation cabinets. Feature: Includes fan, 0.61 m connection cable, and assembly parts → Business Impact: Faster on-site installation and reduced parts sourcing time → Application: Turnkey retrofits and quick upgrades across multiple SKUs. Feature: Operating temperature range -20 °C to 70 °C and noise level 34 dB(A) → Business Impact: Reliable performance in harsh environments with minimal acoustic impact → Application: Industrial environments requiring quiet yet effective cooling. Feature: Weight 0.486 kg and packaging as single pack → Business Impact: Easy handling and scalable procurement for large rollouts → Application: Standardized stocking and predictable logistics for maintenance teams.
Get a Quick Quote for a Rittal 7980100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7980100?
Enquire Now
FAQs
Yes. The kit is designed for use as a stand-alone fan or to upgrade and supplement existing fan mounting plates, and it includes a fan, a 0.61 m connection cable, and assembly parts to streamline installation across compatible Rittal enclosures.
At 50 Hz the kit delivers 108 m³/h of unimpeded airflow with a chopped-fibre filter, while at 60 Hz it provides 120 m³/h. This performance supports efficient cooling of enclosure electronics and helps prevent hotspots in demanding environments.
The kit operates at 230 V, 1~, 50/60 Hz, with power consumption of 14 W at 50 Hz and 12 W at 60 Hz. It measures 119 mm in width and height, with a depth of 25 mm, and weighs 0.486 kg, facilitating straightforward integration into existing systems.
The provided data does not specify CE, SIL, or IP ratings. It does reference ETIM 9 EC000320 and ECLASS 8.0 27180716 for interoperability. For regulatory compliance, confirm with the supplier or Rittal to obtain the latest certification details applicable to your region.
The supply includes the fan itself, a 0.61 m connection cable, and assembly parts. Packaging is 1 piece per pack, with a total weight of 0.486 kg, simplifying inventory and replacement planning for maintenance teams.
