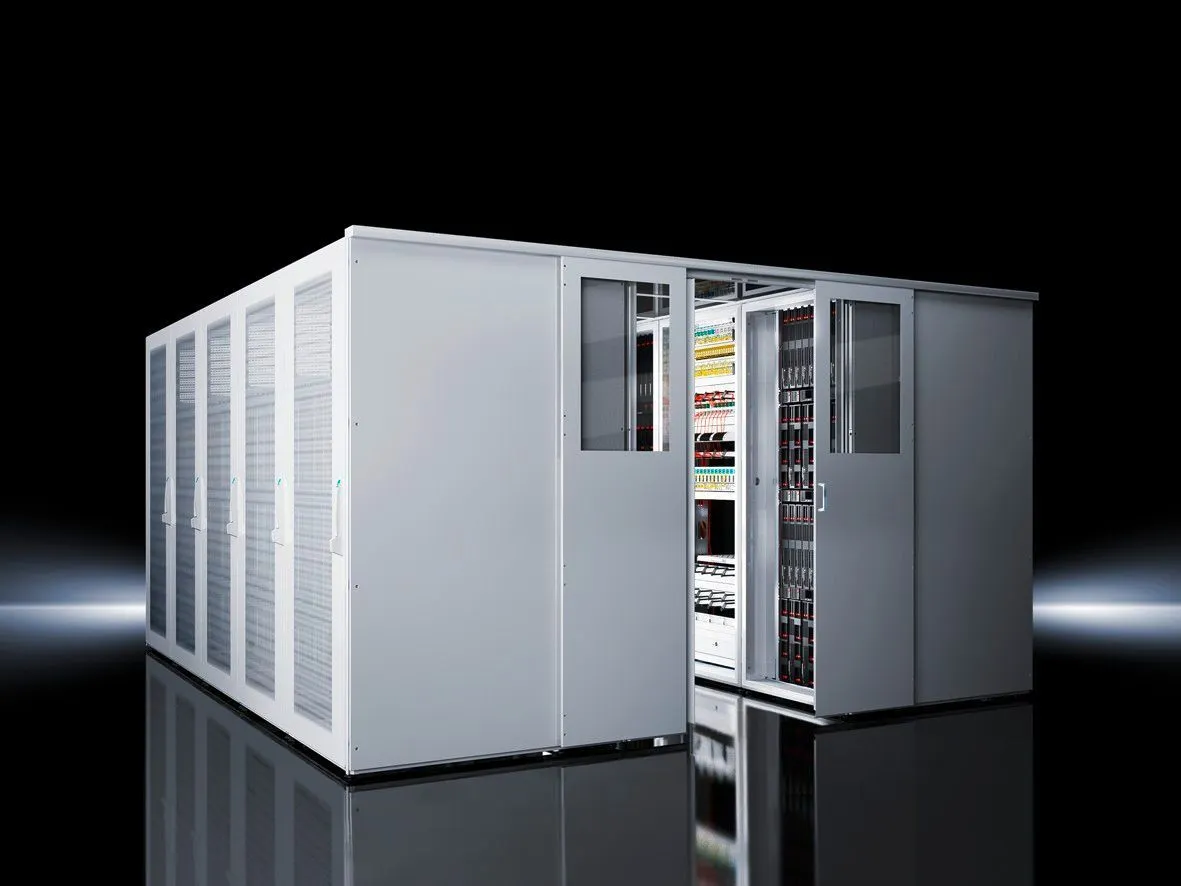

Rittal SK 7999.922 Aisle Containment - Individual project planning
Part Number: 7999922
Quick Summary
Rittal SK 7999.922 Aisle containment is a data center air- seperation solution that improves cooling efficiency by isolating hot and cold aisles. This approach helps address rising energy costs and uneven climate control caused by mixed airflow. The design references ETIM EC002525 and ECLASS 27182102, aligning with modern maintenance and procurement processes. By enabling precise airflow management, it supports measurable reductions in chiller load while sustaining performance. The system integrates with CRAC and LCP Inline configurations, delivering scalable, compliant cooling and a clearer path to future room expansion. Secondary benefits include easier monitoring, better service access, and consistent environmental conditions across densely populated racks.
Product Information
Extended Description
7999922 Rittal: SK Aisle containment, individual project planning only
Article number
SK 7999.922
Design
Individual project planning only
Product description
Slimline door element with viewing window and sliding door. Stable roof elements in a composite material with a high level of light permeability. Where required, safety glass may also be used. The aisle width is 1,200 mm.
Benefits
Increased energy efficiency and performance capability of climate control
Applications
Depending on the application, aisle containment may be used with CRAC systems or LCP Inline as hot or cold aisle containment
Function principle
Aisle containment is a combination of door and roof components which facilitate consistent separation of the hot and cold air in the data centre. Such separation is pivotal to saving energy and increasing the efficiency of the available climate control technology.
Material
Sheet steel, spray-finished | Roof elements: Polycarbonate
Colour
RAL 7035
Note
null
Packs of
1 pc(s).
Customs tariff number
73089059
EAN
4028177717107
ETIM 9
EC002525
ECLASS 8.0
27182102
Product description
SK Aisle containment, individual project planning only
Feature → Business Impact → Application: Slimline door element with viewing window and sliding door enables rapid access while maintaining a continuous air barrier, reducing hot-air short-circuiting and lowering energy usage in data centers. This directly improves climate-control performance and reduces oper cost. Application-wise, the design supports hot or cold aisle containment with CRAC systems or LCP Inline, making it ideal for mid to large-scale deployments. Feature → Business Impact → Application: Roof elements in a composite material with high light permeability and optional safety glass improve visibility for maintenance crews, enabling safer, faster interventions and reducing downtime risk. This is particularly valuable in busy data centers with limited floor space and high uptime requirements. Feature → Business Impact → Application: Material choice of sheet steel with spray finish and polycarbonate roof delivers durability and low maintenance while providing a visually clean, color-consistent appearance in RAL 7035, supporting long-term lifecycle costs. Feature → Business Impact → Application: Aisle width of 1,200 mm standardizes cabling and rack layouts, simplifying installation, reducing custom engineering time, and enabling repeatable deployments across multiple rooms, budgets permitting. Feature → Business Impact → Application: Packs of 1 pc(s) streamline procurement and on-site stocking, supporting modular expansion and faster project scoping.
Get a Quick Quote for a Rittal 7999922
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7999922?
Enquire Now
FAQs
Installation starts with aligning the 1,200 mm aisle width to your rack layout, followed by positioning the slimline door element and roof components to form a continuous barrier. The system is designed for modular assembly and works with CRAC or LCP Inline cooling units, ensuring a reliable hot or cold aisle containment setup.
Expect improved cooling efficiency due to reduced hot-air recirculation, lower chiller load, and more stable inlet temperatures for IT equipment. The viewing window and durable materials also support safer maintenance and longer-term uptime with consistent environmental conditions.
Yes. The design supports hot aisle containment in collaboration with CRAC units, helping to concentrate cooled air where it’s needed and reducing energy consumption while maintaining serviceability and airflow control.
The solution aligns with ETIM 9 EC002525 and ECLASS 8.0 27182102 classifications, facilitating procurement and data exchange. The system uses durable sheet steel and polycarbonate roof elements, with color specified as RAL 7035 for consistent facility aesthetics.
ROI benefits stem from lower cooling energy use and improved equipment uptime. Maintenance is simplified by durable materials and a modular design that supports quick component access, reduced service time, and straightforward expansion as data-center needs grow.
