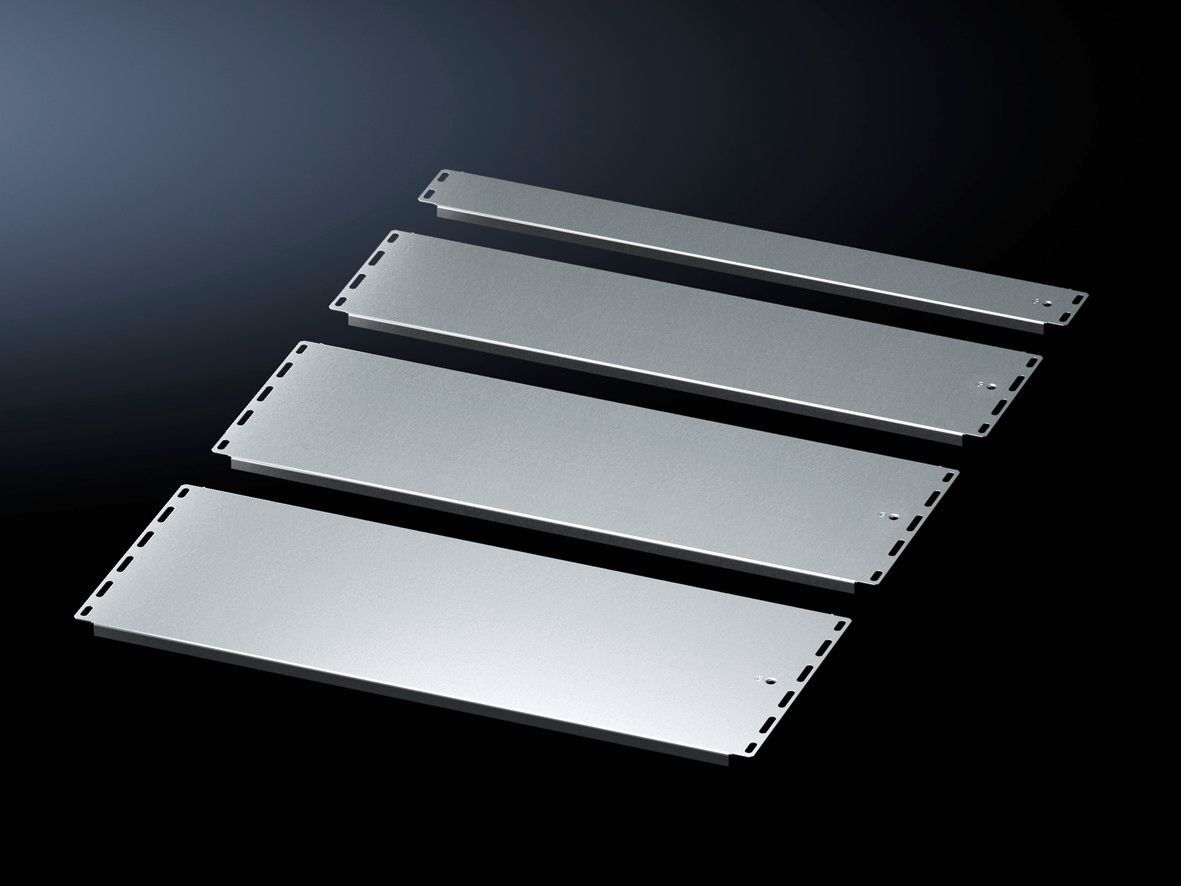

Rittal VX 8001.210 Gland Plate - Zinc-Plated UL Listed
Part Number: 8001210
Quick Summary
The Rittal VX 8001.210 gland plate configures enclosure floor space for VX series. When base openings aren’t sealed correctly, dust ingress and uneven grounding threaten safety and reliability. UL Listed for safety and compatibility, this accessory aligns with regional requirements, while procurement and interoperability are supported by ETIM EC002620 and ECLASS 27189261 mappings. It delivers reliable potential equalisation via assembly components and earthing points, helping maintain consistent ground references across configurations. By enabling custom spacing and faster installation, it translates to reduced commissioning time, lower rework rates, and improved service life for panel builders and OEMs. Secondary benefits include straightforward sourcing and scalable use in multi-enclosure installations.
Product Information
Extended Description
8001210 Rittal: VX Gland plate, WD: 600x75 mm
Article number
VX 8001.210
Product description
For individual configuration of the floor space. Potential equalisation is achieved via assembly components and earthing points.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Note
At least one sliding plate is required to fully seal a base opening.
Dimensions
Width:Â 490 mm | Depth:Â 75 mm
To fit
Enclosure type:Â VX | VX IT | VX SE | CX one-piece console | CX pedestal | Width:Â = 600 mm
Packs of
1 pc(s).
Weight/pack
0.76 kg
Customs tariff number
73269098
EAN
4028177948655
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
VX Gland plate, WD: 600x75 mm
Feature → Business Impact → Application: Gland plate construction uses sheet steel with a zinc-plated finish and a WD 600x75 mm footprint, delivering a robust mounting base. This stability enables reliable potential equalisation via earthing points and a clean, repeatable grounding path. Application: ideal for configuring floor space in VX enclosures and CX configurations where base openness must be managed without compromising accessibility or serviceability. Feature → Business Impact → Application: Dimensions and fitment include a 490 mm width and 75 mm depth, aligning with 600 mm wide VX base openings for predictable assembly. This compatibility reduces installation time and minimizes field modifications. Application: VX, VX IT, VX SE, CX console and pedestal setups. Feature → Business Impact → Application: Supply includes assembly parts, so installers have the necessary hardware on hand, eliminating sourcing delays. Weight per pack is 0.76 kg with 1 piece per pack, supporting lean inventory and easier handling. Application: single- and multi-enclosure projects with standard VX widths. Feature → Business Impact → Application: Note states that at least one sliding plate is required to fully seal a base opening, guarding against dust ingress and ensuring grounding integrity. Application: maintains long-term enclosure reliability in harsh environments.
Get a Quick Quote for a Rittal 8001210
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8001210?
Enquire Now
FAQs
The VX 8001.210 gland plate is designed to fit VX, VX IT, VX SE enclosures and CX configurations up to a 600 mm width, including CX one-piece consoles and CX pedestals. The product supports predictable base setups and straightforward field integration in multi-enclosure projects.
This gland plate provides a defined mounting surface with assembly components and earthing points that enable a consistent grounding path, reducing ground loop risks and EMI exposure. It simplifies grounding across VX configurations, improving reliability in control panels and industrial cabinets.
The product is UL Listed, confirming a recognized safety certification. CE compliance depends on regional requirements and installation specifics; verify local regulations and add any required controls or accessories to meet your exact CE obligations.
Important notes: ensure at least one sliding plate is used to fully seal a base opening, and include the supplied assembly parts during installation. Dimensions are 490x75 mm with a 600x75 mm footprint, and the pack contains 1 piece at 0.76 kg for efficient handling.
Using the gland plate reduces commissioning time, minimizes rework by providing a ready-made grounding path, and simplifies sourcing with a single part for multiple VX configurations. That translates to lower labor costs and faster project delivery in panel shops and OEM environments.
