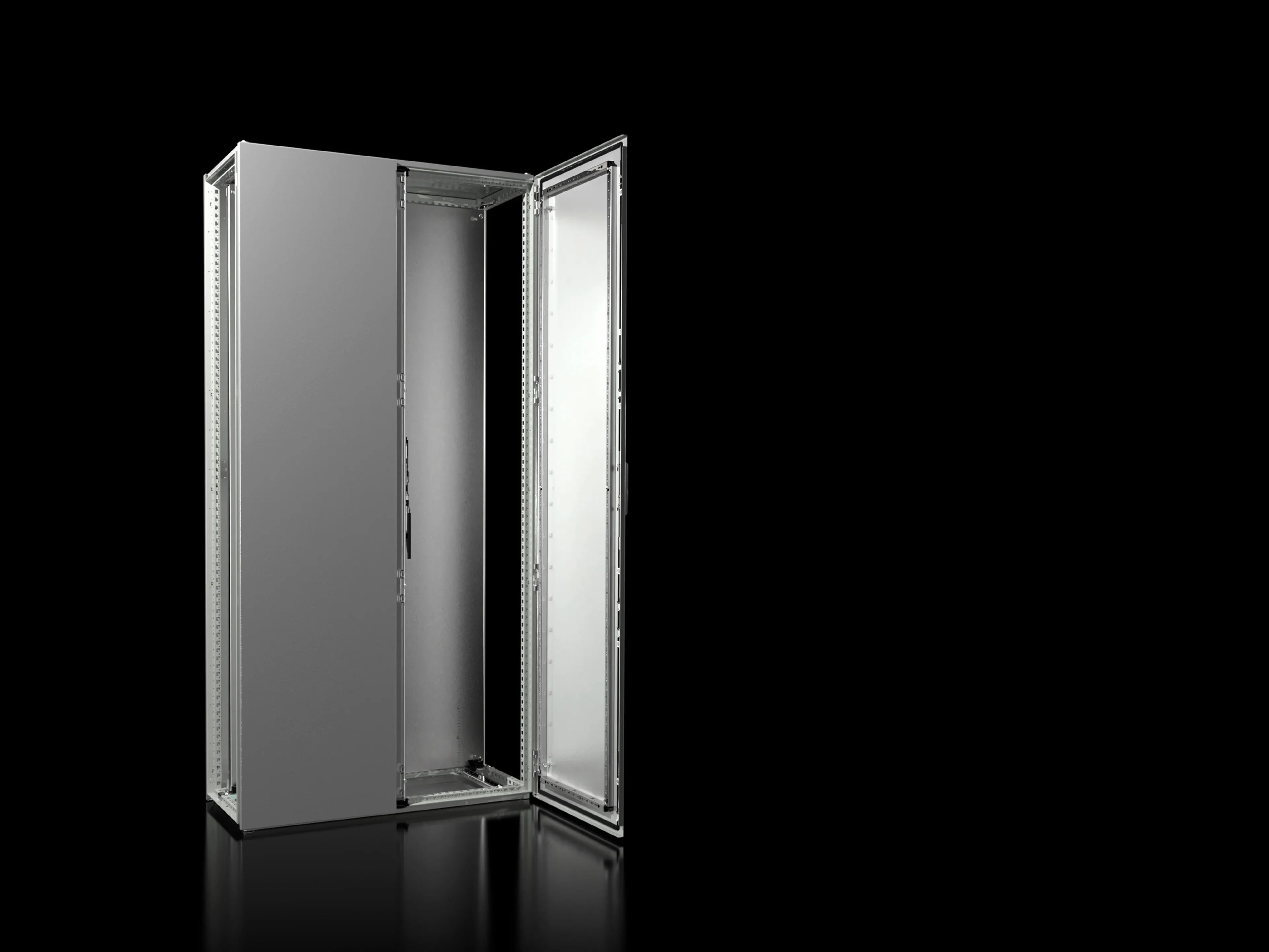

Rittal VX 8004.000 Enclosure System - IP55
Part Number: 8004000
Manufacturer
Rittal
Part number
8004000
Alt Part Number
VX 8004.000
Quick Summary
Rittal VX 8004.000 Enclosure System is a robust housing for industrial control panels and electrical infrastructure. Engineers often struggle with space, mounting flexibility, and protecting sensitive electronics in harsh environments. This enclosure meets IP55 weather protection, IK10 impact resistance, and UL 50E Type 1 compliance, with NEMA 1 suitability for non-hazardous indoor settings. Its practical interior layout and configurable door orientation streamline interior installation, while the powder-coated finish and standardized dimensions deliver reduced maintenance and total cost of ownership over the equipment lifecycle. The system also supports efficient interior installation and compatibility with common automation components.
Product Information
Extended Description
8004000 Rittal: VX Baying enclosure system, WHD: 1000x2000x400 mm, sheet steel, with mounting plate, two doors at the front
Article number
VX 8004.000
Material
Enclosure frame: Sheet steel, 1.5 mm | Roof: Sheet steel, 1.5 mm | Door: Sheet steel, 2.0 mm | Rear panel: Sheet steel, 1.5 mm | Gland plates: Sheet steel, 1.5 mm | Mounting plate: Sheet steel, 3.0 mm
Surface finish
Enclosure frame: Dipcoat-primed | Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint | Mounting plate and gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure frame | Door(s) | Door hinged on the right, may be swapped to the left | Roof plate | Rear panel | Gland plates | Mounting plate | 2 punched rails 18 x 39 mm | Lock: 3 mm double-bit
Dimensions
Width: 1,000 mm | Height: 2,000 mm | Depth: 400 mm
Dimensions mounting plate (W x H)
899 mm x 1,896 mm
Protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 1
Type rating to UL 50E
Type 1
IK Code
IK10
Number of doors
2
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
152 kg
PCF per pack (cradle-to-gate)
374.5 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177813526
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
VX Baying enclosure system, WHD: 1000x2000x400 mm, sheet steel, with mounting plate, two doors at the front
Feature → Business Impact → Application: Enclosure frame with two front doors, rear panel, mounting plate, and roof plate enables a complete, ready-to-install interior; this reduces assembly time and risks during panel build and commissioning in automated lines. Application: machine control cabinets where rapid wiring and secure component mounting are crucial. Feature → Business Impact → Application: WHD 1000x2000x400 mm footprint provides a widely used industry standard for large control assemblies;Benefit: optimizes space planning and simplifies rack integration in factory floors. Application: process automation panels that require generous interior space. Feature → Business Impact → Application: Sheet steel construction with varied thickness across components delivers rigidity and EMI shielding;Benefit: durable protection against mechanical and electrical stresses in harsh environments. Application: outdoor and indoor industrial installations with high reliability needs. Feature → Business Impact → Application: IP55, IK10, UL Type 1, and NEMA 1 compliance ensure regulatory alignment and safety;Benefit: minimizes compliance risk and accelerates project approvals. Application: equipment housing for mixed indoor/outdoor applications. Feature → Business Impact → Application: Dipcoat-primed finish with powder coating on exterior plus zinc-plated gland plates and mounting plate enhances corrosion resistance;Benefit: longer service life and lower repaint/maintenance costs. Application: long-term installations in chemical plants or humid facilities. Feature → Business Impact → Application: Left-right door orientation option by default (door can be swapped) provides installation flexibility;Benefit: eases site-specific wiring layouts and service access. Application: retrofits or multi-line installations. Feature → Business Impact → Application: Includes 2 punched rails (18 x 39 mm) for rapid component mounting;Benefit: reduces panel build time and enables standardized assembly. Application: modular automation cabinets. Feature → Business Impact → Application: Weight per pack 152 kg and PCF 374.5 kg CO2 eq (Cat B) offers insight for logistics and sustainability planning;Benefit: supports cost and environmental impact assessments. Application: supply chain and green procurement programs.
Get a Quick Quote for a Rittal 8004000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8004000?
Enquire Now
FAQs
The VX 8004.000 features two front doors hinged on the right by default, with the option to swap to the left side to match site wiring layouts. During installation, align the mounting plate to the enclosure frame, install the rear panel and gland plates, then secure the doors to the hinges. This flexibility reduces the need for additional adapters and speeds up commissioning.
VX 8004.000 provides IP55 protection against dust and water ingress and IK10 impact resistance, making it suitable for demanding industrial environments. It also carries NEMA 1 suitability and UL 50E Type 1 compliance for indoor control cabinets. This combination supports reliable operation in manufacturing floors, process lines, and light outdoor use with proper enclosure placement.
Ideal applications include large control cabinets for automated production lines, process automation cells, and machine control housings. Its 1000x2000x400 mm footprint, mounting plate, and two punched rails accommodate substantial control electronics, power supplies, and wiring, while the robust finish reduces maintenance needs in long-term automation deployments.
Key considerations include using the supplied mounting plate (899x1896 mm), leveraging the 18x39 mm punched rails for quick component mounting, and planning gland plate placement for cable management. The door orientation option helps align with site wiring, and the 152 kg per-pack weight informs handling and crane requirements during installation.
Rittal provides CE compliance and UL Type 1/UL 50E alignment for VX 8004.000, along with NEMA 1 suitability. The product reports a PCF of 374.5 kg CO2 eq (Cat B) per pack, reflecting its cradle-to-gate environmental footprint. These details support regulatory documentation and sustainability assessments in procurement.
