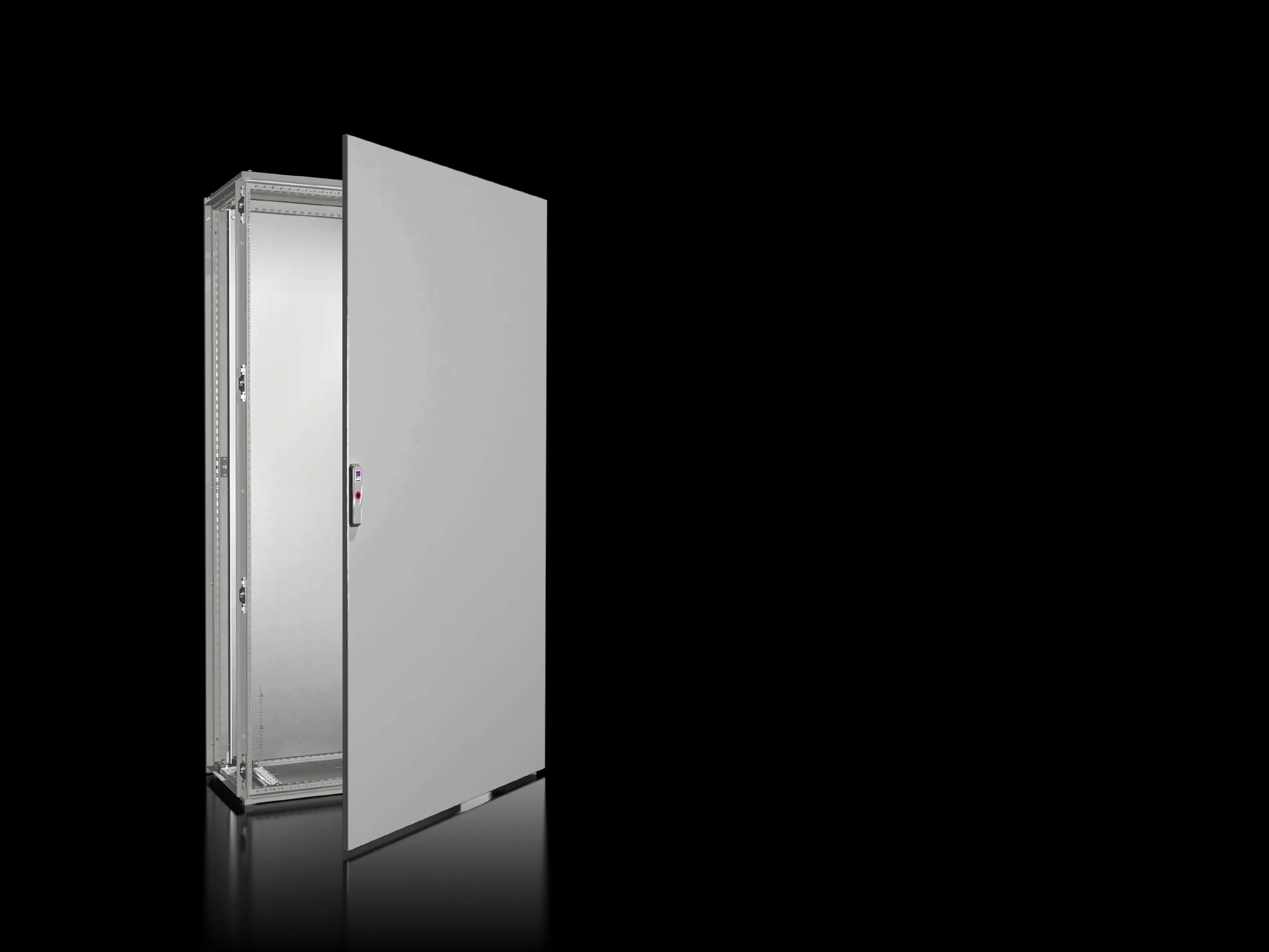

Rittal VX 8084.000 Enclosure - IP55, IK10, UL 50E
Part Number: 8084000
Manufacturer
Rittal
Part number
8084000
Alt Part Number
VX 8084.000
Quick Summary
The Rittal VX 8084.000 Enclosure protects electrical panels in industrial automation and panel-building applications. This robust cabinet is designed to simplify interior installation and maximize uptime on the factory floor. Operators often struggle with layout flexibility, accessibility, and durable coatings in harsh environments; VX 8084.000 addresses these challenges with a right-hinged door (swappable to left), a mounting plate, and a comprehensive set of gland plates. It achieves IP55 protection, IK10 impact resistance, and UL 50E Type 1/NEMA 1 compliance, providing reliable enclosure performance. The unit also offers a powder-coated exterior, zinc-plated gland plates, and a modular interior that supports DIN rails and modular accessories for scalable installations.
Product Information
Extended Description
8084000 Rittal: VX Baying enclosure system, WHD: 1000x1800x400 mm, sheet steel, with mounting plate, single door at the front
Article number
VX 8084.000
Material
Enclosure frame: Sheet steel, 1.5 mm | Roof: Sheet steel, 1.5 mm | Door: Sheet steel, 2.0 mm | Rear panel: Sheet steel, 1.5 mm | Gland plates: Sheet steel, 1.5 mm | Mounting plate: Sheet steel, 3.0 mm
Surface finish
Enclosure frame: Dipcoat-primed | Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint | Mounting plate and gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure frame | Door(s) | Door hinged on the right, may be swapped to the left | Roof plate | Rear panel | Gland plates | Mounting plate | 2 punched rails 18 x 39 mm | Lock: 3 mm double-bit
Dimensions
Width: 1,000 mm | Height: 1,800 mm | Depth: 400 mm
Dimensions mounting plate (W x H)
899 mm x 1,696 mm
Protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 1
Type rating to UL 50E
Type 1
IK Code
IK10
Number of doors
1
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
133 kg
PCF per pack (cradle-to-gate)
327.7 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94032080
EAN
4028177813656
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
VX Baying enclosure system, WHD: 1000x1800x400 mm, sheet steel, with mounting plate, single door at the front
Feature: Rugged sheet-steel construction with varied wall thicknesses. Business Impact: Delivers long-term protection against dust, water ingress, and mechanical shocks, reducing maintenance and downtime. Application: Ideal for control cabinets in manufacturing lines where reliability is critical. Feature: IP55 and IK10 rated enclosure. Business Impact: Ensures compliance with industrial safety standards while minimizing enclosure-related failures in demanding environments. Application: Suitable for interior plant rooms and semi-exposed installations. Feature: Complete interior package including mounting plate, door, rear panel, gland plates, and punched rails. Business Impact: Speeds up installation and guarantees a solid, repeatable interior layout for cable routing and component mounting. Application: Quick-start for machine builders and panel shops. Feature: Right-hinged door with left-right swap option. Business Impact: Provides installation flexibility to fit existing cabinet layouts and keeps maintenance routines straightforward. Application: Retrofit projects and modular panel designs. Feature: Powder-coated exterior with dipcoat-primed frame and zinc-plated interior components. Business Impact: Extends life-cycle, reduces corrosion risk, and lowers lifecycle costs. Application: Environments with temperature cycling and exposure to humidity. Feature: Dimensions and mounting compatibility including 1,000 × 1,800 × 400 mm footprint and mounting plate 899 × 1,696 mm. Business Impact: Enables precise space planning and straightforward integration with standard DIN rails and accessories. Application: Industrial automation cabinets and process equipment housings.
Get a Quick Quote for a Rittal 8084000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8084000?
Enquire Now
FAQs
The VX 8084.000 ships with a mounting plate and two punched rails, plus a door that can hinge on the right or be swapped to the left. Its 1000x1800x400 mm footprint and mounting plate, 899x1696 mm, simplify alignment with existing spaces. Use the included gland plates to organize cabling and position DIN rails for modular components, ensuring a clean, scalable interior layout.
The enclosure uses sheet steel throughout, with doors 2.0 mm thick and mounting plate 3.0 mm. It achieves IP55 protection and IK10 impact resistance, supporting UL 50E Type 1 and NEMA 1 compliance for reliable performance in industrial environments. The frame is dip-coated and primed for corrosion resistance, with powder-coated exterior surfaces for long-term durability.
Yes. With IP55 and IK10 ratings, a robust sheet-steel build, and a front door design optimized for interior panel layouts, the VX 8084.000 is well-suited for automation cabinets, control panels, and machine housings in manufacturing lines, warehouses, and process environments where dust, water ingress, and physical impacts are concerns.
The enclosure meets IEC/UL expectations via IP55 protection, IK10 impact resistance, and UL 50E Type 1/NEMA 1 compliance. It also features a NEMA rating and a UL-listed profile for safe electrical installations, alongside the standard ETIM 9/8 and ECLASS classifications to support procurement and compatibility across automation ecosystems.
The VX 8084.000 weighs 133 kg per pack and includes a cradle-to-gate PCF of 327.7 kg CO2 eq (Cat B). This data helps quantify environmental impact during sourcing. Its durable powder-coated finish, zinc-plated gland plates, and modular interior reduce maintenance, extend life, and improve return on investment through increased uptime and fewer replacement cycles.
