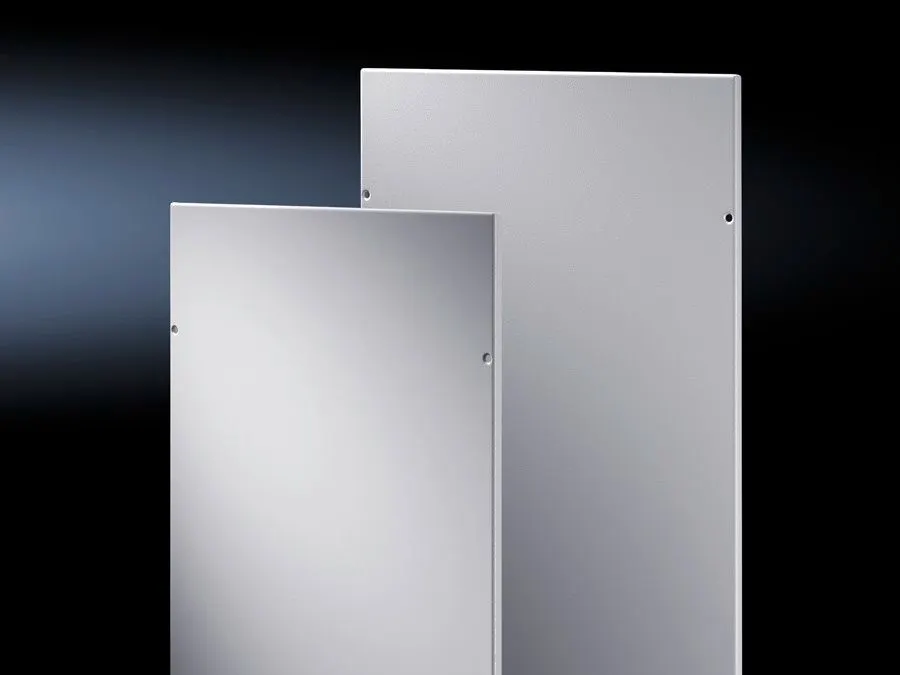

Rittal TS 8100.235 Side Panel - IP55
Part Number: 8100235
Quick Summary
Rittal TS 8100.235 Side Panel provides durable protection for TS enclosures in industrial control panels and switchgear installations. This screw-fastened sheet steel panel helps maintain enclosure integrity and EMC performance in demanding environments. A common pain point is misaligned or under-protected enclosures that compromise safety and compliance; these panels address that with precise fit and robust construction. Key specifications include IP 55 protection, a 1.5 mm sheet steel build, and a dipcoat-primed, powder-coated outside in RAL 7035, delivering long-term corrosion resistance. By standardizing on these panels, your maintenance cycles reduce downtime, while installation remains straightforward for panel builders, integrators, and OEMs alike.
Product Information
Extended Description
8100235 Rittal: TS Side panel, screw-fastened, for TS, TS IT, for WD: 2000x1000 mm, Sheet steel
Article number
TS 8100.235
Benefits
Automatic potential equalisation and higher EMC protection due to enclosure panel holders with earthing insert
Material
Sheet steel, 1.5 mm
Surface finish
Dipcoat-primed, powder-coated on the outside
Colour
RAL 7035
Supply includes
Assembly parts
Note
Enclosure panel holders may optionally be fitted from the inside or outside of the enclosure
To fit
Enclosure type: TS | TS IT | Height: 2,000 mm | Depth: 1,000 mm
IP protection category to IEC 60 529
IP 55
Basic material
Sheet steel
Packs of
2 pc(s).
Weight/pack
48 kg
Customs tariff number
94039910
EAN
4028177233720
ETIM 9
EC002524
ECLASS 8.0
27182101
Product description
TS Side panel, screw-fastened, for TS, TS IT, for WD: 2000x1000 mm, Sheet steel
Feature: Sheet steel construction with 1.5 mm thickness provides robust mechanical strength and rigidity. Benefit: Improved enclosure integrity reduces risk of physical damage and maintains enclosure dimensions under vibration, leading to fewer field adjustments and lower maintenance costs. Application: Suitable for TS and TS IT enclosures in control cabinets where durability is essential. Feature: IP 55 protection and earthing insert capability enhances EMC and environmental protection. Benefit: Superior protection against dust and water ingress supports compliance with industrial safety standards while enabling automatic potential equalisation for reliable EMC performance. Application: Critical in areas with moderate dust and indirect water exposure, such as manufacturing floors. Feature: Dipcoat-primed, powder-coated finish in RAL 7035. Benefit: Corrosion resistance and consistent aesthetics improve long-term reliability and ease of preventative maintenance. Application: Indoor and outdoor installations where appearance and protection matter. Feature: Includes assembly parts and supports flexible mounting. Benefit: Reduces sourcing time and speeds up installation, lowering total installed cost and on-site labor. Application: OEM panel fabrication lines and system integrators seeking a fast, predictable build. Feature: Enclosure panel holders can be fitted from inside or outside. Benefit: Installation flexibility minimizes assembly constraints and simplifies retrofits or reconfigurations. Application: retrofit projects and modular TS solutions where space or access is limited.
Get a Quick Quote for a Rittal 8100235
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8100235?
Enquire Now
FAQs
The TS 8100.235 Side Panel uses screws for a secure, rigid fit. The kit includes assembly parts for quick mounting to TS or TS IT enclosures with WD 2000 x 1000 mm dimensions. For best results, align with the enclosure edge guides, tighten screws incrementally to avoid distortion, and verify IP55 seals after installation.
Yes. The panel is designed to fit TS and TS IT enclosure types with the specified WD 2000 x 1000 mm size. Its screw-fixed method and earthing insert compatibility ensure seamless integration into TS IT configurations while maintaining protection and EMC integrity.
The panel is made from sheet steel with a thickness of 1.5 mm and finished with a dipcoat-primed, powder-coated exterior in RAL 7035. It provides IP55 ingress protection per IEC 60529, supporting reliable operation in dusty and damp environments.
EMC performance is enhanced by the enclosure panel holders with earthing insert, enabling automatic potential equalisation. During installation, ensure the earthing path is continuous and the panel is correctly aligned to maximize contact with the enclosure frame for optimal shielding.
This item ships in packs of 2, with a weight of 48 kg per pack. For two packs, plan for a total weight of 96 kg. Confirm crane or pallet jack access on site and follow standard safety procedures during handling and installation.
