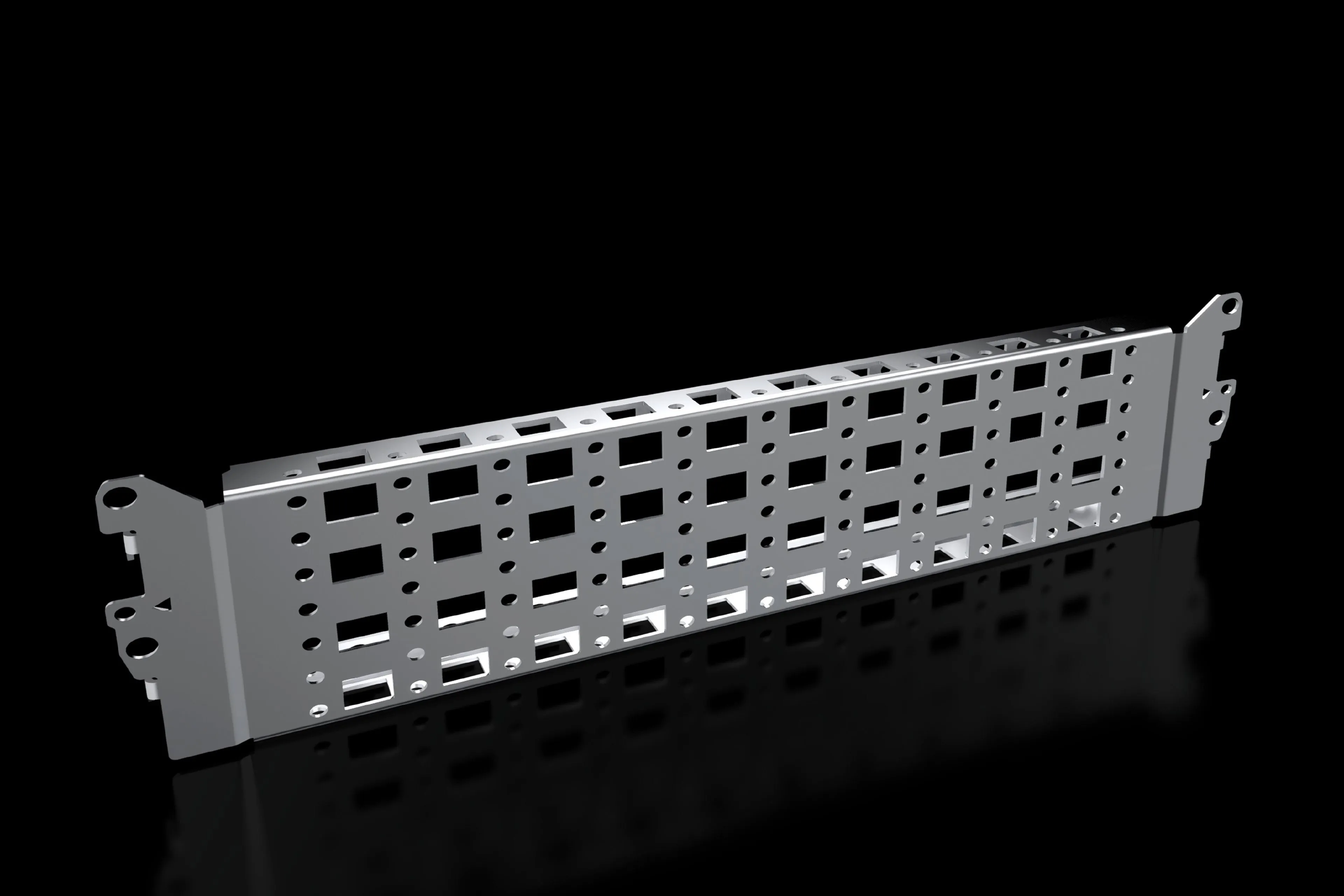

Rittal 8100730 VX Punched Section - Stainless steel 1.4301
Part Number: 8100730
Manufacturer
Rittal
Part number
8100730
Alt Part Number
VX 8100.730
Quick Summary
Rittal 8100730 VX Punched Section enables flexible interior mounting for VX enclosures in electrical control panels. This helps engineers overcome space constraints by providing a reliable, screw-fastened mounting point on the inner level. Note: Certification details such as CE, SIL, or IP ratings are not listed in the provided data; verify with Rittal for regulatory compliance in your region. The component is specified to fit VX and VX SE enclosures with 400 mm width/depth, and uses stainless steel 1.4301 (AISI 304) for durability in demanding environments. By leveraging this interior mounting accessory, you can reduce field modification time, improve install reliability, and support scalable, cost-effective infrastructure upgrades for panel builds. Secondary considerations include ease of procurement and compatibility with standard VX system punchings.
Product Information
Extended Description
8100730 Rittal: VX Punched section, with mounting flange 23 x 89 mm, for W/D: 400 mm, stainless steel
Article number
VX 8100.730
Product description
For variable, individual interior installation of the enclosure frame on the inner mounting level.
Benefits
Simply locate into the system punchings and screw-fasten
Material
Stainless steel 1.4301 (AISI 304)
Supply includes
Assembly parts
Installation options
In VX on the inner mounting level, on the VX enclosure section
To fit
Enclosure type: VX | VX SE | To fit width/depth: 400 mm
Packs of
2 pc(s).
Weight/pack
0.6 kg
Customs tariff number
73269098
EAN
4028177924628
ETIM 9
EC002620
ECLASS 8.0
27189234
Product description
VX Punched section, with mounting flange 23 x 89 mm, for W/D: 400 mm, stainless steel
Feature: Stainless steel construction 1.4301 (AISI 304) provides corrosion resistance in demanding environments. >Business Impact: Longevity reduces maintenance cycles and replacement costs, improving total cost of ownership. >Application: Ideal for control panels in challenging environments where ingress protection and corrosion resistance matter. Feature: Mounting flange 23 x 89 mm tailored for W/D 400 mm. >Business Impact: Optimizes space utilization within VX enclosures, enabling precise interior layouts and predictable assembly times. >Application: Suitable for 400 mm wide/deep VX systems, including VX SE variants. Feature: Inner mounting level installation with system punchings. >Business Impact: Fast, repeatable positioning minimizes setup time and prevents misalignment during assembly. >Application: Perfect for projects requiring modular interior configurations without bespoke fabrication. Feature: Supplied as 2-piece packs with assembly parts and screw-fastening capability. >Business Impact: Reduces procurement complexity and ensures components arrive ready to install, cutting downstream labor costs. >Application: Streamlines project timelines for panel builders and system integrators. Feature: Fits VX and VX SE families; designed for 400 mm width/depth. >Business Impact: Guarantees compatibility across common Rittal enclosure lines, lowering risk of misfit and rework. >Application: Useful in standardised enclosures across industrial automation installations. Feature: Weight per pack 0.6 kg and included installation parts. >Business Impact: Lightweight, easy handling in confined spaces; straightforward stocking and shipping. >Application: Particularly beneficial for field installations where technician ergonomics matter. Industry context: The VX interior mounting approach aligns with modern DIN-rail and component-mounting practices, enabling lean assembly workflows and faster commissioning. Engineers appreciate predictable optimization of space, compatibility with existing punchings, and straightforward screw-fastened fixation that reduces the potential for loose parts in live panels.
Get a Quick Quote for a Rittal 8100730
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8100730?
Enquire Now
FAQs
The VX 8100.730 is designed to locate into the VX system punchings and be screw-fasten. The pack contains two pieces and the necessary assembly parts, enabling a straightforward on-site interior mounting on the inner level. This minimizes alignment errors and reduces commissioning time for your control panels.
Yes. The specification specifies fit for VX and VX SE enclosures with a width/depth of 400 mm, ensuring reliable compatibility across these common Rittal enclosure families.
The punched section is made from stainless steel 1.4301 (AISI 304), which provides corrosion resistance and strength in challenging industrial environments, supporting long service life for interior mounting hardware.
Easy, screw-fastened installation into existing punchings reduces assembly time and field rework. Packaged as two pieces with assembly parts, it streamlines procurement and minimizes labor costs during panel assembly and reconfiguration.
Ensure the enclosure width/depth is 400 mm and that the VX or VX SE family is used. Confirm material is stainless steel 1.4301 (AISI 304) and that the pack quantity is 2 pieces per order to align with your installation plan.
