Rittal VX 8100.743 Punched Section - System punchings on all four sides
Part Number: 8100743
Manufacturer
Rittal
Part number
8100743
Alt Part Number
VX 8100.743
Quick Summary
Rittal VX 8100.743 punched section enables variable interior mounting for VX enclosures, supporting 800 mm wide frames. When configuring panels on site, installers often face misaligned mounting levels or extra fabrication steps that slow commissioning. This component aligns with standard European enclosure practices, uses zinc-plated sheet steel, and features system punchings on all four sides to simplify mounting with pre-installed plates. Weight per pack is 1.92 kg across two sections, and it can be cut to length to fit non-standard widths, reducing field waste and labor. Together with mounting brackets and assembly parts, it accelerates panel assembly while preserving robust interior mounting for VX and VX SE enclosures.
Product Information
Extended Description
8100743 Rittal: VX Punched section, without mounting flange 23 x 64mm, for WD: 800 mm
Article number
VX 8100.743
Product description

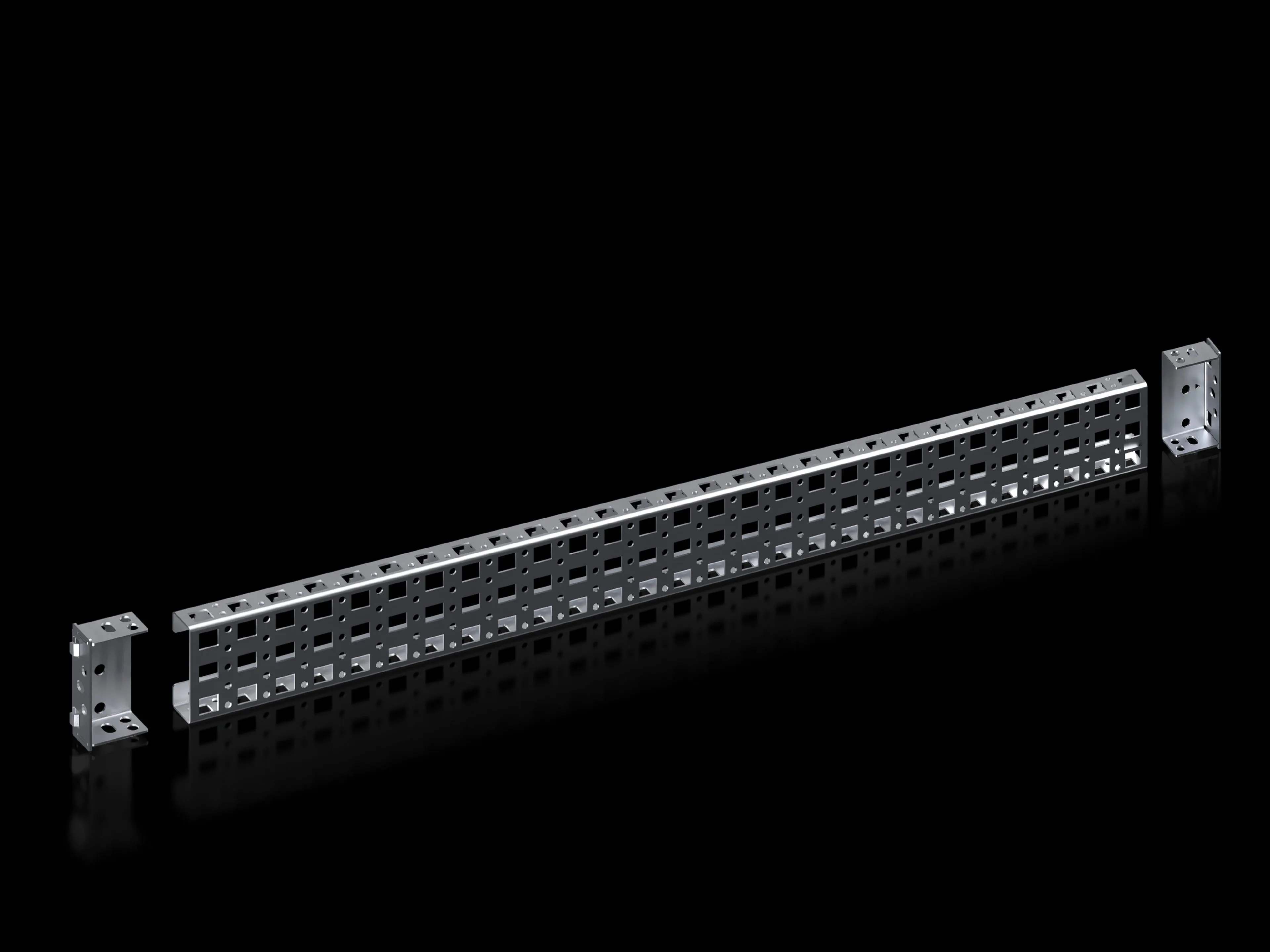

For variable, individual interior installation of the enclosure frame on the inner mounting level. Mounted flush with enclosure frame The additional mounting brackets mean it can also be used with a pre-installed mounting plate, and is also prepared for cutting to any required length.
Benefits
System punchings on all four sides
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
2 punched sections without mounting flanges | 4 mounting brackets | Assembly parts
Installation options
In VX on the inner mounting level, on the VX enclosure section
To fit
Enclosure type: VX | VX SE | To fit width/depth: 800 mm
Packs of
2 pc(s).
Weight/pack
1.92 kg
Customs tariff number
73269098
EAN
4028177924512
ETIM 9
EC002620
ECLASS 8.0
27189234
Product description
VX Punched section, without mounting flange 23 x 64mm, for WD: 800 mm
Feature: Variable interior mounting on the inner mounting level with 23 x 64 mm punched sections. Business Impact: Enables flexible interior layouts without custom fabrication, reducing commissioning time and on-site machining. Application: Ideal for VX or VX SE enclosures that require tailored mounting points while maintaining flush integration with the enclosure frame. Feature: System punchings on all four sides. Business Impact: Simplifies multi-side mounting and compatibility with pre-installed mounting plates and brackets, improving installation consistency and reducing part variance. Application: Supports standardized assembly across multiple panels in a control cabinet lineup. Feature: Material and finish are zinc-plated sheet steel. Business Impact: Delivers corrosion resistance in typical industrial environments, extending service life and lowering replacement costs. Application: Suitable for harsh factory floors and electrical infrastructure installations where durability matters. Feature: Clear supply includes 2 punched sections, 4 mounting brackets, and assembly parts. Business Impact: Reduces procurement steps and on-site logistics, speeding up initial setup and ongoing maintenance. Application: Streamlines project timelines by providing all essential components in a ready-to-install kit. Feature: Cut-to-length readiness and compatibility with 800 mm VX widths. Business Impact: Minimizes waste and enables precise fitment for non-standard installations, cutting total project waste. Application: Especially valuable in custom panel builds and modular data/industrial control cabinets.
