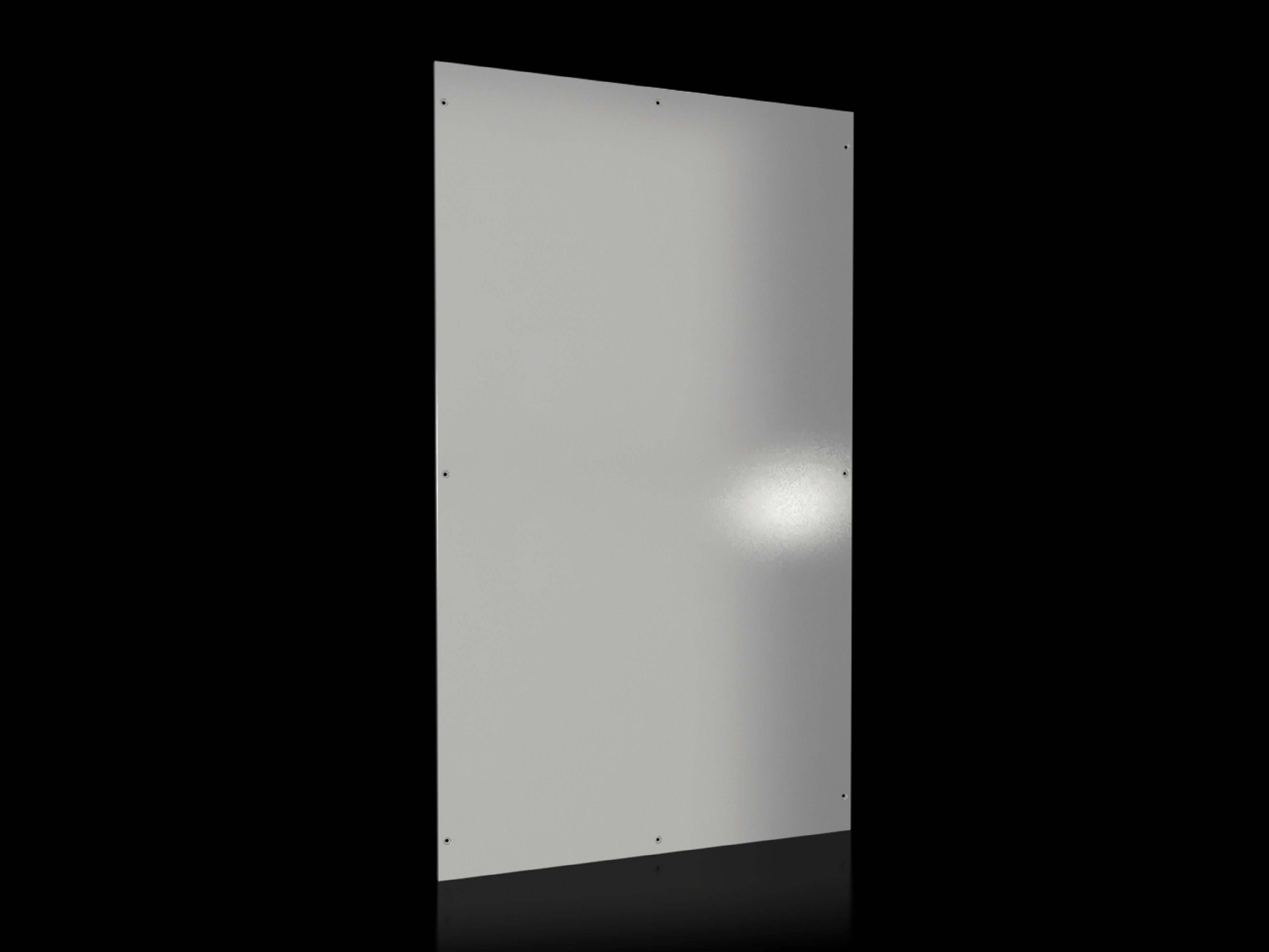

Rittal VX 8102.245 Side Panel - IP55
Part Number: 8102245
Quick Summary
Rittal VX 8102.245 Side Panel protects VX enclosures with a screw-fastened design for 2000x1200 mm cabinets. The goal is to deliver a robust, easy-to-install enclosure accessory that cuts installation time. This panel features IP 55 protection and UL 50E Type 1 approval, aligning with industry safety and performance standards. Its clip-in side panel holder accelerates assembly, while the included assembly parts simplify commissioning. For equipment builders and maintenance teams, this panel supports scalable VX cabinet deployments with consistent finish and reliable sealing, reducing downtime and total cost of ownership while maintaining a professional, compliant appearance.
Product Information
Extended Description
8102245 Rittal: VX Side panel, screw-fastened, for HD: 2000x1200 mm, sheet steel
Article number
VX 8102.245
Benefits
Time-saving assembly thanks to clip-in side panel holder
Material
Sheet steel, 1.5 mm
Surface finish
Dipcoat-primed, powder-coated on the outside
Colour
RAL 7035
Supply includes
Assembly parts
To fit
Enclosure type:Â VX | Height:Â = 2,000 mm | Depth:Â = 1,200 mm
IP protection category to IEC 60 529
IP 55
Type rating to UL 50E
Type 1
Basic material
Sheet steel
Packs of
2 pc(s).
Weight/pack
80 kg
PCF per pack (cradle-to-gate)
304.8Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
ETIM 9
EC002524
ECLASS 8.0
27182101
Product description
VX Side panel, screw-fastened, for HD: 2000x1200 mm, sheet steel
Feature: Clip-in side panel holder enables fast, error-free assembly. Business Impact: Reduces installation time and labor costs by simplifying alignment and securing the panel. Application: Ideal for VX enclosures in production lines where rapid changes and modular expansion are routine. Feature: Sheet steel, 1.5 mm thickness provides structural rigidity. Business Impact: Strengthens enclosure integrity against impact and industry vibrations, enhancing equipment protection. Application: Suitable for heavy-duty electrical cabinets in manufacturing environments. Feature: Dipcoat-primed, powder-coated exterior with RAL 7035 finish increases corrosion resistance and visual consistency. Business Impact: Extends service life and reduces repainting or touch-up needs in harsh environments. Application: Outdoor-rated or damp indoor areas requiring durable aesthetics. Feature: Supplied with assembly parts and designed to fit VX 2000x1200 mm enclosures. Business Impact: Streamlines procurement and reduces search time for compatible components. Application: New builds and retrofits of VX systems in warehouses and control rooms. Feature: IP protection IP 55 and UL 50E Type 1 rating provide regulatory compliance and safer operation. Business Impact: Mitigates dust, water ingress and electrical hazards, supporting risk management. Application: Control panels, manufacturing lines, and industrial automation cabinets. Feature: Weight per pack 80 kg with 2 packs per order and PCF 304.8 kg CO2 eq (Cat B). Business Impact: Clear packaging and sustainability data support logistics planning and environmental reporting. Application: Large-volume installations and eco-conscious procurement.
Get a Quick Quote for a Rittal 8102245
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8102245?
Enquire Now
FAQs
The VX 8102.245 side panel is designed to fit VX enclosure types with a height of 2000 mm and a depth of 1200 mm. Each pack contains two side panels, with a total weight of 80 kg per pack, and assembly parts included to simplify installation.
This side panel is rated IP 55, providing protection against dust ingress and water splashes. It also carries UL 50E Type 1 recognition, making it suitable for general purpose electrical enclosures in industrial environments.
The panel is made from sheet steel with a thickness of 1.5 mm. It is dipcoat-primed and powder-coated on the outside, finished in RAL 7035 for durable outdoor and indoor visibility and corrosion resistance.
Yes, the supply includes assembly parts. The design features a clip-in side panel holder that allows for quicker, more reliable installation, reducing assembly time and minimizing alignment issues during panel retrofit or initial assembly.
The pack provides a PCF of 304.8 kg CO2 eq (Cat B) per pack, reflecting cradle-to-gate environmental impact based on product weight. This helps you account for lifecycle emissions in procurement and reporting.
