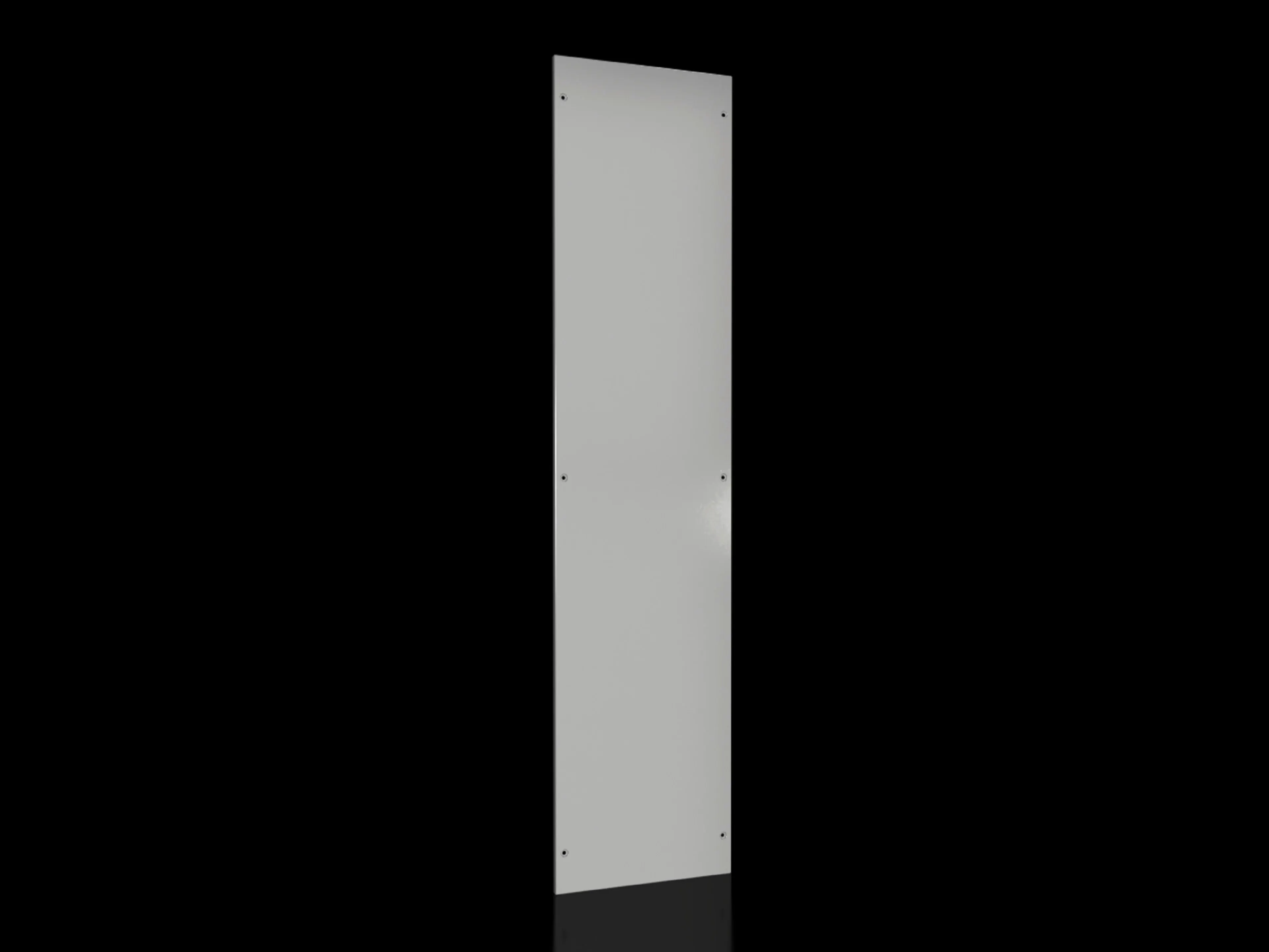

Rittal VX 8105.550 Side Panel with C4-H coating - IP 55
Part Number: 8105550
Quick Summary
Rittal VX 8105.550 Side Panel is a screw-fastened protection accessory for VX enclosures measuring 2000x500 mm. Engineers frequently battle corrosion, ingress and sealing challenges during installation; this panel mitigates those issues with a powder-coated C4-H finish and IP55 protection. It aligns with UL 50E Type 1 and DIN EN ISO 12944 corrosion standards, signaling reliability in industrial cabinets. By standardizing on this VX side panel, maintenance cycles shorten, downtime drops, and procurement gains predictable compatibility across VX components. This makes it a practical choice for OEMs and end users seeking long-term performance.
Product Information
Extended Description
8105550 Rittal: VX side panel, screw-fastened, for HxD: 2000x500 mm, sheet steel, C4-H
Article number
VX 8105.550
Design
Surface coating to DIN EN ISO 12944, corrosion protection class C4-H
Material
Sheet steel, 1.5 mm
Surface finish
Powder-coated
Colour
RAL 7035
Supply includes
Assembly parts
To fit
Enclosure type: VX C4-H | Height: = 2,000 mm | Depth: = 500 mm
IP protection category to IEC 60 529
IP 55
Type rating to UL 50E
Type 1
Basic material
Sheet steel
Packs of
2 pc(s).
EAN
4028177993723
ETIM 9
EC002524
ETIM 8
EC002524
ECLASS 8.0
27182101
Product description
VX side panel, screw-fastened, for HxD: 2000x500 mm, sheet steel, C4-H
Feature: Screw-fastened side panel, sheet steel 1.5 mm, 2000x500 mm; Business Impact: Easy field installation, secure enclosure integrity, and straightforward replacement; Application: Ideal for VX C4-H enclosures in industrial automation and electrical cabinets. Feature: Surface coating to DIN EN ISO 12944 C4-H; Business Impact: Extended service life in corrosive environments, reducing repaint and maintenance needs; Application: Suitable for indoor and sheltered outdoor installations in challenging environments. Feature: IP 55 protection and UL 50E Type 1 rating; Business Impact: Protects against dust ingress and water exposure while supporting North American compliance; Application: Control panels in manufacturing and process facilities. Feature: Powder-coated finish in RAL 7035; Business Impact: Visual consistency and scratch resistance across multiple cabinets, reducing repaint cycles; Application: Uniform appearance in multi-cabinet deployments. Feature: Pack of 2 panels with assembly parts included; Business Impact: Streamlined procurement and faster installation, with reduced packaging waste; Application: Practical for scalable automation projects and retrofit programs.
Get a Quick Quote for a Rittal 8105550
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8105550?
Enquire Now
FAQs
The VX 8105.550 is a screw-fastened side panel designed for VX C4-H enclosures, sized 2000x500 mm. For installation, align the panel with the enclosure frame, use the supplied assembly parts, and tighten screws to the recommended torque. The two-pack reduces handling steps and supports quick field retrofit without special tools.
This panel carries IP 55 protection per IEC 60529 and UL 50E Type 1. IP 55 ensures protection against dust ingress and water jets, while UL 50E Type 1 supports safe usage in North American electrical installations. Together they indicate suitability for harsh industrial environments and cross-border compliance in control cabinets.
The C4-H corrosion protection and powder-coated finish provide enhanced durability in humid and corrosive indoor environments. While not explicitly rated for direct outdoor exposure, the coating and seal performance extend cabinet life in sheltered outdoor areas or covered facilities, reducing repainting and maintenance costs over time.
Coating adheres to DIN EN ISO 12944 with corrosion protection class C4-H. This standard governs protective coatings in aggressive environments. In addition, the panel meets IP 55 protection and UL 50E Type 1 for safety and reliability in industrial cabinets.
The powder-coated, C4-H protected finish slows corrosion and minimizes repainting needs, reducing maintenance downtime. The 2-pack provides bulk procurement efficiency, while compatibility with VX components lowers lifecycle costs through predictable spare parts and faster installation, delivering measurable ROI over the cabinet's service life.
