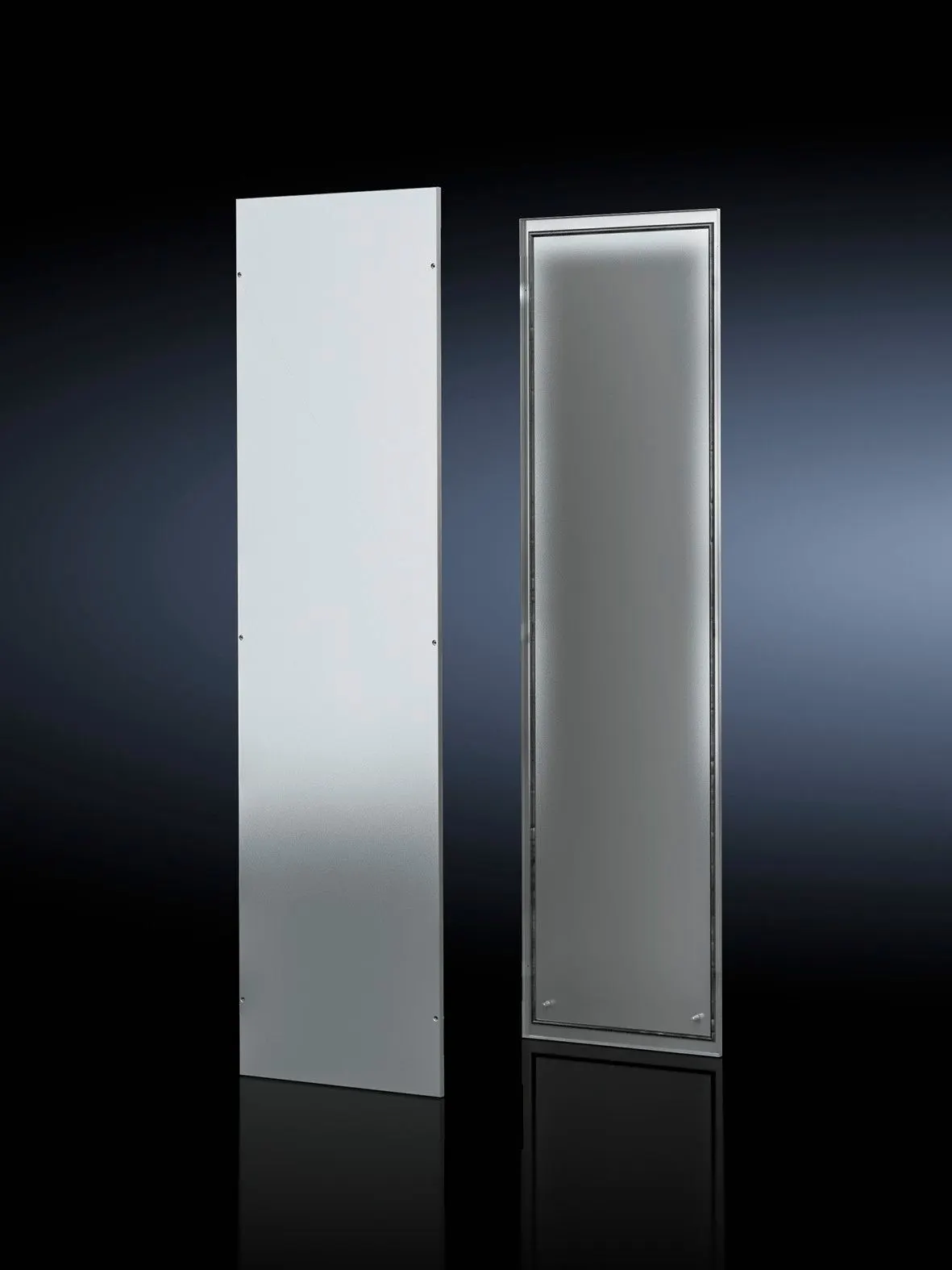

Rittal 8106235 TS Side Panel TS/IT HxD 2000x600 - IP55
Part Number: 8106235
Quick Summary
Rittal TS Side Panel TS/IT HxD 2000x600 is a screw-fastened enclosure accessory that closes TS cabinets with durable, professional protection. Engineers often struggle with uneven EMC protection and grounding when side panels are missing or misaligned, causing unpredictable performance and longer commissioning times. This panel includes an earthing insert to improve automatic potential equalisation and an IP55-rated shield for challenging industrial environments. Constructed from 1.5 mm sheet steel and finished in Dipcoat-primed, powder-coated RAL 7035, it combines rigidity with corrosion resistance. Supplied as a 2-piece pack with assembly parts, the solution supports fast, repeatable installation and consistent enclosure aesthetics across TS and TS IT lines.
Product Information
Extended Description
8106235 Rittal: TS Side panel, screw-fastened, for TS, TS IT, for HxD: 2000x600 mm, Sheet steel, RAL 7035
Article number
TS 8106.235
Benefits
Automatic potential equalisation and higher EMC protection due to enclosure panel holders with earthing insert
Material
Sheet steel, 1.5 mm
Surface finish
Dipcoat-primed, powder-coated on the outside
Colour
RAL 7035
Supply includes
Assembly parts
Note
Enclosure panel holders may optionally be fitted from the inside or outside of the enclosure
To fit
Enclosure type: TS | TS IT | Height: 2,000 mm | Depth: 600 mm
IP protection category to IEC 60 529
IP 55
Basic material
Sheet steel
Packs of
2 pc(s).
Weight/pack
29.2 kg
Customs tariff number
94039910
EAN
4028177205260
ETIM 7.0
EC002524
ECLASS 8.0
27182101
Product description
TS Side panel, screw-fastened, for TS, TS IT, for HxD: 2000x600 mm, Sheet steel, RAL 7035
Feature: IP55 protection and earthing insert provide automatic potential equalisation and EMI shielding. Business impact: Enhanced equipment reliability and safer operation in demanding environments, reducing field troubleshooting. Application: Ideal for TS and TS IT enclosures in manufacturing floors where dust, moisture, and live components coexist. Feature: Sheet steel 1.5 mm with dipcoat-primed, powder-coated outside. Business impact: Strong mechanical durability and long-term corrosion resistance with a clean, maintenance-friendly finish. Application: Suitable for indoor and semi-exterior installations requiring rugged enclosure skin. Feature: Pack of 2 with assembly parts. Business impact: Lower logistics and procurement costs, faster stock deployment and quick on-site fit. Application: Streamlines projects with standardized enclosure components across multiple lines. Feature: Compatibility with TS, TS IT, HxD 2000x600. Business impact: Reduces engineering time by enabling modular enclosure designs and consistent fit across product families. Application: Great for scalable control panels and distribution cabinets in automation projects. Feature: Dipcoat-primed finish and RAL 7035 color. Business impact: Uniform appearance and compliance with plant branding while resisting routine wear. Application: Useful for visible panels in control rooms and equipment bays where aesthetics matter. Feature: 2-pack packaging and assembly parts included. Business impact: Predictable shipping quantities and simplified maintenance planning. Application: Ideal for installers planning replacements or expansions across sites.
Get a Quick Quote for a Rittal 8106235
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8106235?
Enquire Now
FAQs
Yes. The TS Side Panel TS 8106.235 is designed to mount on TS and TS IT enclosures with a 2000x600 mm footprint. It ships as a two-piece pack with assembly parts and features earthing inserts to ease grounding. For best results, align the panel with enclosure flanges, secure with the included hardware, and verify IP55 sealing around the edges before tightening.
Key specs include 1.5 mm sheet steel, a Dipcoat-primed exterior finished with powder coating in RAL 7035, IP55 protection, and a weight of 29.2 kg per pack. It is supplied in packs of two and includes assembly parts, making installation straightforward and consistent across multiple enclosures.
Yes. The TS 8106.235 side panel is explicitly designed for HxD 2000x600 mm TS and TS IT enclosure configurations. It is screw-fastened for reliable sealing and includes earthing options to maintain proper grounding and EMC performance in typical industrial environments.
The panel provides IP55 protection per IEC 60654-1 (IEC 60529) and offers earthing inserts to enhance automatic potential equalisation, improving EMC protection. The finish uses a dipcoat-primed exterior with a powder-coated surface in RAL 7035 for durable outdoor and indoor use while maintaining a professional appearance.
The two-piece pack with included assembly parts reduces on-site handling time and labor costs, enabling faster turn-key enclosure upgrades. Its durable steel construction and IP55 rating lower maintenance needs in harsh environments, delivering lower lifecycle costs and improved uptime in automation projects.
