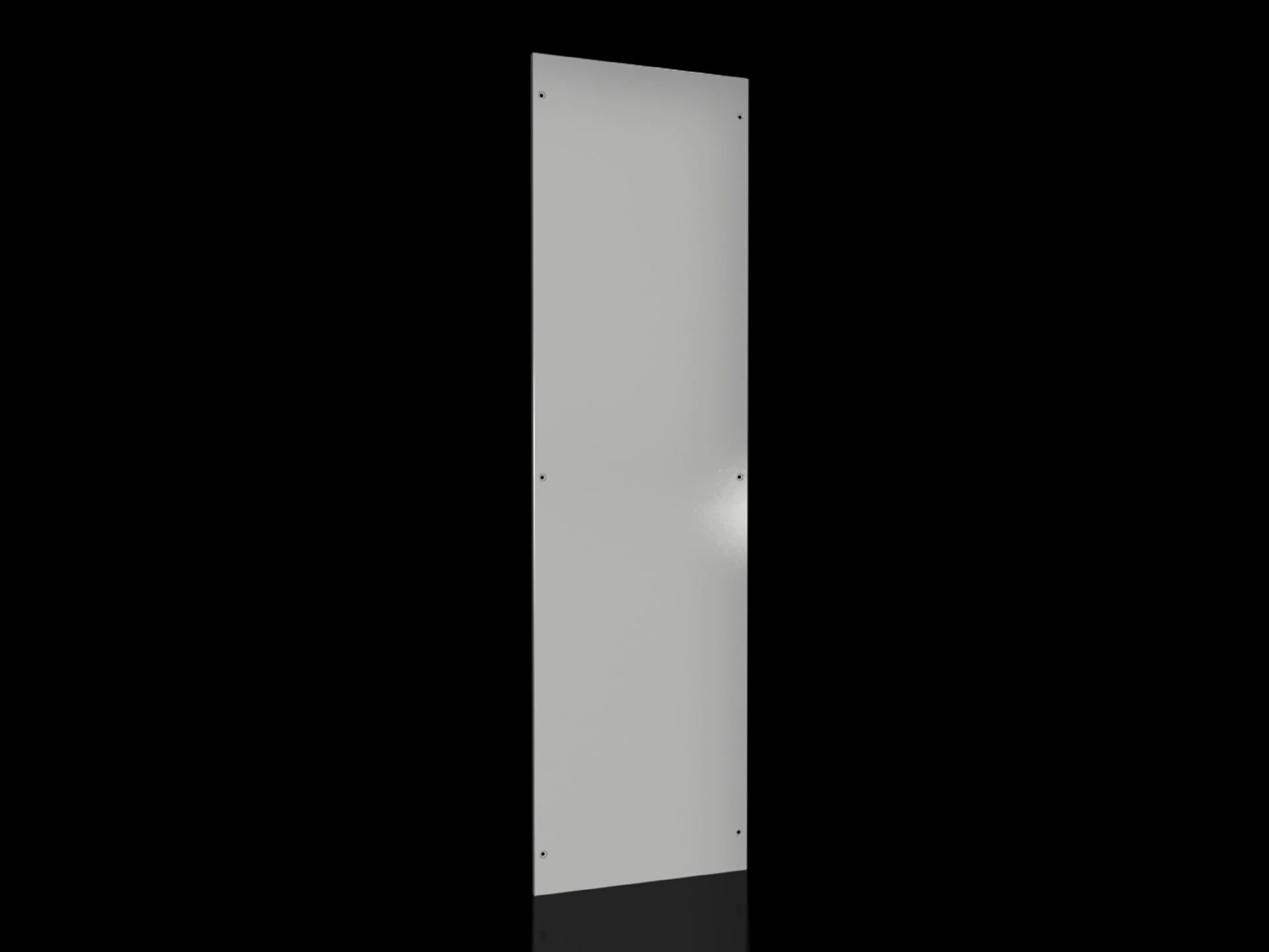

Rittal VX 8106.550 Side Panel - IP55 C4-H coating
Part Number: 8106550
Quick Summary
Rittal VX 8106.550 Side Panel is a screw-fastened enclosure panel for VX C4-H cabinets, delivering reliable protection for electrical gear in demanding environments. In harsh plants, corrosion or ingress can drive maintenance costs and downtime; this panel uses a powder-coated 1.5 mm sheet steel construction and C4-H coating to resist aggressive atmospheres. It achieves IP55 ingress protection and UL 50E Type 1 compliance, supporting safe operation and electrical code conformity. The design fits VX C4-H enclosures with HxD of 2000x600 mm, and the powder coating in RAL 7035 provides a durable, maintenance-friendly finish. Supplied in packs of two with assembly parts, enabling efficient onsite installation and consistent aesthetics across multiple enclosures.
Product Information
Extended Description
8106550 Rittal: VX side panel, screw-fastened, for HxD: 2000x600 mm, sheet steel, C4-H
Article number
VX 8106.550
Design
Surface coating to DIN EN ISO 12944, corrosion protection class C4-H
Material
Sheet steel, 1.5 mm
Surface finish
Powder-coated
Colour
RAL 7035
Supply includes
Assembly parts
To fit
Enclosure type: VX C4-H | Height: = 2,000 mm | Depth: = 600 mm
IP protection category to IEC 60 529
IP 55
Type rating to UL 50E
Type 1
Basic material
Sheet steel
Packs of
2 pc(s).
EAN
4028177993709
ETIM 9
EC002524
ETIM 8
EC002524
ECLASS 8.0
27182101
Product description
VX side panel, screw-fastened, for HxD: 2000x600 mm, sheet steel, C4-H
The VX 8106.550 uses a 1.5 mm sheet steel base with a powder-coated finish, offering superior corrosion resistance (C4-H) and extended service life in demanding environments. This translates to lower maintenance costs and fewer enclosure replacements in outdoor or humid facilities. It is designed to fit VX C4-H enclosures at 2000x600 mm, ensuring straightforward mounting and reliable seal integrity. The IP55 protection rating safeguards internal components from dust and water ingress, reducing the risk of downtime caused by environmental exposure. Supplied in packs of two with assembly parts, installation is faster and more repeatable across multi-cabinet installations, which lowers labor time and ensures uniform appearance across the plant. The RAL 7035 color enhances visibility and keeps maintenance tasks visually straightforward.
Get a Quick Quote for a Rittal 8106550
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8106550?
Enquire Now
FAQs
Install the side panel by aligning with the VX C4-H enclosure frame, using the supplied assembly parts. The 1.5 mm sheet steel panel is designed for straightforward screw-fastening, enabling quick on-site mounting without special tools. Verify IP55 seals are intact after installation and ensure the panel is compatible with a 2000x600 mm footprint for a proper fit.
Yes. The VX 8106.550 is specified to fit VX C4-H enclosures with a height of 2000 mm and depth of 600 mm. Its design follows VX system mounting patterns, so you can substitute this panel without modifying internal components. The supplied assembly parts support consistent mounting across multiple enclosures in a line-up.
The panel offers IP55 ingress protection and UL 50E Type 1 suitability, which supports safe operation of electrical gear in industrial settings. The surface coating complies with DIN EN ISO 12944 C4-H, providing durable corrosion resistance, while the 1.5 mm sheet steel base delivers robust structural integrity.
The powder-coated 1.5 mm sheet steel with C4-H protection reduces corrosion under exposure to humidity and pollutants, translating to longer service intervals and lower maintenance costs. The durable finish also minimizes cosmetic degradation, helping maintain enclosure appearance and readability of labeling over time.
Absolutely. Supplied in packs of two with assembly parts, the VX 8106.550 enables rapid, repeatable installation across multiple VX C4-H enclosures. This reduces field labor hours, minimizes commissioning downtime, and improves consistent sealing and protection across the plant, contributing to a faster time-to-benefit and better overall ROI.
