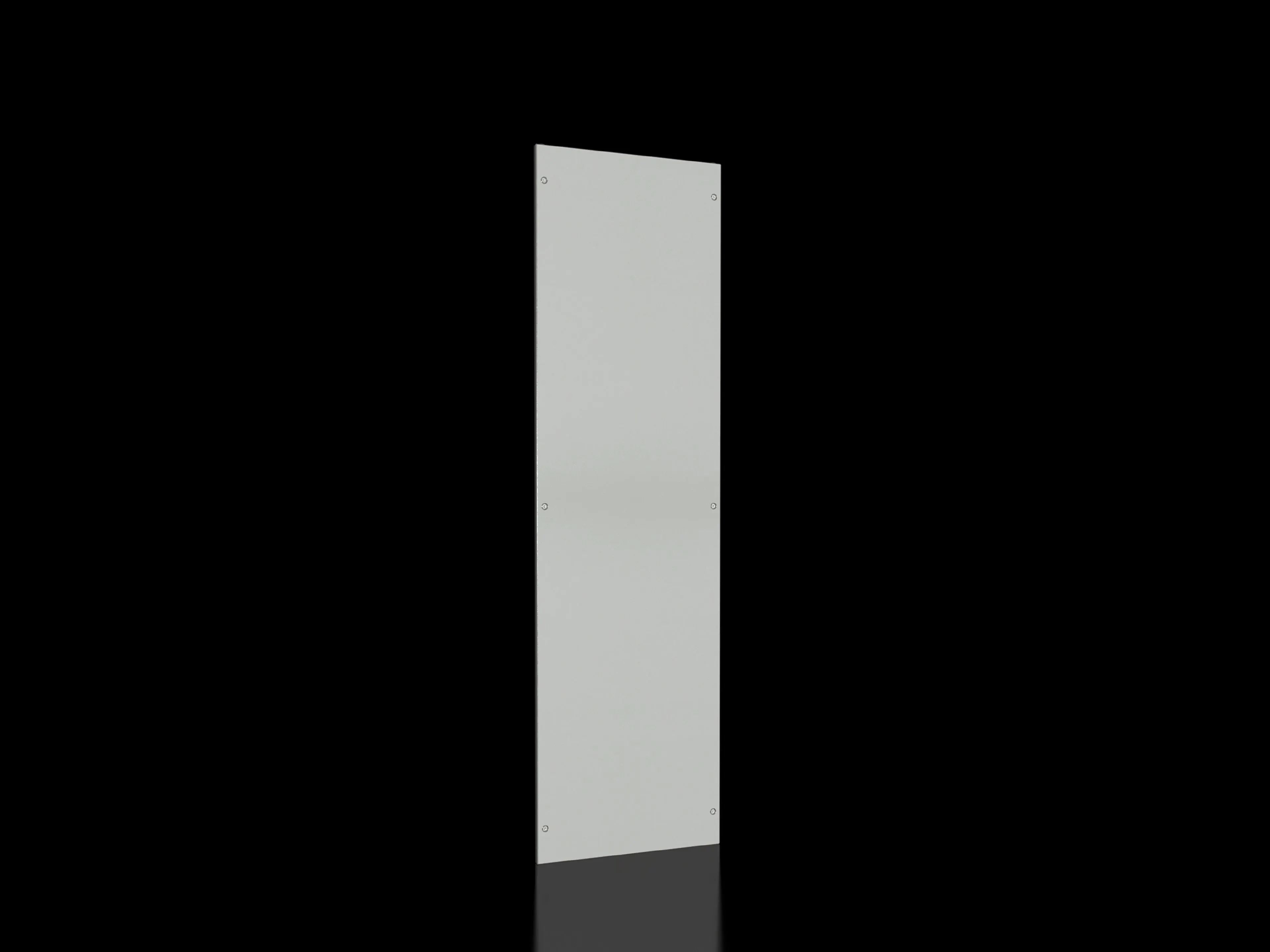

Rittal VX 8106.760 EMC Side Panel - IP 55 Protection
Part Number: 8106760
Quick Summary
Rittal VX 8106.760 EMC Side Panel provides automatic potential equalisation for VX enclosures. Engineers often face grounding and EMI shielding challenges that disrupt timelines and compromise performance. This part delivers IP 55 protection and UL 50E Type 1 readiness, aligning with common industrial standards. It fits VX enclosures up to 2000 x 600 mm, streamlines installation, and reduces field wiring, delivering measurable time savings and reliable EMC integrity for automation cabinets.
Product Information
Extended Description
8106760 Rittal: VX EMC side panel, for HD: 2000x600 mm
Article number
VX 8106.760
Product description
Automatic potential potential equalisation via assembly components, and a high level of EMC protection thanks to a special EMC seal.
Material
Sheet steel, 1.5 mm
Surface finish
with zinc magnesium coating | Powder-coated on the outside
Colour
RAL 7035
Supply includes
Assembly parts
Protection category to IEC 60 529
IP 55
Type rating to UL 50E
Type 1
To fit
Enclosure type:Â VX | Height:Â = 2,000 mm | Depth:Â = 600 mm
Packs of
2 pc(s).
Weight/pack
28.8 kg
EAN
4028177947252
ETIM 9
EC002524
ECLASS 8.0
27189264
Product description
VX EMC side panel, for HD: 2000x600 mm
Feature automatic potential equalisation via assembly components → Business Impact ensures a continuous earth path and consistent grounding, reducing EMI risks and post-install maintenance. Application VX enclosure types in factory automation, where reliable grounding accelerates commissioning. Feature EMC seal provides high level of shielding → Business Impact lowers EMI emissions and protects sensitive electronics, supporting regulatory compliance in control cabinets. Application Large-dimension VX enclosures used in process and machine automation. Feature sheet steel 1.5 mm with zinc–magnesium coating and powder-coated exterior in RAL 7035 → Business Impact delivers durable corrosion resistance and long-term appearance, minimizing repaint cycles. Application Harsh industrial environments and outdoor-rated spaces inside production facilities. Feature IP 55 protection and UL 50E Type 1 rating → Business Impact guards against dust ingress and indoor dust/water exposure while staying compatible with standard enclosure installations. Application Enclosures located on factory floors and in assembly lines. Feature packs of 2 and weight per pack 28.8 kg → Business Impact improves shipping logistics, warehousing, and on-site planning. Application Project-based cabinet builds where two panels per order optimize procurement. Feature Fits VX enclosures specifically 2000 mm high and 600 mm deep, includes assembly parts → Business Impact provides plug-and-play compatibility and faster installation, reducing downtime. Application VX 2000 x 600 mm cabinets and similar VX variants benefit from streamlined accessory sourcing.
Get a Quick Quote for a Rittal 8106760
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8106760?
Enquire Now
FAQs
Yes. The VX 8106.760 is designed specifically for VX enclosure families with a height of 2000 mm and a depth of 600 mm, ensuring a precise fit and reliable EMC performance. The two-pack configuration supports balanced installation on both sides of the enclosure where required.
The panel provides automatic potential equalisation via integration components, creating a continuous earth path that minimizes stray currents. Coupled with a dedicated EMC seal, it significantly reduces EMI leakage, helping protect sensitive electronics and simplify compliance testing in industrial environments.
The panel carries IP 55 protection and UL 50E Type 1 ratings, aligning with common industrial enclosure standards for dust ingress protection and electrical enclosure safety in typical factory settings. It also uses standard VX enclosure compatibility to support consistent regulatory alignment across regions.
Supplied as a two-pack with a combined weight of 57.6 kg, the panels are manageable for field teams and shipment planning. The packaged design includes assembly parts, enabling quicker on-site fitment and reducing handling steps during installation.
Plan for a VX enclosure with 2000x600 mm dimensions and ensure mounting provisions align with the side panel's pre-specified mounting points. The included assembly parts streamline attachment, minimizing additional hardware purchases and allowing a straightforward retrofit into existing VX systems.
