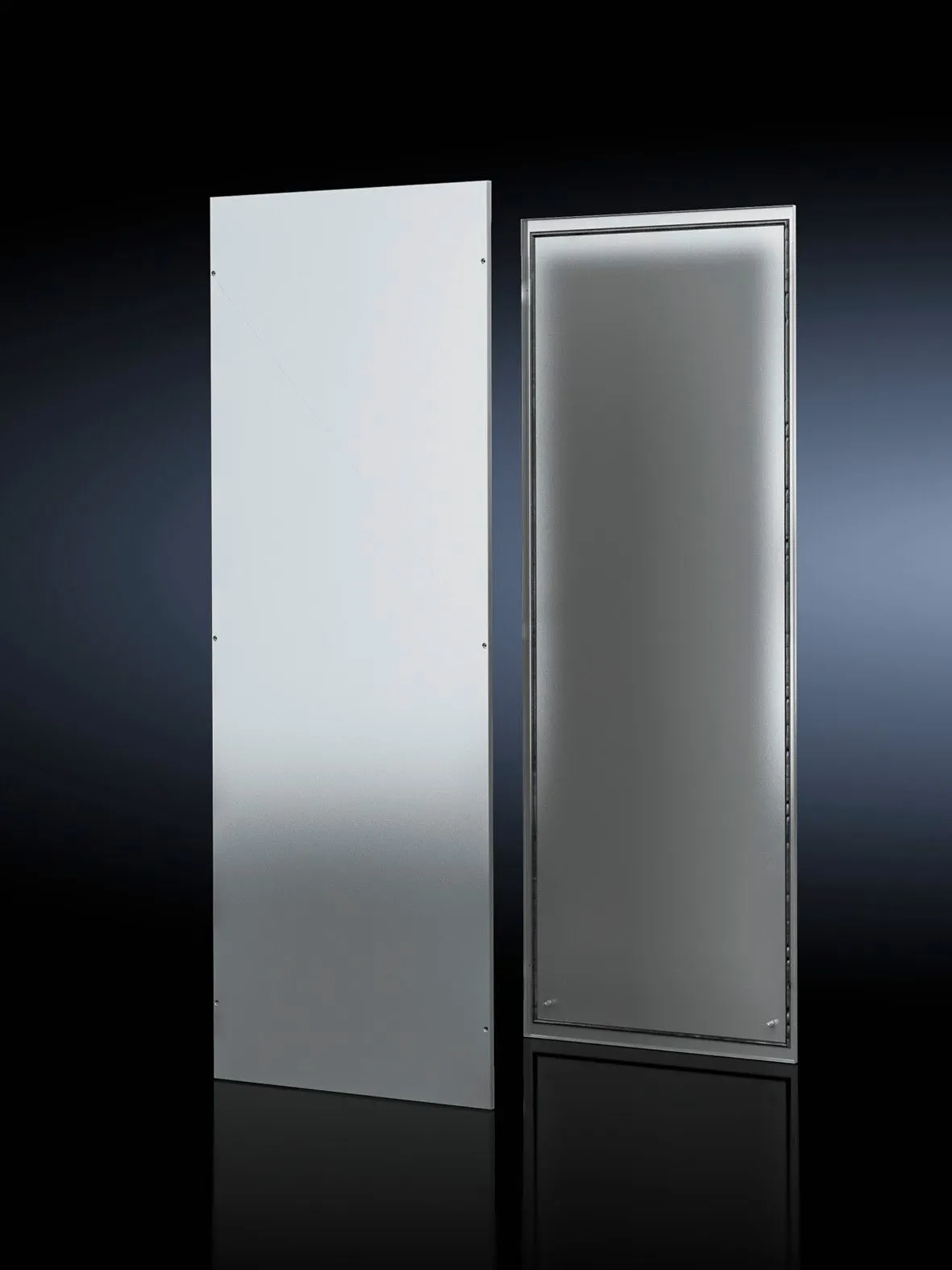

Rittal 8108.235 Side Panel for TS IT-1.5mm Sheet Steel IP55
Part Number: 8108235
Quick Summary
The Rittal TS 8108.235 Side Panel provides rugged protection for TS enclosures in industrial control applications. Choosing panels that consistently fit TS frames and deliver reliable EMI protection can be challenging. This panel offers IP55 protection with earthing insert for automatic potential equalisation, enhancing enclosure safety and performance. By leveraging a 1.5 mm sheet steel construction and powder-coated exterior, it delivers long-term reliability, reduced maintenance, and measurable uptime gains for your TS-based automation systems.
Product Information
Extended Description
8108235 Rittal: TS Side panel, screw-fastened, for TS, TS IT, for WD: 2000x800 mm, Sheet steel
Article number
TS 8108.235
Benefits
Automatic potential equalisation and higher EMC protection due to enclosure panel holders with earthing insert
Material
Sheet steel, 1.5 mm
Surface finish
Dipcoat-primed, powder-coated on the outside
Colour
RAL 7035
Supply includes
Assembly parts
Note
Enclosure panel holders may optionally be fitted from the inside or outside of the enclosure
To fit
Enclosure type:Â TS | TS IT | Height:Â 2,000 mm | Depth:Â 800 mm
IP protection category to IEC 60 529
IP 55
Basic material
Sheet steel
Packs of
2 pc(s).
Weight/pack
39.8 kg
Customs tariff number
94039910
EAN
4028177205277
ETIM 9
EC002524
ECLASS 8.0
27182101
Product description
TS Side panel, screw-fastened, for TS, TS IT, for WD: 2000x800 mm, Sheet steel
Feature: Screw-fastened Side Panel for TS and TS IT enclosures. Benefit: Quick, tool-friendly installation with dependable panel retention, reducing commissioning time and field service costs. Application: Ideal for 2000x800 mm WD configurations in industrial control cabinets where fast replacement and secure sealing matter. Feature: 1.5 mm sheet steel construction. Benefit: Robust mechanical protection against impact and vibration, improving cabinet integrity in harsh factory environments. Application: Suitable for power distribution and control panels exposed to manufacturing floor conditions. Feature: IP55 protection rating. Benefit: Safeguards internal components from dust ingress and moisture, enabling reliable operation in semi-dusty or damp environments. Application: Enclosures exposed to lighter contamination or incidental water spray. Feature: Dipcoat-primed, powder-coated outside. Benefit: Superior corrosion resistance and a durable finish with minimal maintenance. Application: Enclosures requiring long service life in outdoor or semi-exposed areas. Feature: Enclosure panel holders with earthing insert for automatic potential equalisation. Benefit: Enhanced EMC protection and safer grounding, reducing shielding gaps and leak paths. Application: Critical in control panels with high switching loads or sensitive instrumentation. Feature: Supplied in packs of two with assembly parts. Benefit: Predictable stocking and streamlined procurement, minimizing project delays. Application: System integrators and OEMs ordering spare panels for TS installations.
Get a Quick Quote for a Rittal 8108235
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8108235?
Enquire Now
FAQs
The 8108.235 Side Panel is designed to fit TS and TS IT enclosures with a WD of 2000 x 800 mm. It is screw-fastened and made from 1.5 mm sheet steel, supplied with assembly parts, and ships in packs of two for efficient stocking and installation.
It provides IP55 protection per IEC 60529, protecting against dust ingress and moisture. It also includes enclosure panel holders with an earthing insert for automatic potential equalisation, enhancing EMC protection and grounding reliability.
Each shipment includes two side panels plus assembly parts. Weight per pack is 39.8 kg, enabling predictable handling and shipping planning for project logistics.
Panels are screw-fastened and can be fitted from the inside or outside of the enclosure, per the note on enclosure panel holders. They fit TS and TS IT enclosures with WD 2000 x 800 mm, facilitating flexible mounting in limited access environments.
The panel enhances EMC protection via earthing inserts and automatic potential equalisation, reduces commissioning time with a screw-fastened design, and improves longevity with 1.5 mm sheet steel and durable coating—driving lower maintenance costs and higher uptime across automation deployments.
