Rittal VX 8108.245 Side Panel - IP55
Part Number: 8108245
Quick Summary

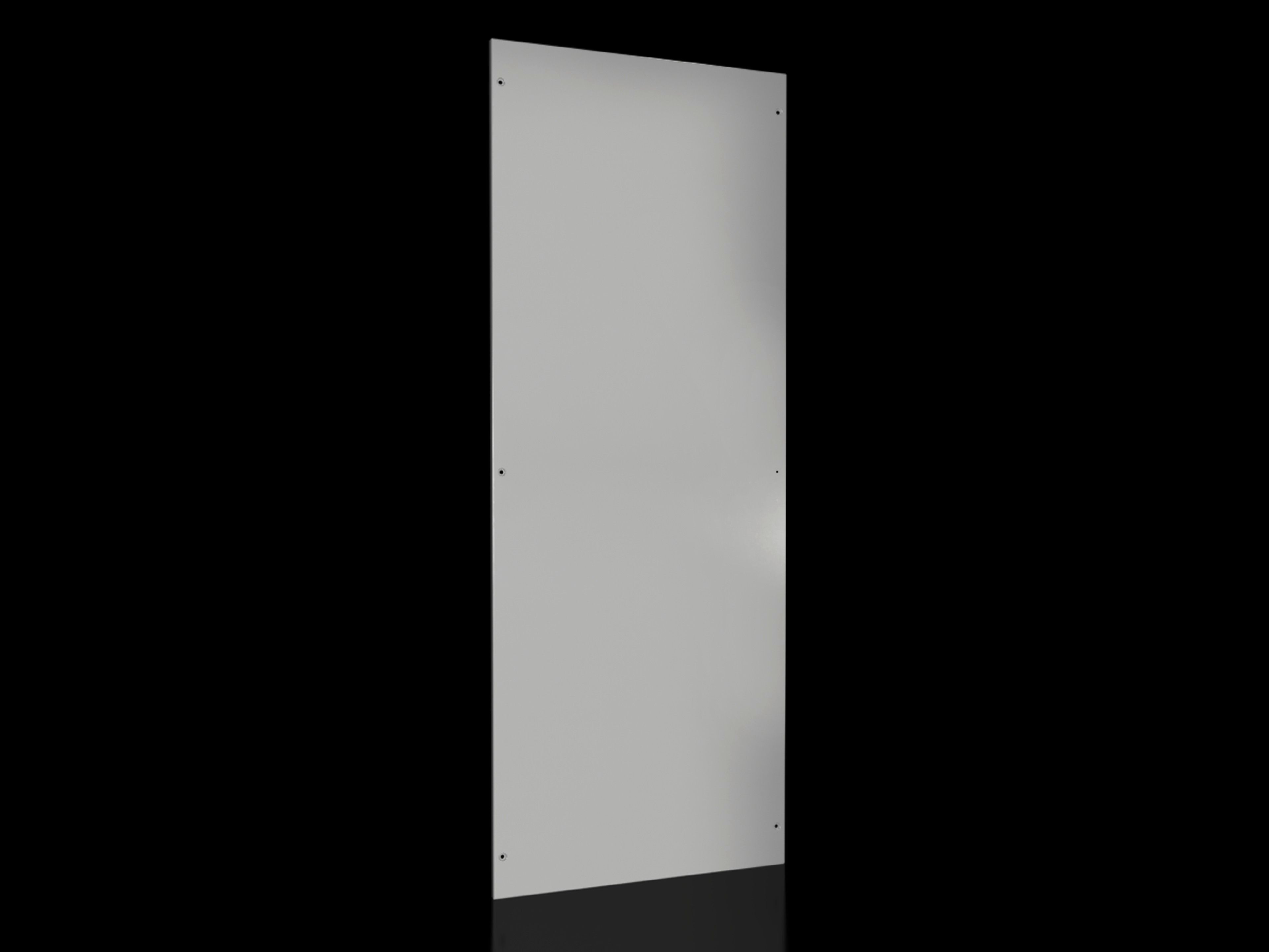

Rittal VX 8108.245 side panel is a screw-fastened sheet-steel enclosure accessory for VX enclosures. It addresses maintenance downtime by providing fast, tool-free access to internal components. With IP55 protection and UL 50E Type 1 compatibility, this panel supports reliable, code-compliant service in challenging environments. For manufacturers and integrators, the two-pack configuration with assembly parts reduces procurement complexity, while the 1.5 mm sheet steel and dip-coat primer, powder-coated exterior in RAL 7035 ensure durability and a consistent appearance across the line.
Product Information
Extended Description
8108245 Rittal: VX Side panel, screw-fastened, for HD: 2000x800 mm, sheet steel
Article number
VX 8108.245
Benefits
Time-saving assembly thanks to clip-in side panel holder
Material
Sheet steel, 1.5 mm
Surface finish
Dipcoat-primed, powder-coated on the outside
Colour
RAL 7035
Supply includes
Assembly parts
To fit
Enclosure type:Â VX | Height:Â = 2,000 mm | Depth:Â = 800 mm
IP protection category to IEC 60 529
IP 55
Type rating to UL 50E
Type 1
Basic material
Sheet steel
Packs of
2 pc(s).
Weight/pack
38.8 kg
PCF per pack (cradle-to-gate)
147.8Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177827462
ETIM 9
EC002524
ECLASS 8.0
27182101
Product description
VX Side panel, screw-fastened, for HD: 2000x800 mm, sheet steel
Feature clip-in side panel holder → Business Impact: Time-saving assembly translates to lower labor costs and faster enclosure readiness → Application: Suited for VX enclosure 2000x800, enabling rapid field service. Feature IP protection → Business Impact: Protects internal components from dust and water ingress, reducing maintenance and failure risk → Application: Ideal for rugged workshops and semi-outdoor industrial environments. Feature material 1.5 mm sheet steel → Business Impact: Provides structural rigidity and vibration resistance, supporting long-term equipment integrity → Application: Supports mounting of heavy electrical components inside VX enclosures. Feature surface finish dip-coat-primed, powder-coated outside; colour RAL 7035 → Business Impact: Corrosion resistance and consistent appearance aid maintenance and safety coding → Application: Aligns with plant aesthetics and safety standards. Feature supply includes assembly parts → Business Impact: Reduces procurement complexity and ensures quick installation → Application: Packs of 2 for VX systems, streamlining stocking. Feature sustainability data → Business Impact: Lower environmental footprint with PCF 147.8 kg CO2 eq per pack (Cat B) and 38.8 kg weight per pack → Application: Supports sustainability reporting and lifecycle considerations for manufacturing plants.
Get a Quick Quote for a Rittal 8108245
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8108245?
Enquire Now
FAQs
Installation is straightforward: align the clip-in side panel to the VX enclosure rails, engage the clip-in holder for a secure fit, and attach assembly parts included in the pack. Keep the enclosure height at 2000 mm and depth at 800 mm to ensure a proper seal and IP55 protection. This process minimizes field downtime and guarantees repeatable results across multiple units.
Key specs include IP55 protection, UL 50E Type 1 compatibility, 1.5 mm sheet steel construction, and a dip-coat primed, powder-coated exterior in RAL 7035. The panel is designed for VX enclosures of 2000x800 mm, ships in packs of two with assembly parts, and weighs 38.8 kg per pack, enabling robust, code-compliant protection for electrical assemblies.
Yes. The VX 8108.245 Side Panel is rated UL 50E Type 1, offering suitability for electrical cabinets and enclosures in industrial settings requiring standard electrical code compliance. Combined with IP55 protection, it provides reliable dust and water ingress resistance while maintaining structural integrity in typical factory environments.
The panel ships in packs of two and includes all necessary assembly parts for immediate installation. This packaging approach reduces procurement steps and inventory handling, accelerating project timelines and ensuring consistency across VX enclosure configurations in the plant.
The pack carries a PCF of 147.8 kg CO2 equivalent (Cat B) per pack, based on cradle-to-gate analysis tied to product weight. With a weight of 38.8 kg per pack, the component supports lifecycle and sustainability reporting for manufacturing facilities while delivering durable, long-life enclosure protection.
