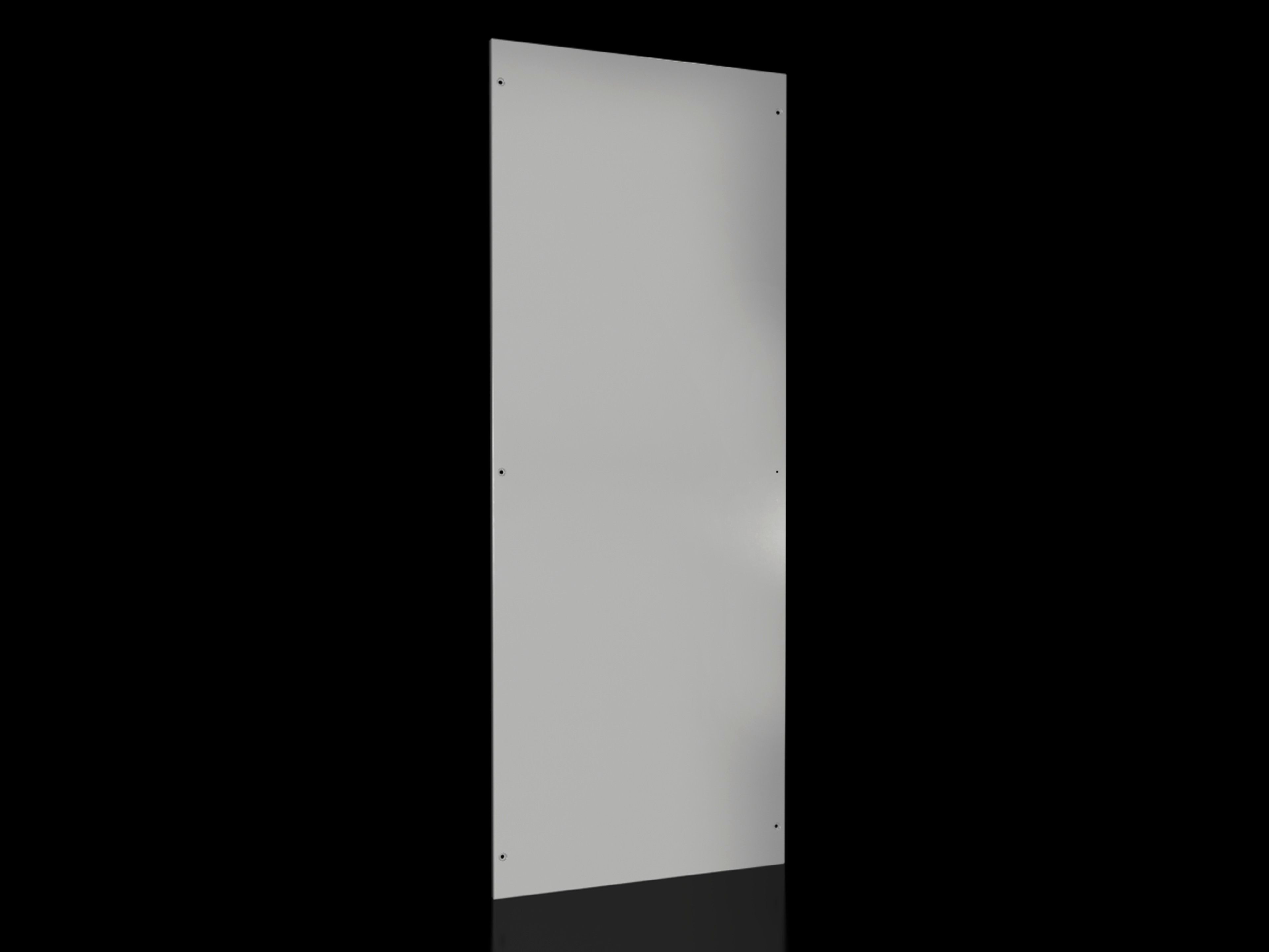

Rittal VX 8108.550 Side Panel - IP55, C4-H
Part Number: 8108550
Quick Summary
Rittal VX 8108.550 side panel provides robust enclosure protection for VX-series cabinets in harsh industrial environments. Many enclosures suffer from corrosion and inadequate sealing, risking downtime and maintenance costs. It offers DIN EN ISO 12944 C4-H coating, IP55 ingress protection, and UL Type 1 compatibility to meet global safety and reliability standards. The powder-coated sheet steel construction uses 1.5 mm material for rigidity, while the RAL 7035 finish keeps the system aligned with common plant color schemes. As a powder-coated VX side panel sold in a 2-pack with assembly parts included, it speeds installation and simplifies stocking, reducing downtime when replacing damaged panels in critical lines. This design choice also supports predictable maintenance planning and a lower total cost of ownership over the panel lifetime.
Product Information
Extended Description
8108550 Rittal: VX side panel, screw-fastened, for HxD: 2000x800 mm, sheet steel, C4-H
Article number
VX 8108.550
Design
Surface coating to DIN EN ISO 12944, corrosion protection class C4-H
Material
Sheet steel, 1.5 mm
Surface finish
Powder-coated
Colour
RAL 7035
Supply includes
Assembly parts
To fit
Enclosure type: VX C4-H | Height: = 2,000 mm | Depth: = 800 mm
IP protection category to IEC 60 529
IP 55
Type rating to UL 50E
Type 1
Basic material
Sheet steel
Packs of
2 pc(s).
EAN
4028177993686
ETIM 9
EC002524
ETIM 8
EC002524
ECLASS 8.0
27182101
Product description
VX side panel, screw-fastened, for HxD: 2000x800 mm, sheet steel, C4-H
Feature: Corrosion protection and material. Benefit: Extends service life in demanding environments, reducing replacement cycles and maintenance cost. Application: VX C4-H enclosures in manufacturing plants and outdoor installations with exposure to moisture and contaminants. Feature: IP55 and UL Type 1 compatibility. Benefit: Safe operation in dusty and light water exposure zones while ensuring compliance for control panels in North America and international sites. Application: Industrial automation installations requiring reliable ingress protection and certified enclosure performance. Feature: Powder-coated finish in RAL 7035 on 1.5 mm sheet steel. Benefit: Durable aesthetics and reduced repainting, simplifying plant standardization. Application: Painter-ready panels for fast commissioning and consistent appearance across equipment bays. Feature: Packs of two with assembly parts included. Benefit: Faster on-site replacement and reduced procurement touchpoints, lowering downtime during panel swaps. Application: Retrofit and spare-part stock for VX C4-H systems and rapid maintenance workflows. Feature: Screw-fastened design. Benefit: Simple, tool-friendly installation and removal for maintenance or upgrades. Application: Routine service in control cabinets where quick access is required and equipment uptime matters.
Get a Quick Quote for a Rittal 8108550
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8108550?
Enquire Now
FAQs
The VX 8108.550 is screw-fastened for straightforward installation. It fits VX C4-H enclosures with a 2000 mm height and 800 mm depth. Use the included assembly parts to secure the panel, ensuring a proper seal to maintain IP55 protection and overall enclosure integrity during retrofit or new builds.
Compatibility hinges on the enclosure height of 2000 mm and depth of 800 mm, 1.5 mm sheet steel material, powder-coated finish, and the C4-H corrosion protection coating. The panel is designed for VX C4-H type enclosures and ships as a 2-pack with assembly parts for efficient replacement.
Yes. The panel features DIN EN ISO 12944 C4-H coating and an IP55 rating, providing corrosion resistance and dust/water ingress protection appropriate for harsh industrial environments, including outdoor or humid locations where enclosure longevity is critical.
Key ratings include IP55 protection and UL Type 1 compatibility, with a C4-H coating. These indicate readiness for protective sealing in challenging environments and certification alignment for global electrical control panels, aiding safe operation and regulatory compliance across regions.
Using a 2-pack with assembly parts reduces field procurement steps and downtime during replacements, delivering lower maintenance costs and faster service. The corrosion-resistant finish and standardized color help minimize repainting, supporting a lower total cost of ownership over the panel’s lifecycle.
