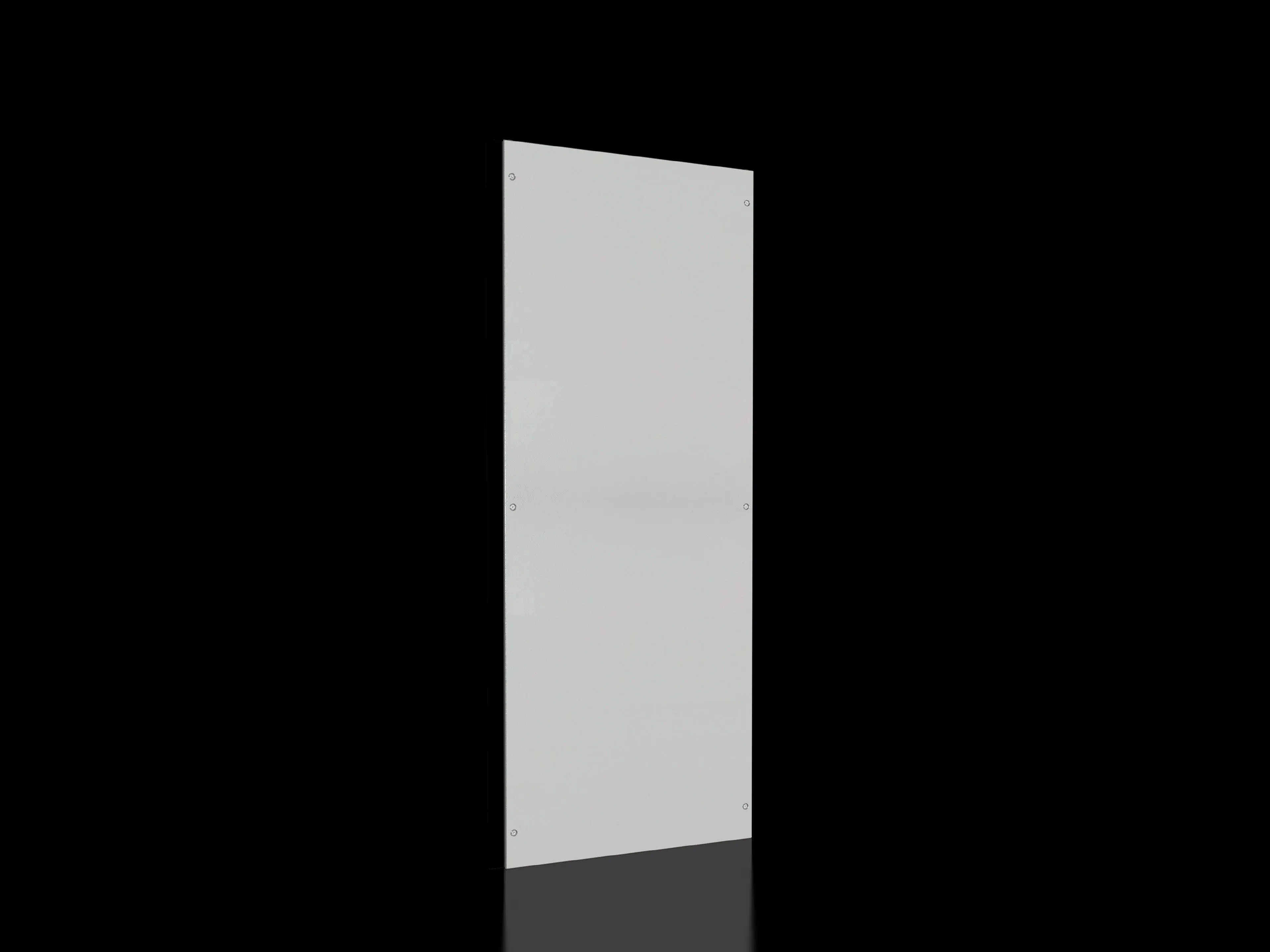

Rittal VX 8108760 VX EMC side panel - IP 55
Part Number: 8108760
Quick Summary
Rittal VX 8108760 VX EMC side panel delivers automatic potential equalisation and robust EMC protection for VX enclosures. Engineers often face grounding inconsistencies and EMI leakage in large control panels, causing downtime and costly rework. This panel achieves IP 55 protection and UL 50E Type 1 compliance in demanding environments, supporting safe operation and long service life. Its zinc magnesium coating with external powder coating provides corrosion resistance, while assembly parts simplify field installation, reducing commissioning time and startup risk. For scalable panel designs, this VX EMC side panel helps standardise construction and improves project predictability across automation deployments.
Product Information
Extended Description
8108760 Rittal: VX EMC side panel, for HD: 2000x800 mm
Article number
VX 8108.760
Product description
Automatic potential potential equalisation via assembly components, and a high level of EMC protection thanks to a special EMC seal.
Material
Sheet steel, 1.5 mm
Surface finish
with zinc magnesium coating | Powder-coated on the outside
Colour
RAL 7035
Supply includes
Assembly parts
Protection category to IEC 60 529
IP 55
Type rating to UL 50E
Type 1
To fit
Enclosure type:Â VX | Height:Â = 2,000 mm | Depth:Â = 800 mm
Packs of
2 pc(s).
Weight/pack
38.8 kg
EAN
4028177947245
ETIM 9
EC002524
ECLASS 8.0
27189264
Product description
VX EMC side panel, for HD: 2000x800 mm
Feature: Automatic potential equalisation via assembly components → Business Impact: Reliable grounding and reduced stray currents lower racking time and reliability risks in complex control cabinets. Application: Large VX enclosure installations in process automation and factory floors. Feature: EMC protection through a dedicated EMC seal → Business Impact: Enhanced EMI shielding improves signal integrity and compliance with industry EMI/EMC requirements. Application: Sensitive electronics and PLCs in vibration-prone environments. Feature: 1.5 mm sheet steel with zinc magnesium coating and powder-coated exterior → Business Impact: High mechanical durability with corrosion resistance, lowering maintenance costs over the cabinet life cycle. Application: Industrial environments with exposure to humidity or contaminants. Feature: Protective IP 55 rating and UL 50E Type 1 compatibility → Business Impact: Barrier against dust and water ingress while meeting electrical enclosure standards. Application: Enclosures deployed in manufacturing bays and assembly lines. Feature: VX to fit 2000x800 mm enclosures, supplied in packs of two with assembly parts → Business Impact: Streamlined ordering and installation, reducing lead times and simplifying logistics. Application: OEMs and integrators standardising VX cabinet configurations. Feature: Color and finish – RAL 7035, zinc magnesium coating plus powder coating → Business Impact: Consistent aesthetics and long-term appearance maintenance, aiding customer acceptance. Application: OEMs prioritising uniform cabinet appearance across lines. Feature: Weight per pack 38.8 kg → Business Impact: Manageable handling and safer installation in mid-height mounting tasks. Application: On-site assembly and service routines. Feature: EAN 4028177947245 and compliance metadata (ETIM EC002524, ECLASS 27189264) → Business Impact: Smooth procurement and accurate data management for ERP systems. Application: Master data synchronization and BOM accuracy.
Get a Quick Quote for a Rittal 8108760
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8108760?
Enquire Now
FAQs
The VX 8108.760 is designed for VX enclosures up to 2000x800 mm and ships in a two-pack with assembly parts. Begin by ensuring the cabinet is de-energised, align mounting holes with the enclosure frame, and fix using the included assembly components. The process supports quick field installation and minimizes downtime, with clearly documented steps in the included info sheet.
The side panel delivers automatic potential equalisation via assembly components and an EMC seal to reduce radiated and conducted interference. It also provides IP 55 ingress protection and UL 50E Type 1 compatibility, helping you meet standard enclosure and EMI requirements for industrial automation environments.
Yes. The VX EMC side panel is designed for VX enclosures such as the 2000x800 mm configuration and is suitable for typical factory automation environments where IP 55 protection and EM shielding are beneficial. For hazardous environments, verify facility-specific protections and compliance requirements before deployment.
UL 50E Type 1 is a recognized standard for electrical enclosure enclosures, indicating suitability for indoor use with basic environmental protection. The VX 8108.760’s Type 1 rating supports safe enclosure performance in standard industrial spaces, aiding risk mitigation during panel assembly and field service.
By providing reliable grounding, EMI suppression, and durable coatings, the panel reduces rework and EMI-related failures, lowering maintenance and downtime costs over the cabinet life. Its straightforward installation and standard VX compatibility also shorten project timelines, improving ROI for panel builds and automation initiatives.
