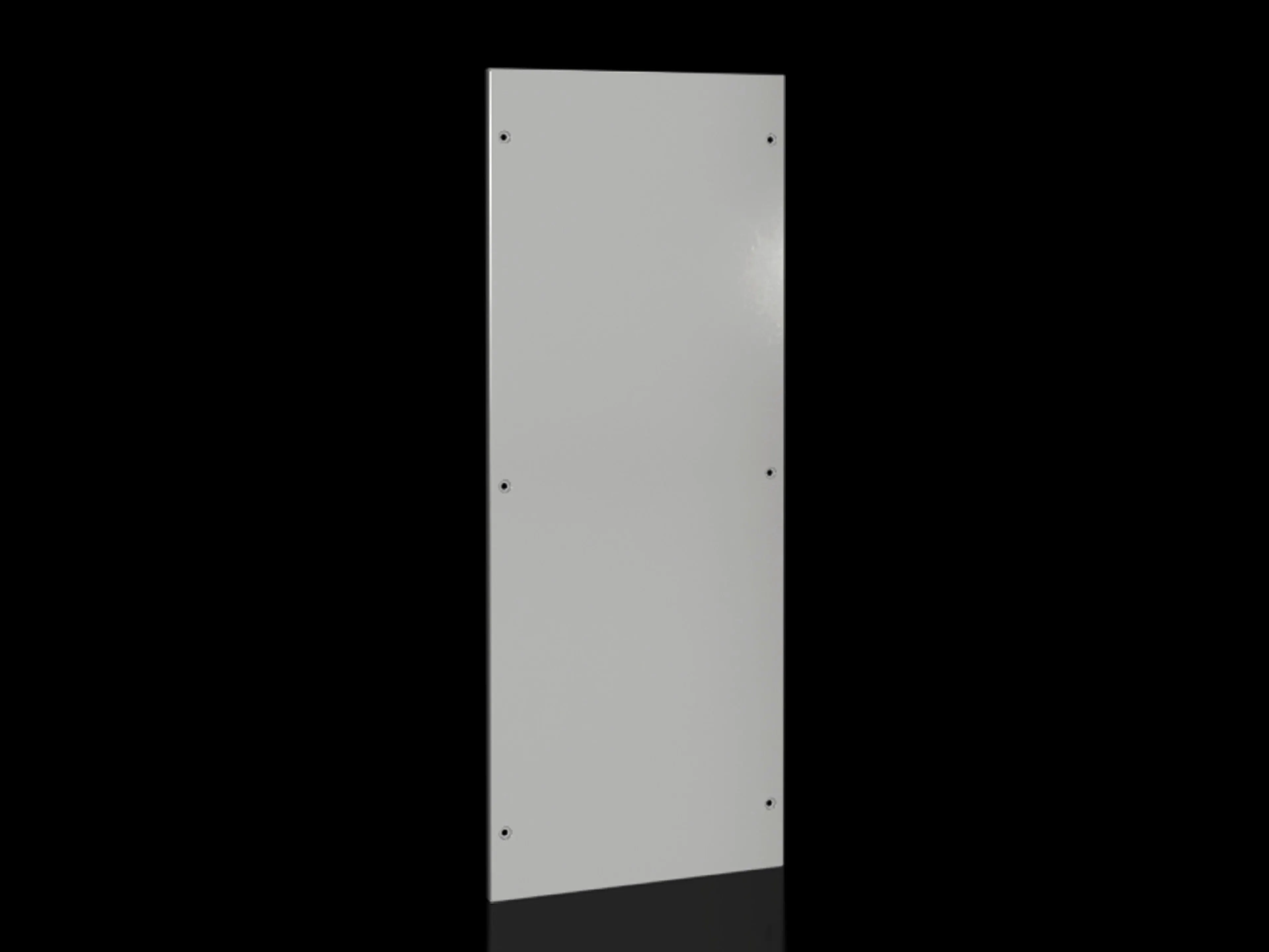

Rittal VX 8115.245 Side Panel - IP55, 1,200x500
Part Number: 8115245
Quick Summary
Rittal VX 8115.245 Side Panel is a screw-fastened sheet steel panel for VX enclosures, providing weatherproof containment in mounted systems. In busy panel shops, long installation times and gaps in protection can escalate downtime and warranty concerns. It carries IP 55 protection and UL 50E Type 1 compliance, ensuring reliable performance across controlled environments and field installations. Together with its clip-in panel holder and durable powder finish, the solution reduces installation risk while supporting scalable VX configurations. Designed for quick mounting in VX assembly processes and compatible with standard VX components, it supports lean maintenance cycles and safer service. This combination delivers faster time-to-value for panel builders and end users alike.
Product Information
Extended Description
8115245 Rittal: VX Side panel, screw-fastened, for HD: 1200x500 mm, sheet steel
Article number
VX 8115.245
Benefits
Time-saving assembly thanks to clip-in side panel holder
Material
Sheet steel, 1.5 mm
Surface finish
Dipcoat-primed, powder-coated on the outside
Colour
RAL 7035
Supply includes
Assembly parts
To fit
Enclosure type:Â VX | Height:Â = 1,200 mm | Depth:Â = 500 mm
IP protection category to IEC 60 529
IP 55
Type rating to UL 50E
Type 1
Basic material
Sheet steel
Packs of
2 pc(s).
Weight/pack
14.8 kg
PCF per pack (cradle-to-gate)
56.4Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177827516
ETIM 9
EC002524
ECLASS 8.0
27182101
Product description
VX Side panel, screw-fastened, for HD: 1200x500 mm, sheet steel
Clip-in panel holder design reduces assembly time. This feature translates into lower tool use, simplified alignment, and fewer handling steps, which minimizes downtime on busy lines. It is particularly effective when retrofitting VX enclosures or during new builds that require rapid scoping and install. 1.5 mm sheet steel with dipcoat priming and outside powder coating. Benefit: durable finish and better environmental resistance. Application: suitable for indoor and moderately harsh environments within industrial facilities. IP 55 protection and UL 50E Type 1 compliance. Benefit: reliable dust and water ingress protection and safe operation in commercial and light industrial settings. Application: control cabinets and switchgear housings where enclosure integrity matters. Color RAL 7035 and defined to fit VX 1200x500 HD. Benefit: consistent aesthetics and precise fit, reducing rework. Application: cosmetic and functional compatibility with VX enclosures and mounting hardware. Pack details and sustainability: 2 pcs per pack, weight 14.8 kg per pack; PCF 56.4 kg CO2 eq per pack (Category B). Benefit: improved logistics and lower environmental footprint; Application: procurement and environmental reporting.
Get a Quick Quote for a Rittal 8115245
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8115245?
Enquire Now
FAQs
The VX 8115.245 side panel is designed to fit VX enclosures with a height of 1,200 mm and a depth of 500 mm. It ships as a two-pack with assembly parts included, ensuring a straightforward retrofit or initial build. This compatibility minimizes mis-orders and accelerates procurement for panel installers and system integrators.
The clip-in panel holder enables fast, tool-light mounting by aligning and locking panels into the VX frame without multiple screws. This reduces handling steps, minimizes misalignment, and shortens overall installation time, which is especially valuable during large-scale panel builds or on busy shop floors.
With an IP 55 rating, the side panel provides protection against dust and water jets, making it suitable for indoor industrial environments and moderately protected outdoor applications where enclosure integrity is a concern. The powder coated finish also enhances durability in demanding factory settings.
The panel meets IEC based IP protection for class IP 55 and UL 50E Type 1 for electrical enclosure assemblies. The finish is dipcoat-primed with an outside powder coating, and the color is RAL 7035, ensuring consistent compliance with standard industrial cabinet aesthetics and performance requirements.
Each pack contains 2 panels weighing 14.8 kg, with a cradle-to-gate PCF of 56.4 kg CO2 eq (Category B), supporting lifecycle assessment goals. Two-pack packaging improves shipping efficiency and reduces packaging overhead, contributing to lean procurement and faster installation cycles in automation projects.
