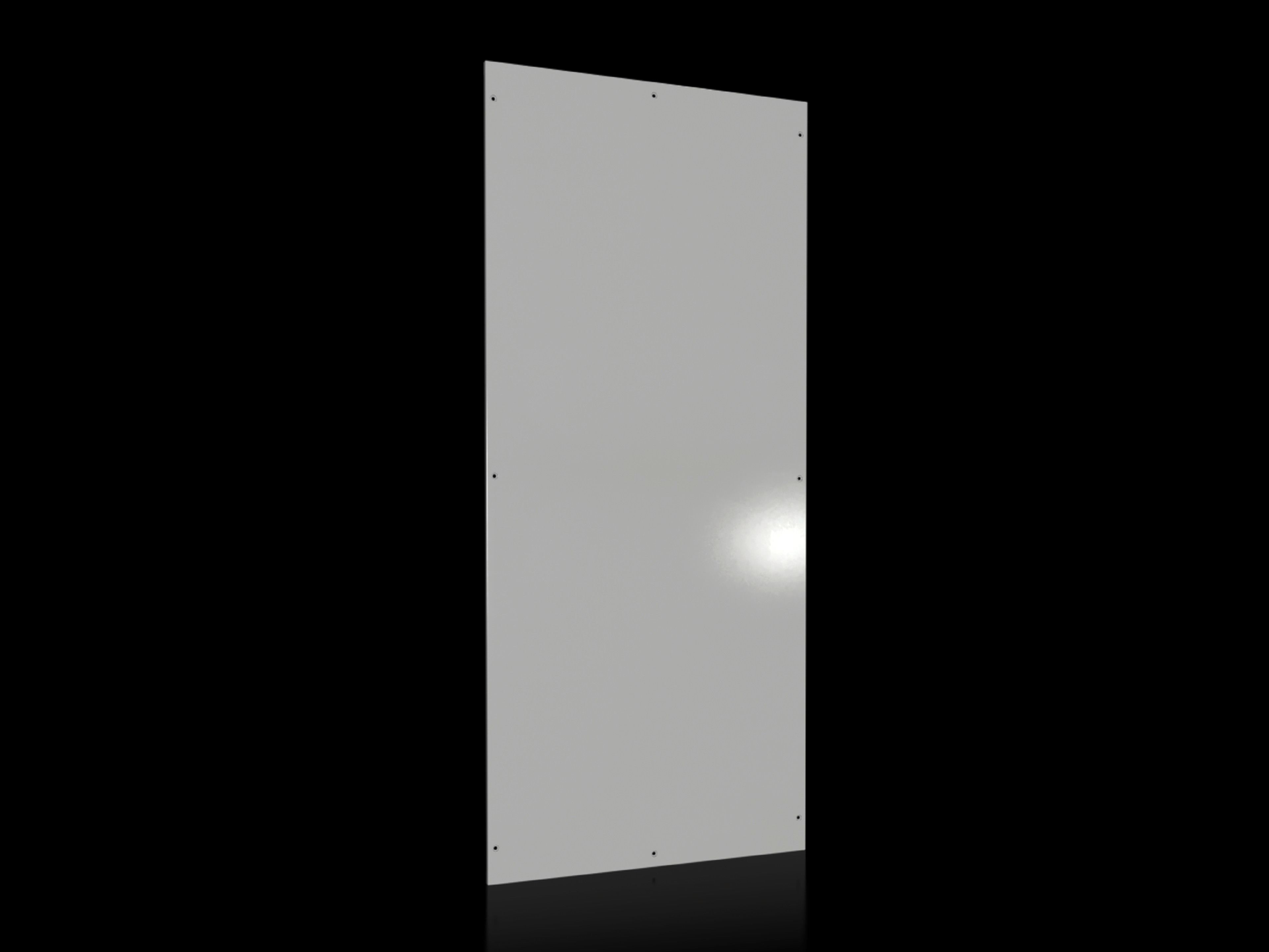

Rittal VX 8120.245 Side Panel for VX Enclosures - IP55
Part Number: 8120245
Quick Summary
Rittal VX 8120.245 Side Panel is a screw-fastened enclosure accessory for VX cabinets, delivering robust side protection. The design minimizes installation time and misalignment with clip-in side panel holders. It carries IP 55 protection and UL 50E Type 1 compliance, helping maintain safe, compliant enclosures. Designed for VX enclosure ecosystems, it pairs with clip-in holders for streamlined installs and fast field upgrades. This panel ships in packs of two, with assembly parts included, supporting scalable projects and reducing on-site downtime. For buyers, the IP55 and UL 50E Type 1 certifications provide regulatory assurance, while the 1.5 mm sheet steel and RAL 7035 finish ensure durability and a consistent aesthetic across modular VX systems.
Product Information
Extended Description
8120245 Rittal: VX Side panel, screw-fastened, for HD: 2200x1000 mm, sheet steel
Article number
VX 8120.245
Benefits
Time-saving assembly thanks to clip-in side panel holder
Material
Sheet steel, 1.5 mm
Surface finish
Dipcoat-primed, powder-coated on the outside
Colour
RAL 7035
Supply includes
Assembly parts
To fit
Enclosure type: VX | Height: = 2,200 mm | Depth: = 1,000 mm
IP protection category to IEC 60 529
IP 55
Type rating to UL 50E
Type 1
Basic material
Sheet steel
Packs of
2 pc(s).
Weight/pack
52.2 kg
PCF per pack (cradle-to-gate)
198.9 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177921597
ETIM 7.0
EC002524
ECLASS 8.0
27182101
Product description
VX Side panel, screw-fastened, for HD: 2200x1000 mm, sheet steel
The VX 8120.245 side panel uses a clip-in holder that simplifies installation. This design reduces handling steps and aligns panels consistently, cutting field labor. Application: suitable for VX enclosure heights of 2,200 mm and depths of 1,000 mm in new builds or upgrades. Specification: construction uses 1.5 mm sheet steel. Business impact: robust panels resist impact and maintain rigidity under vibration. Application: ideal for factory floors, switchgear rooms, and harsh environments. Surface finish: dip coat-primed with powder coating on the outside. Impact: provides corrosion resistance and a durable appearance across years of service. Application: consistent RAL 7035 color helps with visual organization and safety labeling. Protection attributes: IP 55 protection to IEC 60 529. Impact: protects internal components from dust ingress and water exposure. Application: aligns with typical VX enclosure requirements for controlled environments. Electrical compliance: UL 50E Type 1 rating. Impact: supports safe integration into electrical assemblies and cabinet layouts. Application: suitable for commercial and industrial enclosure installations. Logistics and sustainability: packs of two include assembly parts, with a total weight of 52.2 kg per pack. Impact: streamlines shipping, stacking, and on-site handling for larger VX projects. Environment: PCF cradle-to-gate is 198.9 kg CO2 eq per pack (Cat B), reflecting product weight.
Get a Quick Quote for a Rittal 8120245
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8120245?
Enquire Now
FAQs
It is designed for VX enclosures with a height of 2,200 mm and depth of 1,000 mm, making it a direct fit for VX 2200x1000 configurations.
The panel is made from 1.5 mm sheet steel with a dip-coated exterior and powder-coated finish in RAL 7035, and it carries IP55 protection for dust and water ingress.
Each order is a two-pack that includes assembly parts; total weight per pack is 52.2 kg, and the kit supports efficient on-site installation.
The product holds UL 50E Type 1 and IP55 ratings, signaling electrical enclosure suitability and protective performance in industrial environments.
Clip-in side panel holders simplify mounting, reducing labor and downtime, while the durable finish and standard VX fit support long-term maintenance and module upgrades.
