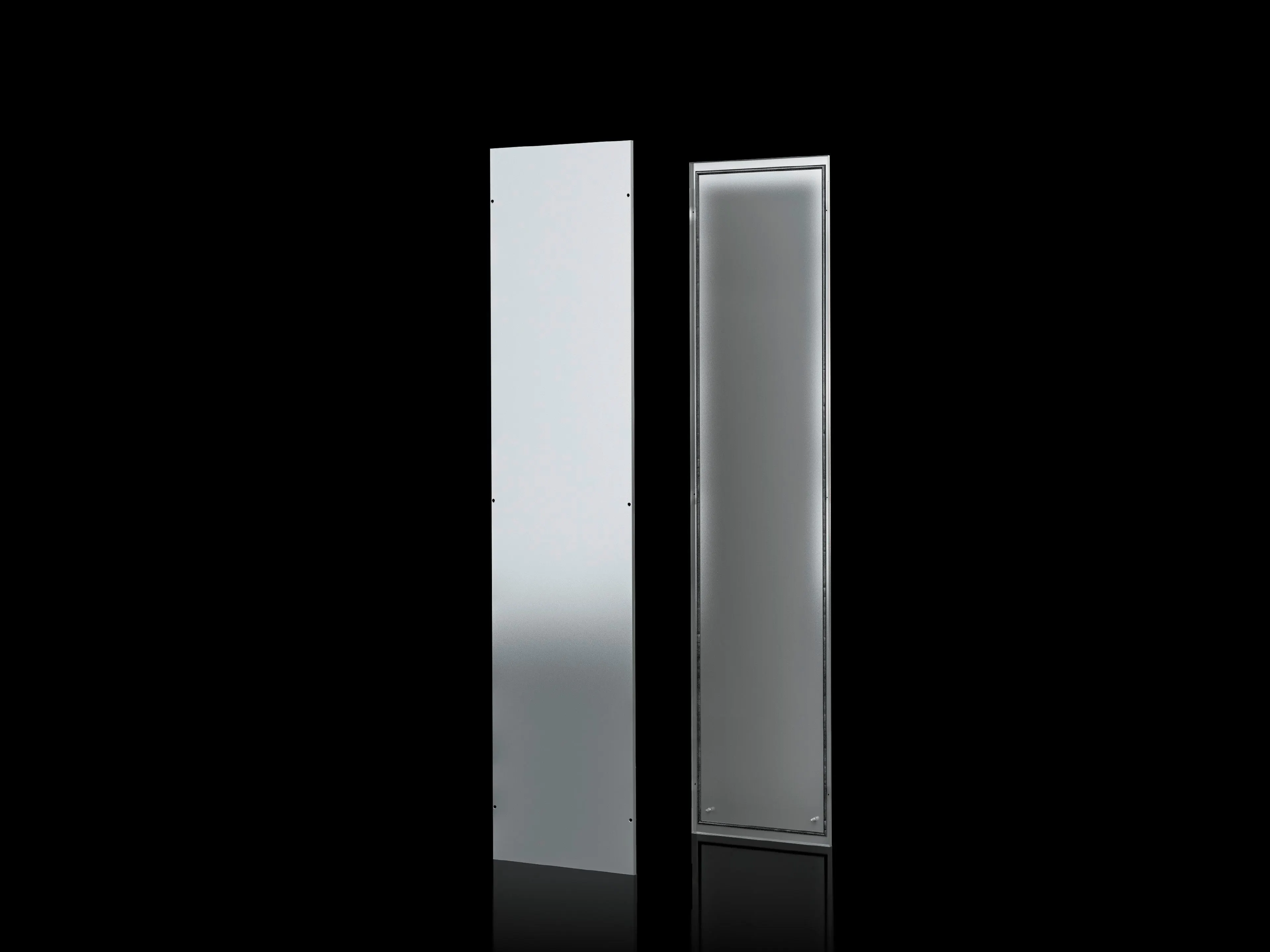

Rittal TS 8126.235 TS Side Panel - IP55 for TS Enclosures
Part Number: 8126235
Quick Summary
The Rittal TS 8126.235 TS Side Panel provides secure, screw-fastened enclosure sides for TS/TS IT cabinets. Engineers often struggle with EMI gaps, grounding inconsistencies, and slow panel installation when adding side panels. With IP55 protection, 1.5 mm sheet steel, and a dip-primed, powder-coated finish in RAL 7035, this panel offers robust reliability and corrosion resistance. The product aligns with ETIM EC002524 and ECLASS 27182101 classifications for straightforward procurement and regulatory consistency, while the two-piece pack and included assembly parts simplify installation. For improved safety and performance, enclosure panel holders support optional fitting from either inside or outside the enclosure, delivering tangible value in busy control rooms.
Product Information
Extended Description
8126235 Rittal: TS Side panel, screw-fastened, for TS, TS IT, for WD: 2200x600 mm, Sheet steel
Article number
TS 8126.235
Benefits
Automatic potential equalisation and higher EMC protection due to enclosure panel holders with earthing insert
Material
Sheet steel, 1.5 mm
Surface finish
Dipcoat-primed, powder-coated on the outside
Colour
RAL 7035
Supply includes
Assembly parts
Note
Enclosure panel holders may optionally be fitted from the inside or outside of the enclosure
To fit
Enclosure type: TS | TS IT | Height: 2,200 mm | Depth: 600 mm
IP protection category to IEC 60 529
IP 55
Basic material
Sheet steel
Packs of
2 pc(s).
Weight/pack
36.2 kg
Customs tariff number
94039910
EAN
4028177213425
ETIM 9
EC002524
ECLASS 8.0
27182101
Product description
TS Side panel, screw-fastened, for TS, TS IT, for WD: 2200x600 mm, Sheet steel
Feature → 2-piece screw-fastened side panels in 1.5 mm sheet steel. Business Impact → Delivers a rigid enclosure perimeter, improving EMI shielding and mechanical integrity; Application → TS and TS IT cabinets in manufacturing lines. Feature → IP55 protection per IEC 60529. Business Impact → Protects against dust and water ingress, reducing downtime and maintenance costs; Application → Outdoor or semi-enclosed plant areas. Feature → Dipcoat-primed, powder-coated outside in RAL 7035. Business Impact → Enhanced corrosion resistance and low maintenance, extending cabinet life; Application → Harsh factory environments. Feature → Compatibility with TS enclosures up to WD 2200x600 mm. Business Impact → Straightforward integration without adapters, accelerating project timelines; Application → Standard TS/TS IT enclosures. Feature → Includes assembly parts with option to mount panel holders from inside or outside. Business Impact → Installation flexibility lowers service time and supports retrofits; Application → Controlled environment upgrades. Feature → Packs of 2 with weight per pack 36.2 kg. Business Impact → Predictable shipping and staging for project planning; Application → Assembly and logistics planning for large enclosures.
Get a Quick Quote for a Rittal 8126235
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8126235?
Enquire Now
FAQs
The panel ships as a two-piece pack with assembly parts for quick mounting. It is screw-fastened and supports mounting from either inside or outside the enclosure, offering flexible access during retrofit or upgrade projects.
The panel includes earthing insert-equipped panel holders that enable automatic potential equalisation, reducing EMI gaps and improving grounding consistency within TS and TS IT enclosures.
Yes. It is designed to fit TS and TS IT enclosure types with a height of 2,200 mm and a depth of 600 mm, ensuring straightforward integration without adapters.
Key standards include IP 55 protection under IEC 60529. The product also references ETIM EC002524 and ECLASS 27182101 classifications for procurement consistency, with EAN 4028177213425.
The powder-coated finish and 1.5 mm sheet steel resist corrosion, reducing maintenance. Faster installation and improved EMC performance shorten downtime and extend enclosure life, boosting plant productivity.
