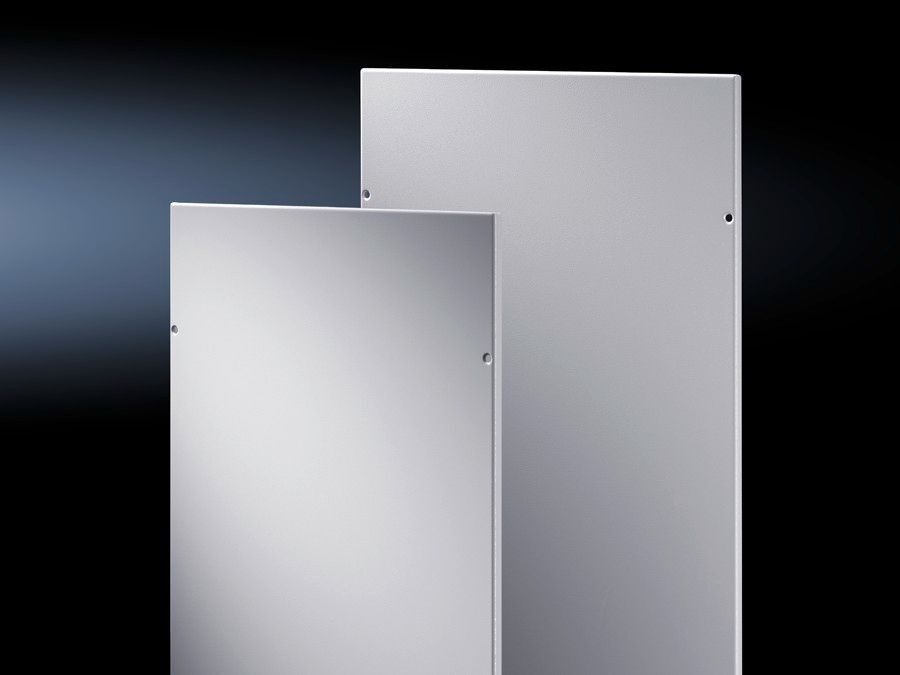

Rittal TS 8128.235 Side Panel for TS Cabinets - IP55
Part Number: 8128235
Quick Summary
The Rittal TS 8128.235 Side Panel provides secure enclosure protection for TS cabinets in industrial automation. This panel addresses common maintenance pain points such as EMI leakage and ingress by delivering a tight seal and robust mounting. With IP55 protection per IEC 60529 and a durable 1.5 mm sheet steel core finished in a dipcoat-primed, powder-coated exterior, it supports reliable operation in harsh factory environments. The solution also aligns with TS and TS IT enclosure families, including 2200x800 mm WD compatibility, and supports automatic potential equalisation via earthing inserts. Businesses benefit from faster installation, improved uptime, and consistent EMC performance for critical control and power distribution applications.
Product Information
Extended Description
8128235 Rittal: TS Side panel, screw-fastened, for TS, TS IT, for WD: 2200x800 mm, Sheet steel
Article number
TS 8128.235
Benefits
Automatic potential equalisation and higher EMC protection due to enclosure panel holders with earthing insert
Material
Sheet steel, 1.5 mm
Surface finish
Dipcoat-primed, powder-coated on the outside
Colour
RAL 7035
Supply includes
Assembly parts
Note
Enclosure panel holders may optionally be fitted from the inside or outside of the enclosure
To fit
Enclosure type:Â TS | TS IT | Height:Â 2,200 mm | Depth:Â 800 mm
IP protection category to IEC 60 529
IP 55
Basic material
Sheet steel
Packs of
2 pc(s).
Weight/pack
50 kg
Customs tariff number
94039910
EAN
4028177237223
ETIM 9
EC002524
ECLASS 8.0
27182101
Product description
TS Side panel, screw-fastened, for TS, TS IT, for WD: 2200x800 mm, Sheet steel
Feature IP55-rated sheet steel side panel. Benefit Protects internal components from dust and water ingress while supporting reliable EMC performance. Application Suitable for TS and TS IT enclosures in manufacturing and process environments. Feature Earthing insert-enabled enclosure panel holders. Benefit Enables automatic potential equalisation and higher EMC protection, reducing grounding issues and compliance risk. Application Ideal for control panels where reliable grounding and shielding are critical. Feature Dipcoat-primed, powder-coated exterior finish. Benefit Improves corrosion resistance and exterior durability, lowering maintenance costs and repaint cycles. Application Suitable for both indoor and harsh production zones. Feature 1.5 mm sheet steel construction. Benefit Provides structural rigidity and long service life under vibration and thermal cycling. Application Fits standard TS enclosure panels without modification. Feature Two-pack packaging with assembly parts included. Benefit Streamlines logistics and installation, lowering on-site labor time and stocking complexity. Application Helpful for batch installations and refurbishments. Feature Compatibility with TS | TS IT (WD 2200x800 mm). Benefit Ensures fast, drop-in replacement with no custom fabrication. Application Ideal for upgrading existing TS systems in mid-size cabinets and process lines.
Get a Quick Quote for a Rittal 8128235
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8128235?
Enquire Now
FAQs
Install the panel by aligning it with the enclosure framework and securing with the included assembly parts. The TS 8128.235 is designed to fit TS and TS IT enclosures at WD 2200x800 mm, allowing inside or outside mounting of enclosure panel holders as needed for site-specific access and serviceability.
The panel provides IP55 protection in accordance with IEC 60529, offering dust ingress protection and water spray resistance suitable for typical factory environments. The 1.5 mm sheet steel construction further reinforces mechanical durability against vibration and impact.
Yes. It is designed to fit TS and TS IT enclosure families with a WD of 2200x800 mm. This ensures a straightforward upgrade path or replacement without custom fabrication, enabling consistent enclosure performance across TS-based control systems.
The panel uses sheet steel at 1.5 mm thickness, with a dipcoat-primed base and a powder-coated exterior in RAL 7035. This combination provides corrosion resistance, a durable outer finish, and uniform appearance across cabinets in the production area.
Each pack contains two side panels plus assembly parts. This packaging supports faster project deployment, reduces on-site procurement needs, and simplifies stock management for mid-size TS installations or panel refurbishments.
