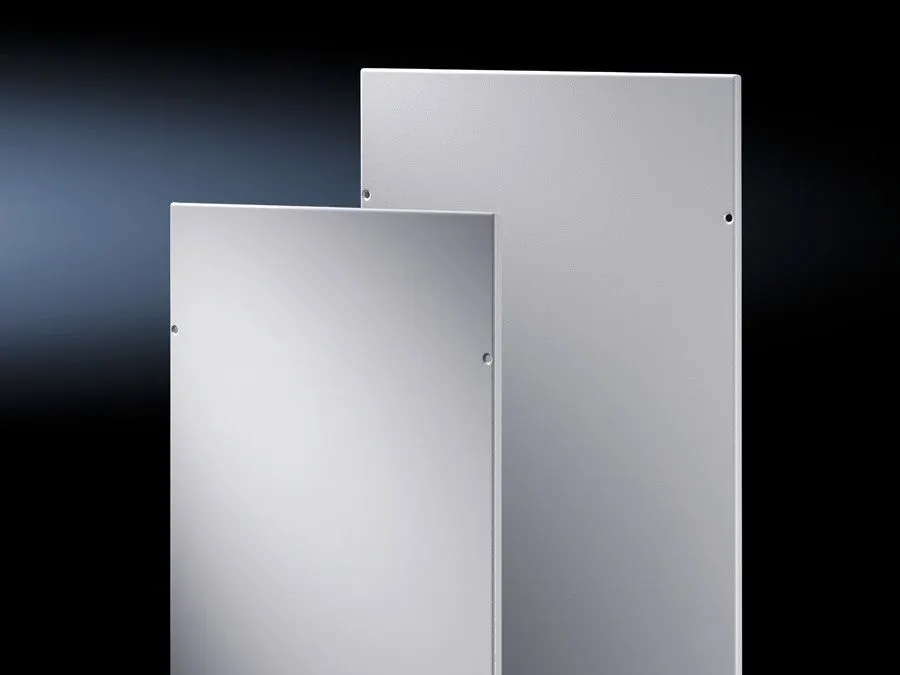

Rittal TS 8145.235 Side Panel - IP55
Part Number: 8145235
Quick Summary
Rittal TS 8145.235 Side Panel provides rugged protection for TS enclosures used in industrial control cabinets. Engineers often wrestle with EMI leakage and slow mounting when panels lack reliable earthing and flexible installation options. The IP55 rating and EMC-friendly features help ensure compliant, maintenance-friendly operation in harsh environments. With assembly parts included, this side panel integrates with TS and TS IT frames, delivering reliable performance and cost efficiency. This standardization also helps procurement teams streamline sourcing, reduce part variety, and maintain lean spare-parts inventories. Coupled with a dip-coated, powder-coated exterior in RAL 7035 and 1.5 mm sheet steel, it delivers enduring protection and consistent aesthetics.
Product Information
Extended Description
8145235 Rittal: TS Side panel, screw-fastened, for TS, TS IT, for WD: 1400x500 mm, Sheet steel
Article number
TS 8145.235
Benefits
Automatic potential equalisation and higher EMC protection due to enclosure panel holders with earthing insert
Material
Sheet steel, 1.5 mm
Surface finish
Dipcoat-primed, powder-coated on the outside
Colour
RAL 7035
Supply includes
Assembly parts
Note
Enclosure panel holders may optionally be fitted from the inside or outside of the enclosure
To fit
Enclosure type: TS | TS IT | Height: 1,400 mm | Depth: 500 mm
IP protection category to IEC 60 529
IP 55
Basic material
Sheet steel
Packs of
2 pc(s).
Weight/pack
19.2 kg
Customs tariff number
94039910
EAN
4028177266124
ETIM 9
EC002524
ECLASS 8.0
27182101
Product description
TS Side panel, screw-fastened, for TS, TS IT, for WD: 1400x500 mm, Sheet steel
Feature: Screw-fastened side panel designed for TS and TS IT enclosures. Business Impact: Facilitates quick installation, easy maintenance, and reduced field downtime. Application: Fits WD 1400x500 mm panels in factory automation cabinets and data-center racks. In practice, technicians can swap panels with minimal tools, lowering commissioning time and maintenance costs. Feature: 1.5 mm sheet steel construction. Business Impact: Enhanced mechanical protection against impact and wear in demanding environments. Application: Suitable for industrial control panels exposed to vibration and dust. Feature: Dipcoat-primed with powder-coated exterior in RAL 7035. Business Impact: Superior corrosion resistance and long-term color stability, reducing repainting and lifecycle costs. Application: Outdoor or semi-exposed indoor installations where aesthetics and durability matter. Feature: IP55 enclosure protection and earthing insert for automatic potential equalisation. Business Impact: Improves EMC performance and compliance while simplifying grounding procedures. Application: Critical in sensitive control cabinets and equipment racks. Feature: Supply includes assembly parts and note on optional inside/outside mounting of panel holders. Business Impact: Streamlines installation logistics and provides flexibility for retrofit projects. Application: TS and TS IT frames that require adaptable mounting options for panel holders and earthing.
Get a Quick Quote for a Rittal 8145235
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8145235?
Enquire Now
FAQs
The TS 8145.235 Side Panel is designed for TS and TS IT enclosure types with WD 1400x500 mm dimensions. It is screw-fastened, ships in packs of two, and includes assembly parts, enabling straightforward integration into existing TS frames without special tools.
The panel uses 1.5 mm sheet steel with a dip-coat primed and powder-coated exterior in RAL 7035, delivering robust mechanical protection and a durable finish. It carries an IP55 rating per IEC 60529, suitable for dusty and moderately wet environments.
The enclosure panel holders include an earthing insert that enables automatic potential equalisation, improving EMC shielding and reducing the risk of EMC-related faults in control cabinets.
Yes. The product offers downloadable instructions in DE/EN/FR and EN, FR/PL/RU/ZH as well as a PDF page version, ensuring guidance is accessible for multinational teams and field technicians.
Packs of 2 panels are supplied, with a weight of approximately 19.2 kg per pack. The package includes assembly parts, and the design accommodates optional inside or outside mounting of enclosure panel holders for flexible retrofits.
