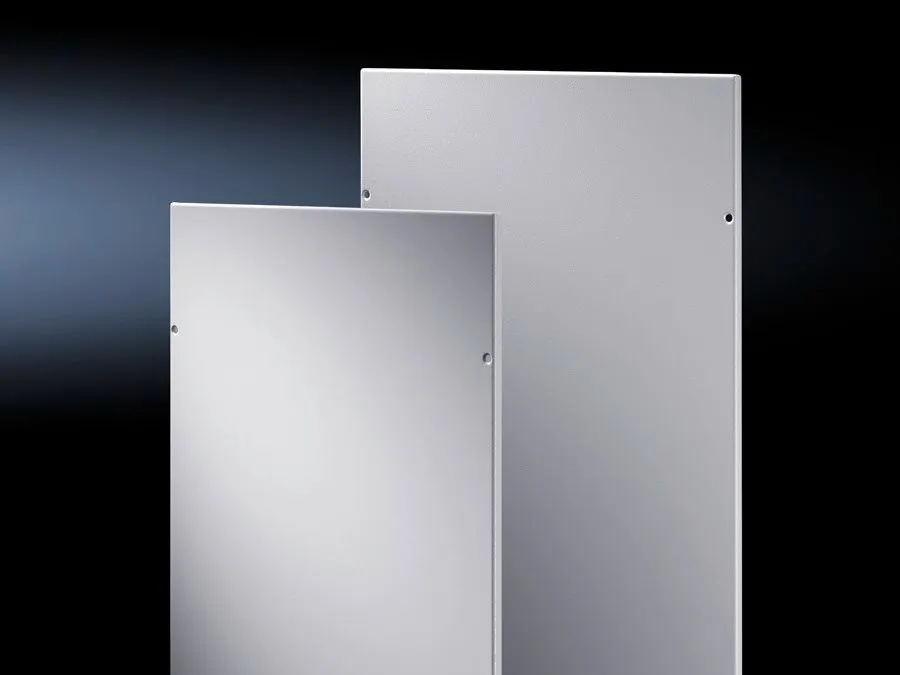

Rittal TS 8165.235 Side Panel for TS IT – IP55
Part Number: 8165235
Quick Summary
Rittal TS 8165.235 Side Panel protects TS enclosures, delivering durable side protection for 1600x500 mm WD. Too often, improper panels cause EMC gaps, complicate grounding, and raise service costs. With IP55 protection and 1.5 mm sheet steel, plus dip-coated exterior and earthing insert for automatic potential equalisation, this panel helps meet EMC and safety requirements. Manufactured for TS and TS IT, it ships with assembly parts and offers flexible installation options to streamline procurement and reduce integration risk.
Product Information
Extended Description
8165235 Rittal: TS Side panel, screw-fastened, for TS, TS IT, for WD: 1600x500 mm, Sheet steel
Article number
TS 8165.235
Benefits
Automatic potential equalisation and higher EMC protection due to enclosure panel holders with earthing insert
Material
Sheet steel, 1.5 mm
Surface finish
Dipcoat-primed, powder-coated on the outside
Colour
RAL 7035
Supply includes
Assembly parts
Note
Enclosure panel holders may optionally be fitted from the inside or outside of the enclosure
To fit
Enclosure type:Â TS | TS IT | Height:Â 1,600 mm | Depth:Â 500 mm
IP protection category to IEC 60 529
IP 55
Basic material
Sheet steel
Packs of
2 pc(s).
Weight/pack
19.8 kg
Customs tariff number
94039910
EAN
4028177386723
ETIM 9
EC002524
ECLASS 8.0
27182101
Product description
TS Side panel, screw-fastened, for TS, TS IT, for WD: 1600x500 mm, Sheet steel
IP55 protection and sheet steel construction provide rugged enclosure integrity in dusty and damp environments, reducing ingress risk while maintaining dependable EMC performance for the enclosure. This translates to fewer field faults, lower maintenance costs, and longer service intervals in industrial settings. The screw-fastened design with included assembly parts enables quick retrofit or replacement, cutting commissioning times and minimizing downtime during panel swaps. The earthing insert enables automatic potential equalisation, delivering improved protective earth continuity and higher EMC protection without extra manual steps on site. The powder-coated exterior and dipcoat-primed finish deliver durable corrosion resistance and color stability (RAL 7035), supporting long-term reliability in harsh environments. Two-pack packaging (2 pcs) with a total weight of 19.8 kg per pack supports efficient logistics and bulk installations for multiple enclosures.
Get a Quick Quote for a Rittal 8165235
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8165235?
Enquire Now
FAQs
To install, align the side panel with the enclosure opening, use the supplied assembly parts, and attach with screws through the pre-drilled holes. The panel supports both inside and outside mounting of enclosure panel holders, enabling flexible installation. Ensure the earthing insert is seated to enable potential equalisation and EMC protection once the panel is secured.
Yes. The TS 8165.235 Side Panel is designed for TS and TS IT enclosures and is specified to fit WD: 1600x500 mm. This compatibility helps maintain consistent shielding and mechanical fit across the TS family, reducing integration risk during upgrades or expansions.
Key specs include sheet steel 1.5 mm material, a dipcoat-primed exterior with powder-coated finish, color RAL 7035, IP55 protection per IEC 60529, weight 19.8 kg per pack, and packs of 2. The supply includes assembly parts, and the article number is TS 8165.235, enabling straightforward cataloging and ordering.
The panel provides IP55 protection under IEC 60529, supporting use in environments with dust and water exposure. It is also referenced in classifications such as ETIM 9 EC002524 and ECLASS 8.0 27182101, which assist with system integration and procurement workflows, though CE labeling specifics should be verified in your regional compliance docs.
Selecting this panel reduces EMC risk and grounding complexity thanks to the earthing insert, shortens installation time with included parts, and improves lifecycle reliability due to robust steel construction and corrosion resistance. The two-pack packaging supports bulk projects, delivering cost efficiency for multi-enclosure deployments and streamlined maintenance planning.
