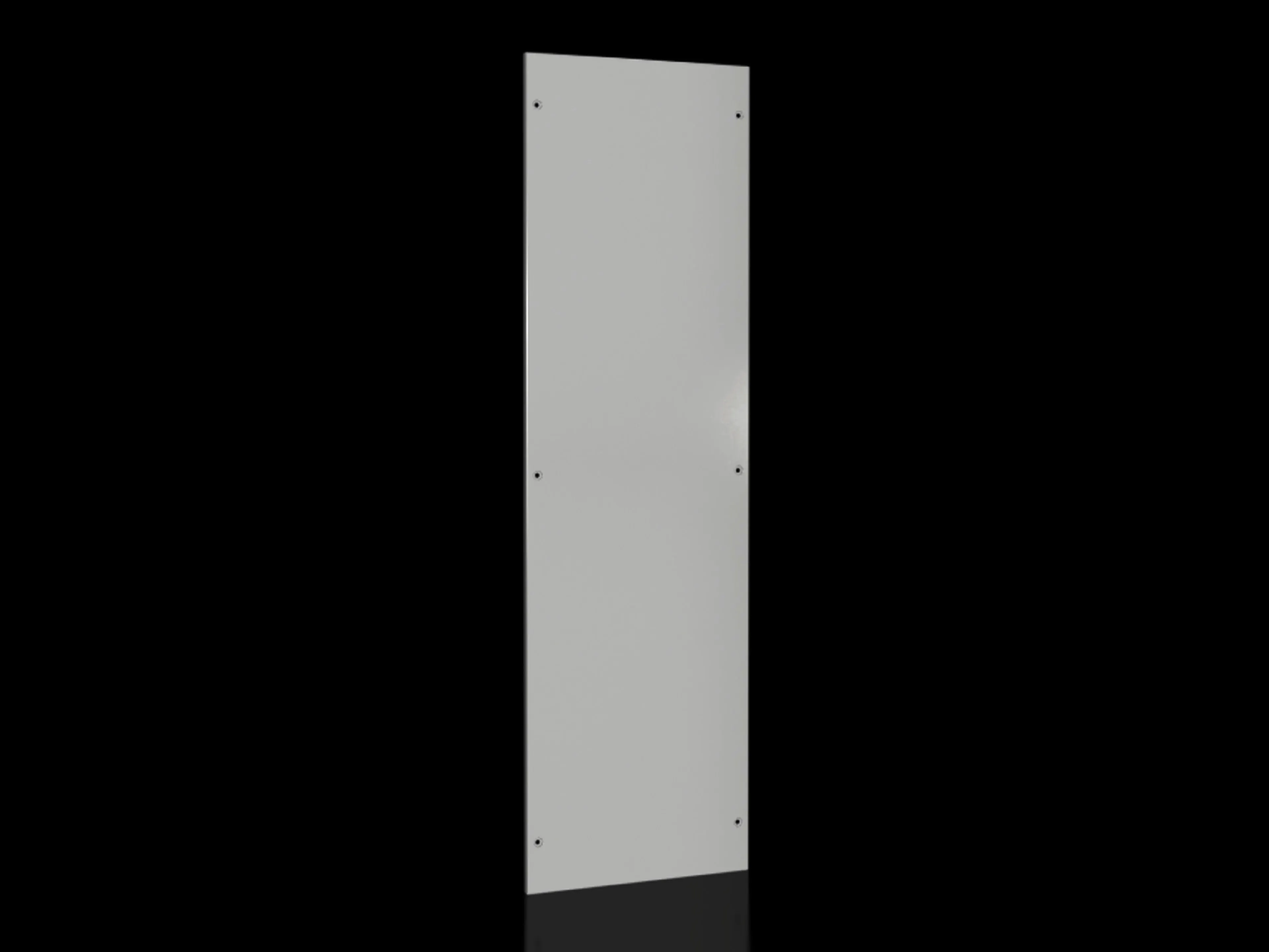

Rittal VX 8165.245 Side Panel for VX Enclosures - IP 55
Part Number: 8165245
Quick Summary
Rittal VX 8165.245 Side Panel enables secure, screw-fastened enclosure sides for VX cabinets in industrial automation. In busy production environments, engineers often struggle with slow assembly and misalignment between panels, which impacts uptime. It provides IP 55 protection and UL 50E Type 1 ratings, supporting CE conformity and streamlined documentation for global installations. The combination of clip-in side panel holder, dip-coated primed finish, and RAL 7035 coloring delivers long-term reliability, easier maintenance, and consistent aesthetics across your control cabinets, MCCs, and automation enclosures.
Product Information
Extended Description
8165245 Rittal: VX Side panel, screw-fastened, for HD: 1600x500 mm, sheet steel
Article number
VX 8165.245
Benefits
Time-saving assembly thanks to clip-in side panel holder
Material
Sheet steel, 1.5 mm
Surface finish
Dipcoat-primed, powder-coated on the outside
Colour
RAL 7035
Supply includes
Assembly parts
To fit
Enclosure type: VX | Height: = 1,600 mm | Depth: = 500 mm
IP protection category to IEC 60 529
IP 55
Type rating to UL 50E
Type 1
Basic material
Sheet steel
Packs of
2 pc(s).
Weight/pack
19.4 kg
PCF per pack (cradle-to-gate)
73.9 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177827639
ETIM 9
EC002524
ECLASS 8.0
27182101
Product description
VX Side panel, screw-fastened, for HD: 1600x500 mm, sheet steel
Feature: Clip-in side panel holder enables time-saving assembly and easier field adjustments → Business Impact: Reduces installation time by eliminating fiddly hardware and rework, increasing line throughput → Application: Ideal for high-mix, low-volume manufacturing lines where quick panel changes are frequent. Feature: 1.5 mm sheet steel provides robust, rigid side panels → Business Impact: Improves enclosure integrity against vibration and impact, lowering replacement costs → Application: Suitable for machinery spaces with moderate to high vibration. Feature: Dip coat-primed, powder-coated outside with RAL 7035 color → Business Impact: Delivers corrosion resistance and uniform appearance, reducing maintenance cycles → Application: Outdoor or semi-exposed environments and standardized control rooms. Feature: Fits VX enclosure height 1600 mm and depth 500 mm → Business Impact: Ensures precise mating with existing VX systems, minimizing gaps and airflow disruptions → Application: VX-based cabinets and modular enclosures in plant layouts. Feature: IP 55 protection and UL 50E Type 1 rating → Business Impact: Enhances safety and regulatory compliance, enabling safer operations and easier procurement → Application: Enclosures in dusty or damp factory floors and electrical rooms. Feature: Pack of two with assembly parts included → Business Impact: Simplifies stocking and installation, reducing supply chain friction and on-site waits → Application: Maintenance swaps and new installs in batch deployments.
Get a Quick Quote for a Rittal 8165245
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8165245?
Enquire Now
FAQs
To install the VX 8165.245 Side Panel, confirm VX enclosure compatibility with a height of 1600 mm and depth of 500 mm. Use the provided clip-in side panel holder for quick alignment, and verify that assembly parts are included in the two-pack. Typical steps involve aligning the panel, securing via clip-in mechanism, and performing a final check for fit and seal integrity.
Durability comes from 1.5 mm sheet steel with a dip coat-primed base and a powder-coated exterior in RAL 7035. This construction provides rigidity, resistance to corrosion, and a consistent finish. The IP 55 protection rating adds dust and water ingress protection, making it suitable for semi-exposed or damp plant areas.
Yes, the VX 8165.245 Side Panel is rated UL 50E Type 1, indicating suitability for electrical enclosures used in light to moderate indoor environments. This supports safer operation in control cabinets and automation panels, while helping with procurement and regulatory paperwork. The panel ships in packs of two with all necessary assembly parts.
IP 55 protects against limited dust ingress and water spray, reducing the risk of contamination and corrosion inside VX enclosures. This translates to lower cleaning and maintenance frequency, improved uptime, and safer electrical connections in typical factory floors and damp environments.
Plan for a two-pack with included assembly parts to streamline stocking and installation. Consider the VX enclosure dimensions (1600x500 mm) to ensure a precise fit, and factor in the clip-in holder advantages for faster assembly. The standard color and coating simplify downstream maintenance and replacement parts alignment.
