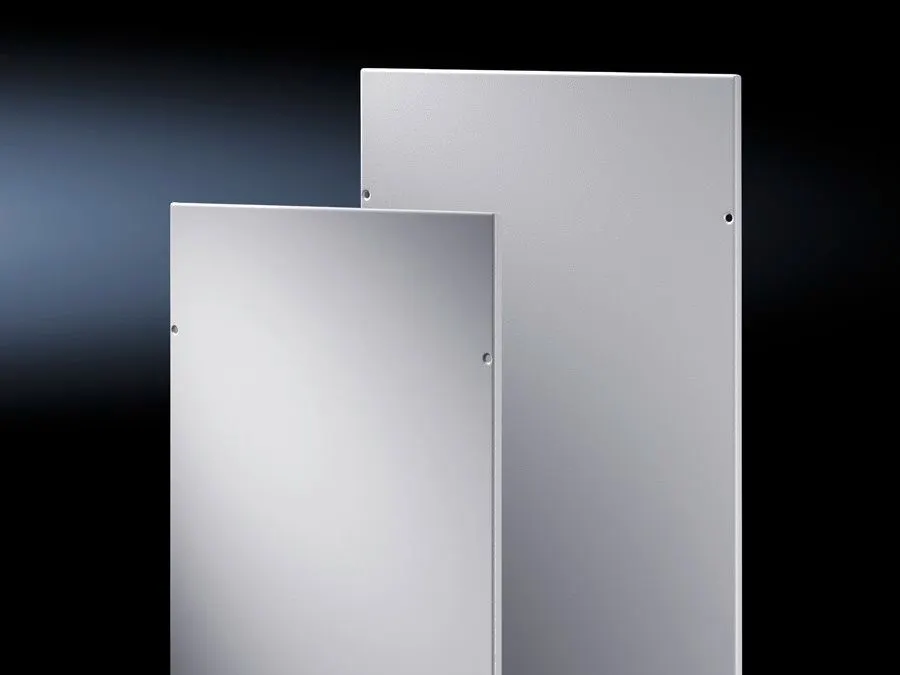

Rittal 8166235 Side Panel for TS - RAL 7035, IP55
Part Number: 8166235
Quick Summary
Rittal 8166235 Side Panel for TS is a durable, screw-fastened panel solution for TS enclosures. Engineers frequently face challenges maintaining EMC protection and reliable earthing when mounting panels, especially in busy control rooms or outdoor sites. This panel delivers IP55 protection, is made from 1.5 mm sheet steel, and features a dipcoat-primed, powder-coated exterior in RAL 7035, with earthing insert options for automatic potential equalisation. Timely availability, compatibility with TS and TS IT sizes, and easy installation help reduce project lead times. The result is improved enclosure integrity, consistent shielding, and lower lifecycle costs for automation projects.
Product Information
Extended Description
8166235 Rittal: TS Side panel, screw-fastened, for TS, TS IT, for WD: 1600x600 mm, Sheet steel
Article number
TS 8166.235
Benefits
Automatic potential equalisation and higher EMC protection due to enclosure panel holders with earthing insert
Material
Sheet steel, 1.5 mm
Surface finish
Dipcoat-primed, powder-coated on the outside
Colour
RAL 7035
Supply includes
Assembly parts
Note
Enclosure panel holders may optionally be fitted from the inside or outside of the enclosure
To fit
Enclosure type:Â TS | TS IT | Height:Â 1,600 mm | Depth:Â 600 mm
IP protection category to IEC 60 529
IP 55
Basic material
Sheet steel
Packs of
2 pc(s).
Weight/pack
23.6 kg
Customs tariff number
94039910
EAN
4028177205192
ETIM 9
EC002524
ECLASS 8.0
27182101
Product description
TS Side panel, screw-fastened, for TS, TS IT, for WD: 1600x600 mm, Sheet steel
Feature → Business Impact → Application: Screw-fastened side panel design enables rapid field replacement and maintenance, reducing downtime and replacing damaged panels without tools; immediate improvement in EMC performance due to enclosure panel holders with earthing inserts supports reliable grounding and shielding across industrial automation installations. Feature → Application: 1.5 mm sheet steel construction offers robust protection in harsh environments, while the powder-coated exterior in RAL 7035 delivers long-term corrosion resistance in manufacturing floors. Feature → Application: IP55 rating provides dust and water ingress protection for TS and TS IT enclosures used in both indoor control rooms and semi-outdoor sites, helping compliance with basic enclosure standards. Feature → Application: Includes assembly parts and the option to mount enclosure panel holders from inside or outside, streamlining installation and serviceability. Feature → Application: Packaged as two panels per pack, weight per pack 23.6 kg, enabling predictable logistics and scalable mounting across multiple cabinets.
Get a Quick Quote for a Rittal 8166235
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8166235?
Enquire Now
FAQs
Yes. The TS 8166.235 side panel is designed to fit TS and TS IT enclosure types with a 1600 mm height and 600 mm depth, using screw-fastened mounting and supplied assembly parts for straightforward installation.
The panel uses screw-fastened mounting and includes enclosure panel holders with earthing insert options, enabling automatic potential equalisation. It can be fitted from inside or outside the enclosure, depending on space and access considerations.
The panel is made from 1.5 mm sheet steel, finished with a dipcoat-primed, powder-coated exterior in RAL 7035, and carries an IP55 protection rating for dust and water ingress resistance.
The enclosure panel holders include earthing inserts, enabling automatic potential equalisation which enhances EMC protection and reduces the risk of grounding issues in TS enclosures used in automation plants.
Panels are supplied in packs of 2, with a weight of 23.6 kg per pack, facilitating predictable shipping, handling, and installation planning across multiple TS enclosures.
