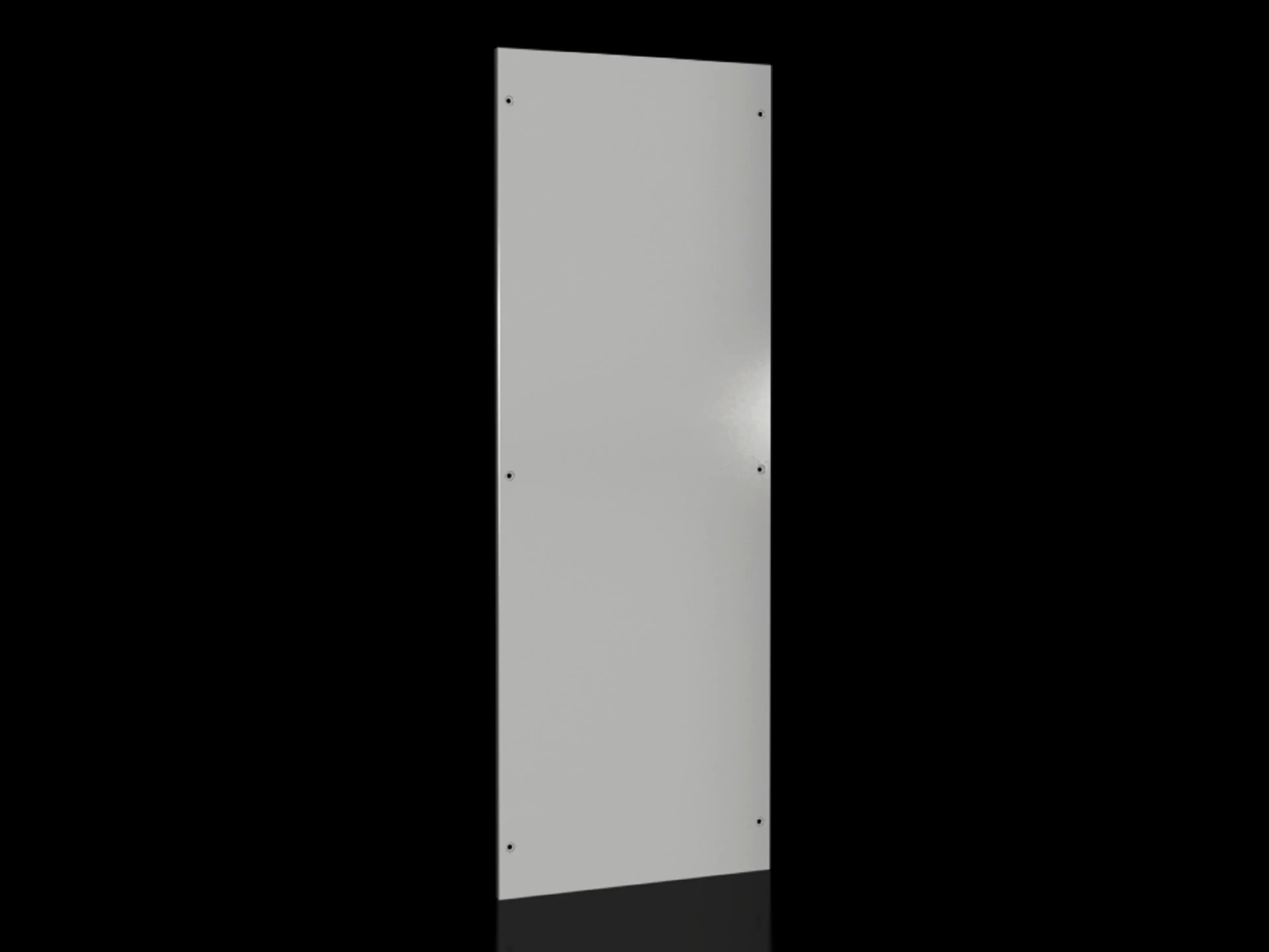

Rittal VX 8166.245 Side Panel - IP55, UL Type 1
Part Number: 8166245
Quick Summary
Rittal VX 8166.245 Side Panel secures VX enclosures with screw-fastened steel panels for efficient cabinet protection. In many installations, quick, error-free assembly and reliable sealing against dust and moisture are ongoing challenges. It carries IP 55 protection and UL 50E Type 1 compliance, plus a dipcoat-primed, powder-coated exterior in RAL 7035 for long service life. The combination of clip-in side panel holder and included assembly parts delivers faster setup, easier maintenance, and predictable performance across VX configurations. In practice, this translates to lower labor costs, improved uptime, and a better footprint for scalable industrial cabinet systems. This makes it a practical, cost-conscious choice for manufacturers standardizing VX-based control panels.
Product Information
Extended Description
8166245 Rittal: VX Side panel, screw-fastened, for HD: 1600x600 mm, sheet steel
Article number
VX 8166.245
Benefits
Time-saving assembly thanks to clip-in side panel holder
Material
Sheet steel, 1.5 mm
Surface finish
Dipcoat-primed, powder-coated on the outside
Colour
RAL 7035
Supply includes
Assembly parts
To fit
Enclosure type: VX | Height: = 1,600 mm | Depth: = 600 mm
IP protection category to IEC 60 529
IP 55
Type rating to UL 50E
Type 1
Basic material
Sheet steel
Packs of
2 pc(s).
Weight/pack
23.2 kg
PCF per pack (cradle-to-gate)
88.4 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177924932
ETIM 9
EC002524
ECLASS 8.0
27182101
Product description
VX Side panel, screw-fastened, for HD: 1600x600 mm, sheet steel
Feature: 1.5 mm sheet steel construction with a dipcoat-primed, powder-coated finish in RAL 7035. Impact: Delivers durable enclosure sides with high resistance to corrosion, wear, and cleaning agents, extending service life in harsh environments. Application: Ideal for VX cabinet walls in manufacturing floors and field installations where frequent access and protection against dust are needed. Feature: Screw-fastened side panels and clip-in holder enable time-saving assembly and consistent gaps. Impact: Reduces installation time by simplifying alignment and reducing mounting errors, which lowers labor costs and downtime. Application: Compatible with VX enclosures at 1600x600 HD dimensions, enabling quick upgrades or retrofits without reworking entire frames. Feature: IP55 protection and UL 50E Type 1 rating provide environmental and electrical compliance. Impact: Ensures safe operation in dusty or damp environments and under control panel testing regimes, reducing risk of ingress and equipment damage. Application: Suitable for metal enclosures in automated lines, process plants, and data-collection cabinets. Feature: Includes assembly parts and packs of two panels per bundle. Impact: Streamlines purchasing, inventory planning, and logistics; weight per pack of 23.2 kg supports standard pallet configurations. Application: Useful for series production where VX configurations change frequently. Feature: Sustainability data such as PCF per pack (88.4 kg CO2 eq, Cat B) informs lifecycle assessments. Impact: Supports environmental reporting and corporate responsibility goals while maintaining performance and cost efficiency. Application: Fits into LCA workflows when evaluating VX accessory ecosystems.
Get a Quick Quote for a Rittal 8166245
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8166245?
Enquire Now
FAQs
Yes. The VX 8166.245 side panel is designed to fit VX enclosures with a height of 1600 mm and depth of 600 mm. It uses a screw-fastened design with a clip-in holder for quick alignment, and it is supplied as a two-pack with assembly parts to streamline installation and replacements.
The panel delivers IP55 protection per IEC 60 529 and UL 50E Type 1 compliance. This combination supports reliable operation in dusty and damp environments and under typical electrical enclosure inspection regimes, while the powder-coated exterior in RAL 7035 enhances corrosion resistance and appearance.
The clip-in holder simplifies alignment and reduces the number of field fasteners required, which shortens installation time and minimizes setup errors. For VX configurations, this translates to faster project startups, easier retrofits, and less on-site labor without sacrificing enclosure integrity.
Each bundle includes two side panels with assembly parts and related hardware. The weight per pack is 23.2 kg, making it suitable for standard palletization and straightforward logistics. This packaging supports efficient warehousing and predictable shipping costs for VX accessory kits.
Yes. Each pack has a PCF of 88.4 kg CO2 eq (Category B), enabling lifecycle assessments and sustainability reporting. The two-pack design minimizes waste and aligns with LCA workflows, while maintaining the performance and protective qualities required for VX enclosures in industrial settings.
