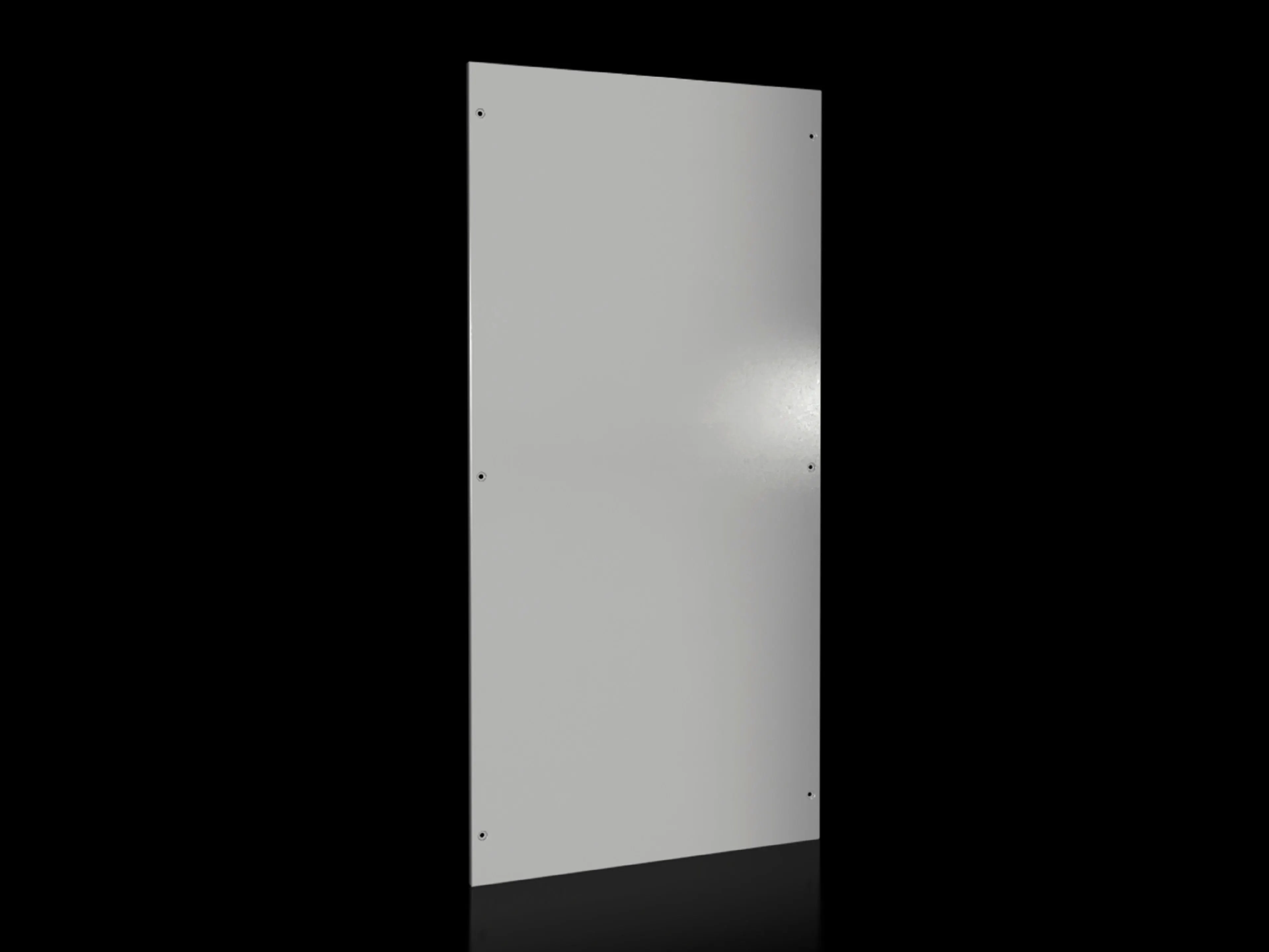

Rittal VX 8168.245 Side Panel for VX Enclosures - IP 55
Part Number: 8168245
Quick Summary
Rittal VX 8168.245 Side Panel is a screw-fastened enclosure accessory for VX cabinets in industrial automation. This solution addresses the common challenge of lengthy on-site panel installation and misalignment. The panel meets IP 55 protection and UL 50E Type 1 compliance, supporting reliable operation in challenging environments. For procurement and maintenance teams, the two-panel pack with clip-in side panel holder reduces stocking complexity. The durable coating and factory color, RAL 7035, help ensure a professional appearance in control rooms while withstanding factory use. Together, these features translate to faster commissioning, lower downtime, and predictable lifecycle costs for automation projects.
Product Information
Extended Description
8168245 Rittal: VX Side panel, screw-fastened, for HD: 1600x800 mm, sheet steel
Article number
VX 8168.245
Benefits
Time-saving assembly thanks to clip-in side panel holder
Material
Sheet steel, 1.5 mm
Surface finish
Dipcoat-primed, powder-coated on the outside
Colour
RAL 7035
Supply includes
Assembly parts
To fit
Enclosure type: VX | Height: = 1,600 mm | Depth: = 800 mm
IP protection category to IEC 60 529
IP 55
Type rating to UL 50E
Type 1
Basic material
Sheet steel
Packs of
2 pc(s).
Weight/pack
30.8 kg
PCF per pack (cradle-to-gate)
117.3 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177924949
ETIM 9
EC002524
ECLASS 8.0
27182101
Product description
VX Side panel, screw-fastened, for HD: 1600x800 mm, sheet steel
Feature → Business Impact → Application: Clip-in side panel holder enables time-saving assembly, reducing field labor and inspection cycles; ideal for high-mix, high-changeover automation lines where quick panel swaps minimize downtime and expedite line changeovers. Feature → Business Impact → Application: Sheet steel at 1.5 mm with dipcoat-primed and powder-coated exterior delivers robust wear resistance in manufacturing environments, lowering repaint and maintenance costs while ensuring consistent aesthetics in control rooms. Feature → Business Impact → Application: Matching VX enclosure geometry (HD 1600x800 mm) guarantees a precise fit, reducing retrofit risks and facilitating plug-and-play integration with VX systems during expansions or relocations. Feature → Business Impact → Application: Packs of 2 with included assembly parts streamline purchasing, reduce vendor touchpoints, and simplify logistics for maintenance projects or batch deployments. Feature → Business Impact → Application: PCF of 117.3 kg CO2 eq per pack (Category B) supports sustainability reporting, enabling green procurement programs and lifecycle impact assessment. Feature → Business Impact → Application: Compliance alignment with IP 55 and UL 50E Type 1 along with ETIM/ECLASS codes improves supplier data quality and procurement automation for industrial customers.
Get a Quick Quote for a Rittal 8168245
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8168245?
Enquire Now
FAQs
Yes. VX 8168.245 is designed to fit VX enclosure heights of 1600 mm and depths of 800 mm, using a screw-fastened, clip-in side panel holder for fast, alignment-accurate installation. The kit includes assembly parts to simplify on-site mounting and ensure a secure seal.
The panel uses sheet steel, 1.5 mm thick, with a dipcoat-primed base and powder-coated exterior in RAL 7035. It provides IP 55 protection per IEC 60529 and UL 50E Type 1 compliance, supporting safe operation in demanding industrial environments.
Yes, the IP 55 rating ensures protection against dust and water ingress suitable for many indoor and moderately harsh conditions. The powder-coated exterior adds corrosion resistance, making it appropriate for factory floors and semi-outdoor installations where enclosure integrity is critical.
Beyond IP 55 and UL 50E Type 1, the product is listed with ETIM EC002524 and ECLASS 8.0 27182101, which improves data quality in procurement systems and enables seamless integration with MRP and e-procurement workflows.
The two-panel pack with clip-in holders reduces installation time and field labor, shortening maintenance windows and expediting replacements. Packaging includes assembly parts, improving stocking efficiency and enabling faster commissioning of expansions or corrective actions on critical control panels.
