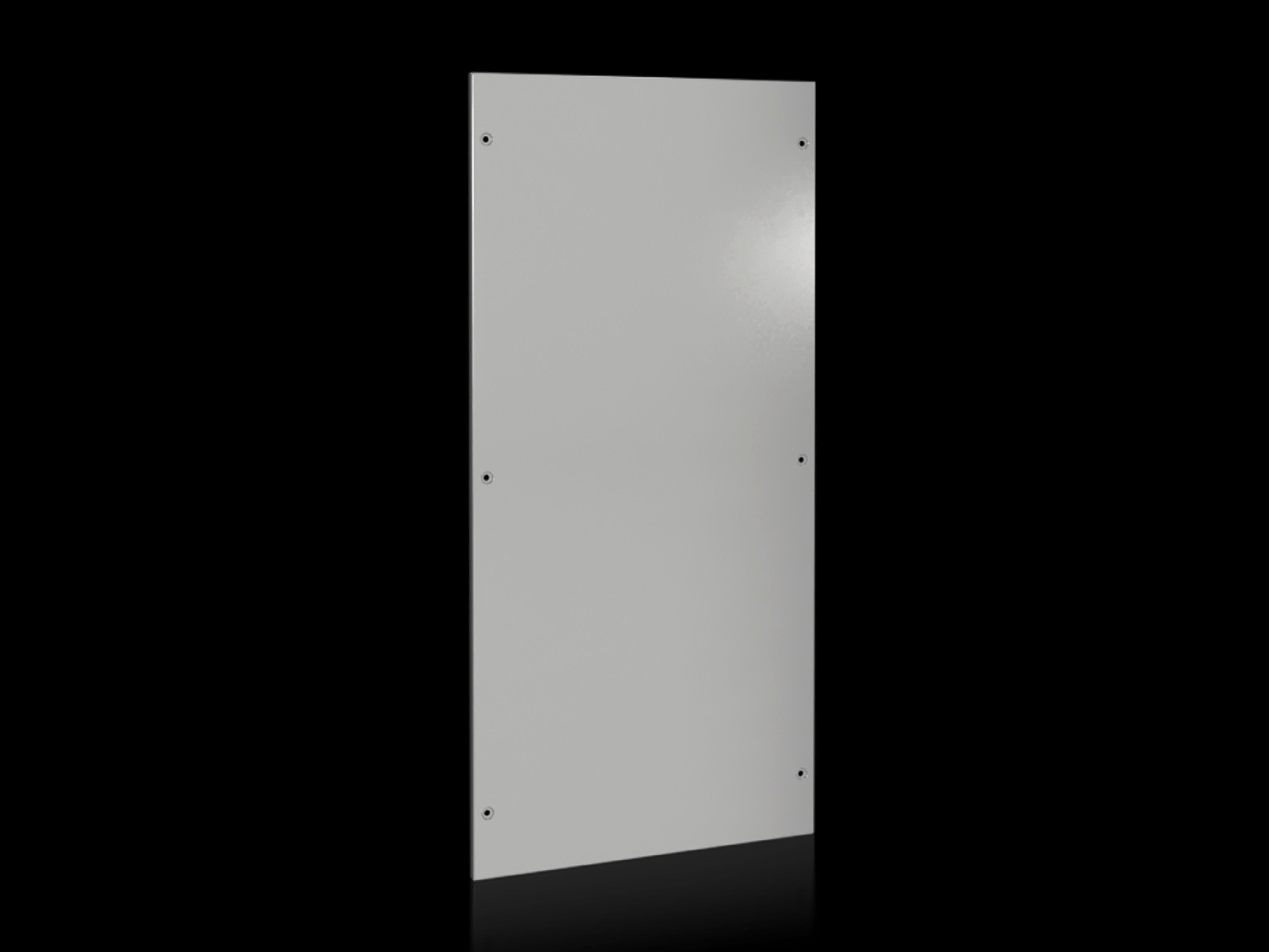

Rittal VX 8170.245 Side Panel - IP55, 1200x600, Clip-in
Part Number: 8170245
Quick Summary
The Rittal VX 8170.245 Side Panel seals VX enclosures, enabling quick, secure control cabinet assembly. In projects with tight schedules, lengthy field mounting and alignment issues can derail commissioning. This panel meets IP55 protection and UL 50E Type 1 safety standards, with a 1.5 mm sheet steel body and a clip-in side panel holder for repeatable fit. The dipcoat-primed, powder-coated exterior in RAL 7035 delivers durable service life, while the 1200×600 mm fit supports standardized VX enclosure configurations. For automation and electrical control applications, it reduces downtime, simplifies logistics, and lowers lifecycle costs through predictable installation and robust protection.
Product Information
Extended Description
8170245 Rittal: VX Side panel, screw-fastened, for HD: 1200x600 mm, sheet steel
Article number
VX 8170.245
Benefits
Time-saving assembly thanks to clip-in side panel holder
Material
Sheet steel, 1.5 mm
Surface finish
Dipcoat-primed, powder-coated on the outside
Colour
RAL 7035
Supply includes
Assembly parts
To fit
Enclosure type: VX | Height: = 1,200 mm | Depth: = 600 mm
IP protection category to IEC 60 529
IP 55
Type rating to UL 50E
Type 1
Basic material
Sheet steel
Packs of
2 pc(s).
Weight/pack
17.4 kg
PCF per pack (cradle-to-gate)
66.3 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177921627
ETIM 7.0
EC002524
ECLASS 8.0
27182101
Product description
VX Side panel, screw-fastened, for HD: 1200x600 mm, sheet steel
Feature: Clip-in side panel holder enables faster assembly and repeatable mounting. Business Impact: Shorter commissioning windows and reduced risk of misalignment in VX enclosure installations. Application: Automation control cabinets and electrical switchgear where quick maintenance and reliable sealing are essential. Feature: 1.5 mm sheet steel construction provides robust enclosure integrity. Business Impact: Improves mechanical protection against impacts and wear in harsh factory environments, lowering replacement frequency. Application: Industrial automation panels, machine control cabinets, and data/telecom racks requiring durable panels. Feature: Dipcoat-primed, powder-coated outside surface delivers improved corrosion resistance. Business Impact: Extends service life in wash-down zones and dusty production lines, reducing maintenance cycles. Application: Food-and-beverage, pharmaceutical, and electronics manufacturing environments. Feature: IP55 protection rating to IEC 60 529 ensures dust and water ingress protection. Business Impact: Compliance with harsh environments and safer operation in dirty or moist settings. Application: Outdoor or damp plant rooms, conveyor lines, and material handling systems. Feature: VX-specific fit for 1200 mm height and 600 mm depth with supplied assembly parts. Business Impact: Eliminates field cutting and guesswork, accelerating retrofit projects. Application: Upgrades and expansions of VX enclosures in existing automation architectures. Feature: Pack size two panels with included assembly parts. Business Impact: Logistics efficiency and consistent installation processes, lowering downtime during cabinet upgrades. Application: Scalable projects and multi-cabinet deployments in production lines.
Get a Quick Quote for a Rittal 8170245
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8170245?
Enquire Now
FAQs
Begin by aligning the panel with the VX enclosure opening. Use the clip-in side panel holder and include the provided assembly parts to secure the panel. Ensure correct orientation and engage all fasteners as per the supplied instructions. This approach minimizes misalignment, shortens commissioning time, and improves installation repeatability in automation projects.
The panel carries IP55 protection per IEC 60 529 and UL 50E Type 1 safety compliance, indicating suitability for dust and water exposure in industrial settings and safe use in electrical cabinets. These certifications help ensure regulatory alignment, reduce risk in harsh environments, and support code-compliant installations in automation facilities.
The VX 8170.245 is specified for VX enclosures at 1200 mm height and 600 mm depth. It is designed to fit that exact footprint with a clip-in mechanism for fast install. For other VX sizes, use the corresponding side panels designed for those dimensions to maintain protection and fit.
Two panels per pack with assembly parts simplifies stocking and logistics, reducing handling steps in the field. The product ships in a compact, two-piece format, and its PCF value (cradle-to-gate) is 66.3 kg CO2 eq per pack, supporting life-cycle assessment and green procurement goals in manufacturing environments.
Avoid misalignment by using the clip-in holder as intended and following the included instructions carefully. Ensure the enclosure is clean and the mounting area is clear to prevent interference with fasteners. Rely on the two-piece pack and assembly parts to maintain consistent fit and timing during retrofit or expansion projects.
