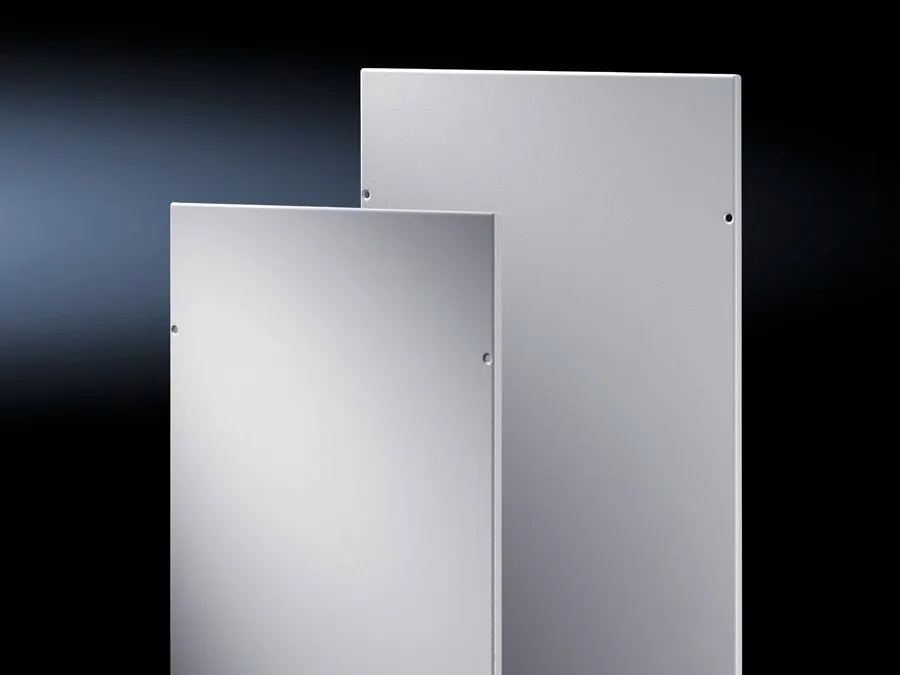

Rittal TS 8173.235 Side Panel for TS - IP55, 800x600
Part Number: 8173235
Quick Summary
Rittal TS 8173.235 Side Panel for TS provides robust enclosure protection for 800x600 control cabinets. This accessory addresses common EMI leakage and grounding challenges that slow panel builds and compromise reliability. The panel offers IP55 protection per IEC 60529 and supports automatic potential equalisation via earthing inserts to enhance EMC performance, while its dip-coated exterior and 1.5 mm sheet steel construction resist corrosion in demanding environments. Supplied with assembly parts and flexible mounting options, it reduces procurement friction and speeds on-site installation. For teams seeking consistent finishes and dependable protection, this panel integrates smoothly with TS and TS IT enclosures, delivering long-term value in industrial applications.
Product Information
Extended Description
8173235 Rittal: TS Side panel, screw-fastened, for TS, TS IT, for WD: 800x600 mm, Sheet steel
Article number
TS 8173.235
Benefits
Automatic potential equalisation and higher EMC protection due to enclosure panel holders with earthing insert
Material
Sheet steel, 1.5 mm
Surface finish
Dipcoat-primed, powder-coated on the outside
Colour
RAL 7035
Supply includes
Assembly parts
Note
Enclosure panel holders may optionally be fitted from the inside or outside of the enclosure
To fit
Enclosure type:Â TS | TS IT | Height:Â 800 mm | Depth:Â 600 mm
IP protection category to IEC 60 529
IP 55
Basic material
Sheet steel
Packs of
2 pc(s).
Weight/pack
12.4 kg
Customs tariff number
94039910
EAN
4028177301047
ETIM 9
EC002524
ECLASS 8.0
27182101
Product description
TS Side panel, screw-fastened, for TS, TS IT, for WD: 800x600 mm, Sheet steel
Material and finish provide durable protection in harsh environments: the TS 8173.235 Side Panel uses sheet steel at 1.5 mm thickness and is dipcoat-primed with a powder-coated exterior in RAL 7035, delivering weather resistance and a clean, uniform appearance in control rooms or factory floors. This translates to lower maintenance costs and fewer repaint cycles while preserving enclosure integrity on long-term installations. Improved grounding and EMC performance: with enclosure panel holders that feature earthing inserts, the panel supports automatic potential equalisation, reducing EMI susceptibility and helping to meet stringent industrial standards without added time or expense during assembly. Installation flexibility and compatibility: designed to fit TS and TS IT enclosures at WD 800x600, the panels ship in packs of two and include assembly parts, enabling quick, screw-fastened mounting from either inside or outside the enclosure. This minimizes disruption during retrofits or new builds and aligns with modular factory layouts. Packable and transport-friendly: weighing 12.4 kg per pack, with a total of two panels per pack, the solution optimizes logistics and reduces warehousing space while maintaining consistent quality across multiple cabinets. Overall, the combination of material strength, IP55 protection, and flexible mounting supports reliable performance in automation and electrical cabinet applications.
Get a Quick Quote for a Rittal 8173235
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8173235?
Enquire Now
FAQs
This side panel is screw-fastened and ships with assembly parts for a straightforward fit on TS and TS IT enclosures at WD 800x600. Panels can be mounted from inside or outside the enclosure, offering installation flexibility for retrofits and new builds while minimizing service downtime.
Key specs include sheet steel construction at 1.5 mm thickness, dipcoat-primed exterior with powder-coated finish in RAL 7035, and an IP protection rating of IP55. The packaging consists of 2 panels per pack, with a weight of 12.4 kg per pack. EAN and article numbers are provided for ordering efficiency.
Yes. The IP55 rating provides protection against dust ingress and water splash, while the 1.5 mm sheet steel and powder-coated finish resist corrosion and wear in factory floors and control cabinets. Earthing inserts support EMC integrity, making it suitable for environments with electrical noise and grounding concerns.
The panel provides IP55 protection per IEC 60529 and is designed to support CE-compliant installations in typical Europe-based automation and electrical cabinet applications. Its design also supports standard industry practices for earthing and potential equalisation in TS/TS IT enclosures.
The panel improves EMC protection and reliable grounding through earthing inserts, reducing EMI issues and maintenance needs. Its included assembly parts, two-panel pack, and inside/outside mounting flexibility speed installations, lowering labor costs and enabling faster project delivery in automation and electrical cabinet deployments.
