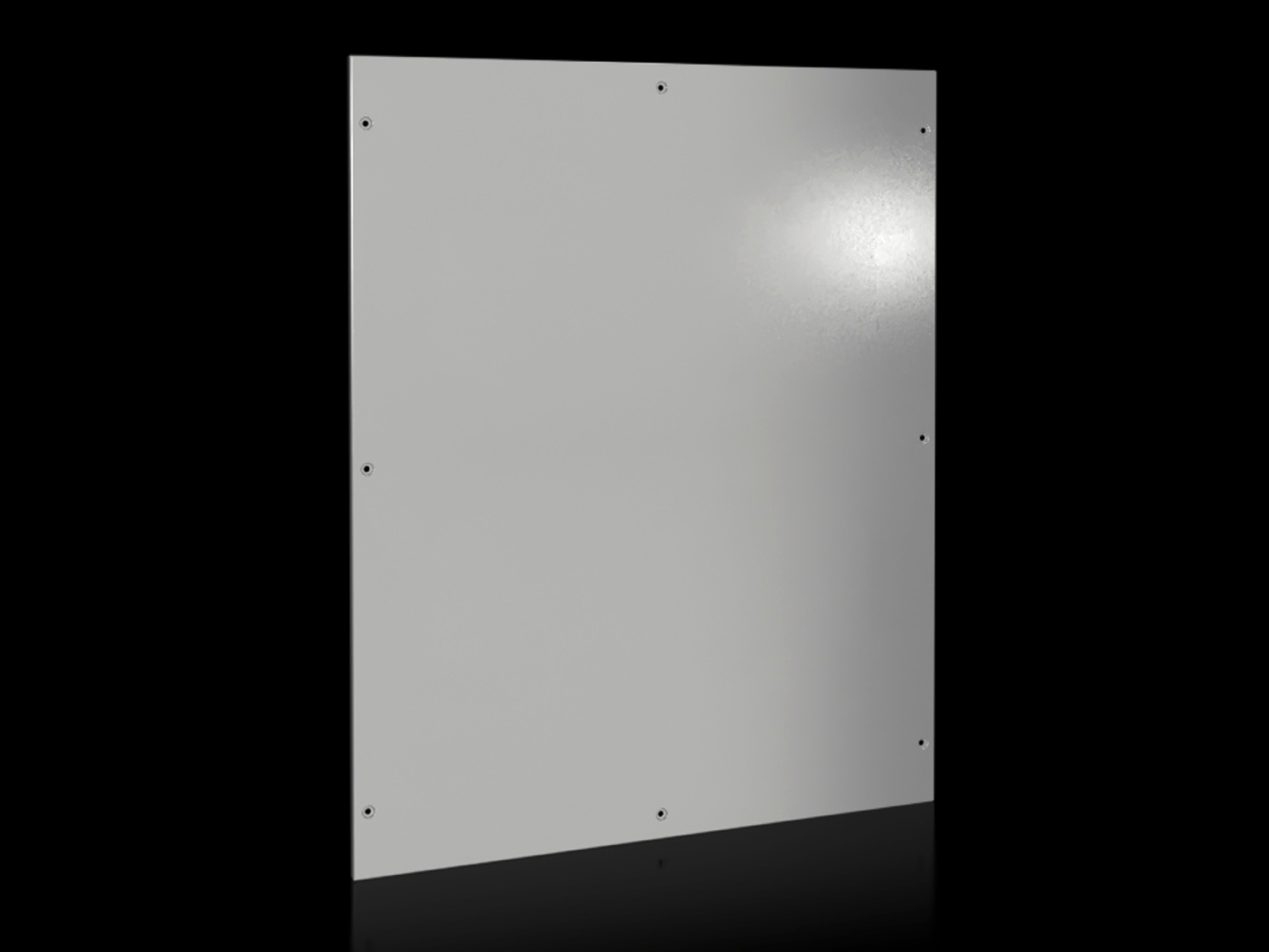

Rittal VX 8176.245 Side Panel Clip-in - IP55
Part Number: 8176245
Quick Summary
Rittal VX 8176.245 Side Panel Clip-in provides quick, robust protection for 1200x1000 mm VX enclosures. Engineering teams struggle with time-consuming, misaligned panel installs, but this clip-in design simplifies assembly and reduces on-site labor. It carries IP 55 protection (IEC 60 529) and UL 50E Type 1 ratings, supporting reliable protection in demanding environments while meeting common electrical and industrial safety standards. As a VX enclosure accessory, it ships with assembly parts and leverages sheet steel construction for durable performance, enabling faster procurement and lower total cost of ownership in industrial automation, data centers, and control panels.
Product Information
Extended Description
8176245 Rittal: VX Side panel, screw-fastened, for HD: 1200x1000 mm, sheet steel
Article number
VX 8176.245
Benefits
Time-saving assembly thanks to clip-in side panel holder
Material
Sheet steel, 1.5 mm
Surface finish
Dipcoat-primed, powder-coated on the outside
Colour
RAL 7035
Supply includes
Assembly parts
To fit
Enclosure type:Â VX | Height:Â = 1,200 mm | Depth:Â = 1,000 mm
IP protection category to IEC 60 529
IP 55
Type rating to UL 50E
Type 1
Basic material
Sheet steel
Packs of
2 pc(s).
Weight/pack
28.8 kg
PCF per pack (cradle-to-gate)
109.7Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177921658
ETIM 9
EC002524
ECLASS 8.0
27182101
Product description
VX Side panel, screw-fastened, for HD: 1200x1000 mm, sheet steel
Clip-in side panel holder reduces alignment steps and minimizes on-site adjustments, translating to measurable labor savings and faster project turnover. In practice, technicians can snap the panel into place and secure with standard hardware, which lowers commissioning time and improves first-pass quality for VX enclosures used in machine control cabinets. Durable construction with 1.5 mm sheet steel provides rigidity and long-term protection against impact and vibration. The dipcoat-primed base and powder-coated exterior in RAL 7035 deliver corrosion resistance in factory floors and outdoor racks, helping to maintain enclosure aesthetics and warranty compliance. IP 55 and UL 50E Type 1 rating ensure enclosure integrity in industrial environments, supporting dust and water ingress protection and electrical safety compliance. Pack configuration simplifies logistics, with two panels per pack and a total weight of 28.8 kg, optimizing handling and transport. To fit VX enclosures, the kit includes assembly parts and is designed for HD 1200x1000 mm installations, enabling faster procurement and streamlined maintenance. The cradle-to-gate PCF of 109.7 kg CO2 eq per pack (Cat B) supports sustainability goals, while the EAN, ETIM, and ECLASS codes facilitate standardized sourcing and data exchange.
Get a Quick Quote for a Rittal 8176245
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8176245?
Enquire Now
FAQs
The VX 8176.245 is designed to fit VX enclosures with a 1200x1000 mm footprint and comes in a two-pack that includes the necessary assembly parts. Each pack weighs 28.8 kg, enabling straightforward palletization and on-site handling. Installation involves snapping the clip-in side panel into the enclosure’s frame and securing with the included assembly hardware, reducing alignment challenges and field labor.
The panel provides IP 55 protection per IEC 60 529 and UL 50E Type 1 rated protection, ensuring ingress resistance in dust and light water exposure environments and compatibility with standard electrical enclosure safety requirements. It uses sheet steel with dipcoat-primed and powder-coated exterior for durable service life.
Yes. With IP 55 protection and a powder-coated exterior on 1.5 mm sheet steel, the VX 8176.245 is well-suited for industrial environments, machine rooms, and semi-exposed installations where dust and splashes may occur, while maintaining a robust finish and structural integrity.
The clip-in side panel holder minimizes alignment steps and eliminates iterative fastening, reducing on-site labor and commissioning time. This design improves first-pass assembly quality for VX enclosures and accelerates project timelines in automation cabinets and control panels.
The product is sold in packs of two with a total weight of 28.8 kg per pack. The cradle-to-gate PCF is 109.7 kg CO2 eq per pack (Category B). Packaging and logistics considerations are aligned with standard industrial sourcing, helping buyers meet sustainability and lifecycle assessment goals.
