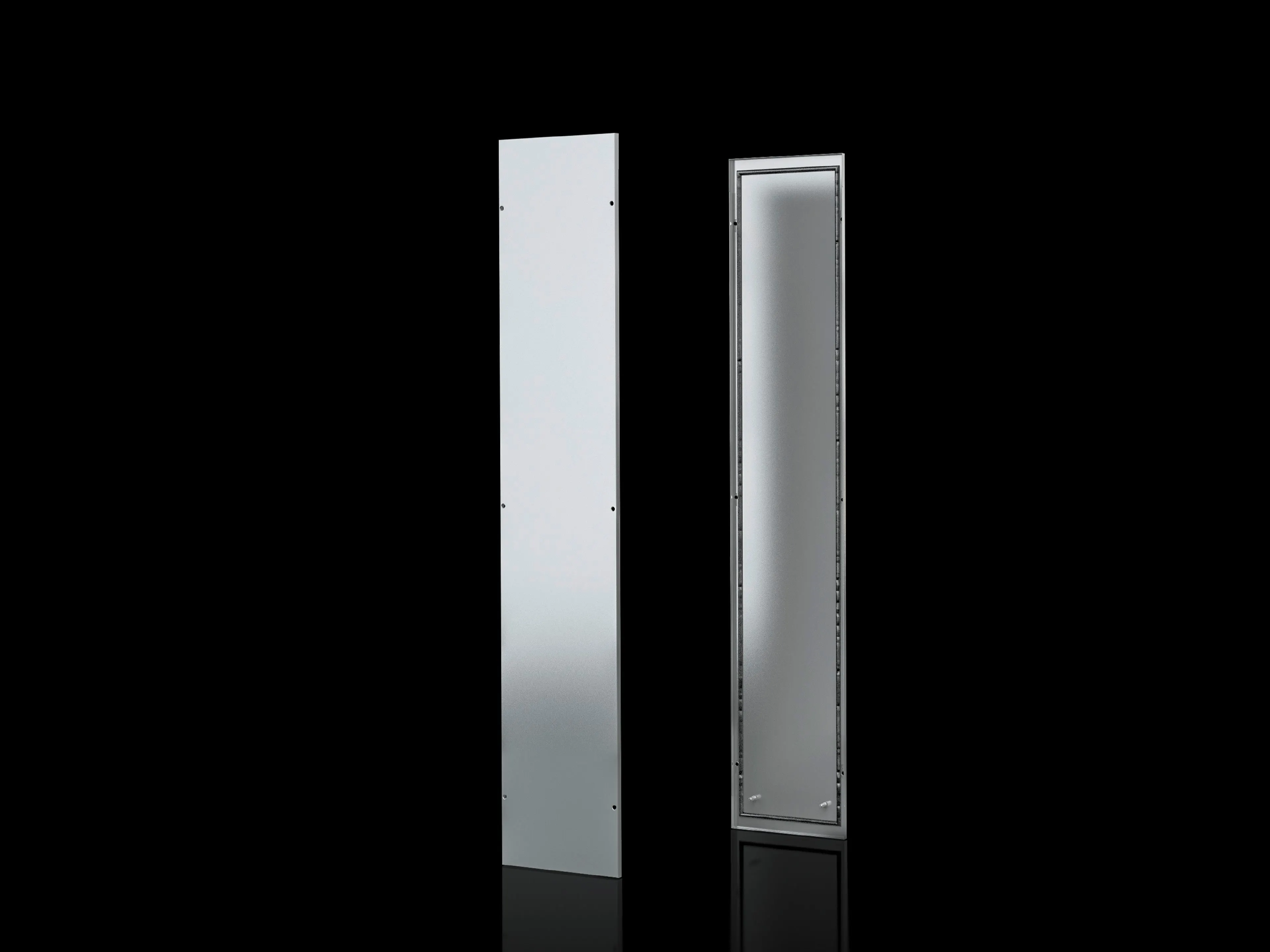

Rittal 8184235 Side Panel for TS Enclosures - IP55
Part Number: 8184235
Quick Summary
Rittal 8184235 Side Panel for TS Enclosures provides rugged sheet-steel side protection for 1800x400 mm TS enclosures used in industrial control panels. Engineers often contend with EMI leakage and grounding inconsistencies that compromise equipment immunity and increase downtime. The design supports automatic potential equalisation with earthing inserts, delivering enhanced EMC protection, while the IP55 rating guards against dust and water ingress. CE compliance ensures European market readiness, and the combination of durable coating (dipcoat-primed, powder-coated) and the included assembly parts reduces procurement steps and maintenance costs. This TS enclosure accessory is a standard fit for TS and TS IT configurations, providing reliable performance across harsh industrial environments.
Product Information
Extended Description
8184235 Rittal: TS Side panel, screw-fastened, for TS, TS IT, for WD: 1800x400 mm, Sheet steel
Article number
TS 8184.235
Benefits
Automatic potential equalisation and higher EMC protection due to enclosure panel holders with earthing insert
Material
Sheet steel, 1.5 mm
Surface finish
Dipcoat-primed, powder-coated on the outside
Colour
RAL 7035
Supply includes
Assembly parts
Note
Enclosure panel holders may optionally be fitted from the inside or outside of the enclosure
To fit
Enclosure type: TS | TS IT | Height: 1,800 mm | Depth: 400 mm
IP protection category to IEC 60 529
IP 55
Basic material
Sheet steel
Packs of
2 pc(s).
Weight/pack
17.8 kg
Customs tariff number
94039910
EAN
4028177205215
ETIM 9
EC002524
ECLASS 8.0
27182101
Product description
TS Side panel, screw-fastened, for TS, TS IT, for WD: 1800x400 mm, Sheet steel
Feature material: Sheet steel, 1.5 mm provides robust rigidity and long-term durability in challenging industrial environments, reducing panel deflection and wear. Business impact: Improved enclosure integrity translates to fewer panel repairs and lower maintenance costs. Application: Suitable for TS enclosure installations where mechanical protection is critical. Feature surface finish: Dipcoat-primed, powder-coated exterior in RAL 7035 offers corrosion resistance and a consistent, easy-to-clean finish. Business impact: Extends service life in humidity and dust-prone areas, yielding lower replacement frequency. Application: Ideal for visible exterior panels in factory floors. Feature IP protection and grounding: IP55 protection plus enclosure panel holders with earthing insert enables automatic potential equalisation and enhanced EMC protection. Business impact: Improves electrical immunity and reduces risk of interference in powered equipment. Application: Essential for drive systems and PLC cabinets. Feature included hardware: Supply includes assembly parts, enabling faster, tool-light installation. Business impact: Shortens installation time and minimizes procurement steps. Application: Useful for rapid retrofits or multi-panel deployments. Feature mounting flexibility: Note states enclosure panel holders may be fitted from inside or outside the enclosure, increasing installation versatility. Business impact: Supports constrained mounting scenarios and simplifies retrofits. Application: Beneficial in retrofits or tight-space installations. Feature fitment: To fit TS | TS IT enclosures with WD 1800x400 mm dimensions, packs of 2 with 17.8 kg per pack; ensures predictable shipping and handling. Business impact: Streamlines logistics and inventory planning. Application: Standard accessory for mid-size TS installations.
Get a Quick Quote for a Rittal 8184235
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8184235?
Enquire Now
FAQs
The side panel is screw-fastened and ships with assembly parts for quick installation. You can mount it from the inside or outside of the enclosure, depending on access and space. Align the panel with the TS frame, secure with the supplied fasteners, and verify IP55 sealing after mounting to ensure continued protection.
Yes. The TS 8184.235 side panel is designed for TS and TS IT enclosures with a WD of 1800x400 mm. It maintains the same IP55 protection and grounding options, including earthing inserts for automatic potential equalisation, ensuring consistent EMC performance across TS configurations.
The panel supports automatic potential equalisation through earthing inserts integrated in the enclosure panel holders. This feature enhances EMC protection by maintaining a reliable earth path, reducing interference risk, and improving the overall immunity of connected control equipment in industrial environments.
The panel uses a dipcoat-primed, powder-coated exterior in RAL 7035, providing a durable, weather- and corrosion-resistant finish. This standard color supports easy coordination with other Rittal enclosures and helps with quick visual identification on the shop floor.
The product is shipped in packs of two, with each pack weighing 17.8 kg, and includes assembly parts for fast installation. This setup reduces采购 steps, minimizes downtime during retrofits, and provides predictable logistics for projects involving multiple TS enclosures.
