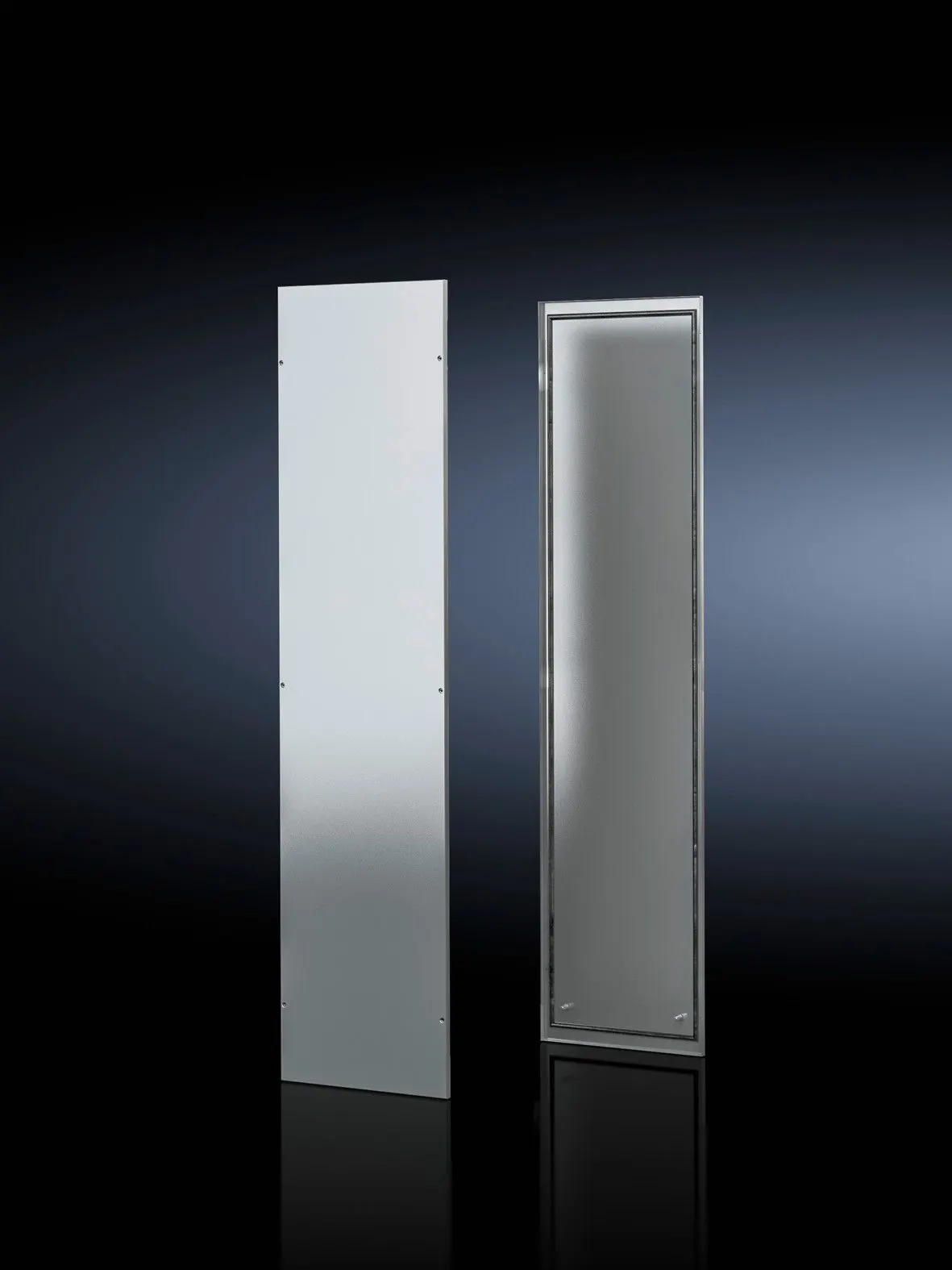

Rittal TS 8185.235 Side Panel for TS Enclosures - IP55
Part Number: 8185235
Quick Summary
Rittal TS 8185.235 Side Panel for TS enclosures provides robust, screw-fastened protection for 1800x500 mm cabinets. Engineers often struggle with reliable EMC grounding and enclosure integrity; this panel features earthing inserts for automatic potential equalisation, boosting EMI protection. Key ratings include IP 55 protection under IEC 60529, plus a dipcoat-primed, powder-coated outside in RAL 7035 for durable indoor and semi-exposed use. The design combines sheet steel construction with standard assembly parts, offering inside or outside mounting options to accelerate installation and reduce total cost of ownership. With two panels per pack and ready-to-fit hardware, it fits straightforwardly into TS and TS IT configurations, delivering dependable, scalable protection for data centers, automation panels, and industrial control cabinets.
Product Information
Extended Description
8185235 Rittal: TS Side panel, screw-fastened, for TS, TS IT, for WD: 1800x500 mm, Sheet steel
Article number
TS 8185.235
Benefits
Automatic potential equalisation and higher EMC protection due to enclosure panel holders with earthing insert
Material
Sheet steel, 1.5 mm
Surface finish
Dipcoat-primed, powder-coated on the outside
Colour
RAL 7035
Supply includes
Assembly parts
Note
Enclosure panel holders may optionally be fitted from the inside or outside of the enclosure
To fit
Enclosure type:Â TS | TS IT | Height:Â 1,800 mm | Depth:Â 500 mm
IP protection category to IEC 60 529
IP 55
Basic material
Sheet steel
Packs of
2 pc(s).
Weight/pack
22.2 kg
Customs tariff number
94039910
EAN
4028177205222
ETIM 9
EC002524
ECLASS 8.0
27182101
Product description
TS Side panel, screw-fastened, for TS, TS IT, for WD: 1800x500 mm, Sheet steel
Feature: Screw-fastened side panel for TS/TS IT enclosures. Business impact: Secure, vibration-resistant mounting minimizes panel movement and maintenance downtime. Application: Ideal for 1800x500 mm TS cabinets in manufacturing cells. Feature → Business Impact → Application. Feature: Material and finish. Benefit: 1.5 mm sheet steel with dipcoat-primed, powder-coated exterior provides corrosion resistance and long service life in harsh environments. Application: Suitable for indoor and semi-exposed installations in automation racks. Feature: IP protection. Benefit: IP55 rating protects against dust ingress and water exposure, reducing field failures and extending uptime. Application: Process automation and packaging lines. Feature: Earthing insert for automatic potential equalisation. Benefit: Enhanced EMC protection and safer grounding practices, simplifying compliance. Application: Enclosures requiring reliable earth connections and reduced grounding effort. Feature: Packaging and compatibility. Benefit: Packs of 2 with assembly parts included, supports TS and TS IT mounting, and offers flexible inside/outside mounting to speed commissioning. Application: System integrators and panel builders seeking predictable lead times and plug-and-play installation.
Get a Quick Quote for a Rittal 8185235
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8185235?
Enquire Now
FAQs
Yes. The TS 8185.235 Side Panel is designed for TS and TS IT enclosure types with WD dimensions of 1800x500 mm. It ships in packs of two and includes assembly parts for straightforward integration into existing TS systems.
The panel provides IP55 protection per IEC 60529, offering dust and moisture resistance. It uses 1.5 mm sheet steel with a dipcoat-primed, powder-coated exterior (RAL 7035), delivering durable EMI protection suitable for industrial environments.
Yes. Enclosure panel holders may be fitted from either the inside or outside, enabling flexible installation approaches to accommodate different assembly workflows and space constraints.
Packs include two panels with assembly parts, weight per pack is 22.2 kg, and the panels are compatible with TS and TS IT enclosures designed for WD 1800x500 mm. This setup supports efficient stocking and quick deployment on site.
The product carries EAN 4028177205222, ETIM EC002524, and ECLASS 27182101 classifications. Customs tariff is 94039910, and it aligns with standard TS enclosure configurations, aiding accurate cataloging and procurement.
