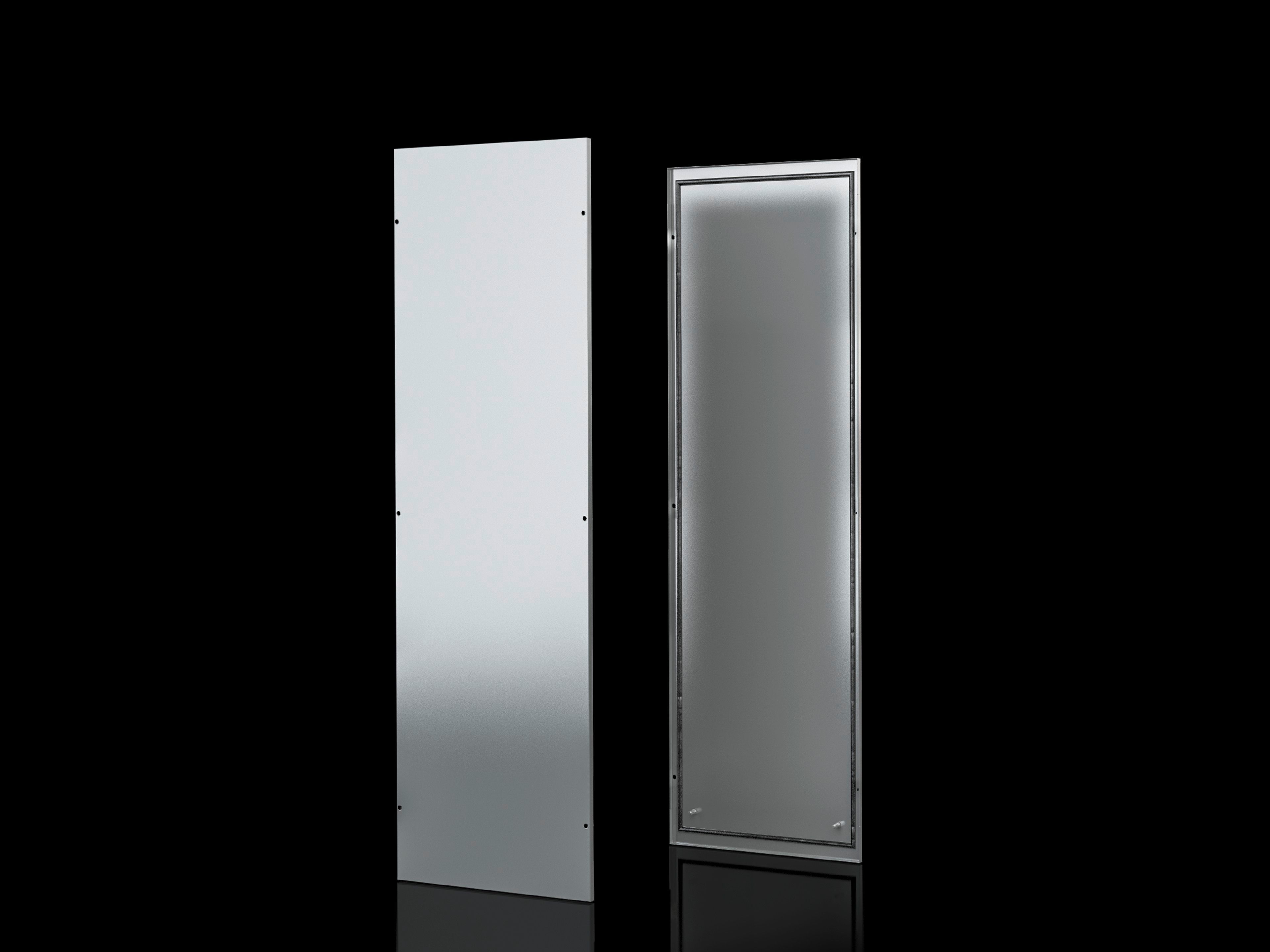

Rittal TS 8186.235 Side Panel - IP55, Sheet Steel
Part Number: 8186235
Quick Summary
Rittal TS 8186.235 Side Panel provides robust enclosure protection for TS systems in electrical cabinets. Engineers often face EMI shielding gaps and grounding challenges when panels are not properly fitted. Protection ratings and standards include IP55 performance under IEC 60529, with ETIM EC002524 and ECLASS 27182101 classifications that streamline procurement, while earthing inserts enable automatic potential equalisation for better EMC protection. This side panel, with a dip coat-primed, powder-coated outside finish, 1.5 mm sheet steel, and included assembly parts, delivers a reliable, scalable solution for TS enclosures. Businesses gain installation consistency and reduced downtime when upgrading from generic panels, while keeping stock small with packs of two.
Product Information
Extended Description
8186235 Rittal: TS Side panel, screw-fastened, for TS, TS IT, for WD: 1800x600 mm, Sheet steel
Article number
TS 8186.235
Benefits
Automatic potential equalisation and higher EMC protection due to enclosure panel holders with earthing insert
Material
Sheet steel, 1.5 mm
Surface finish
Dipcoat-primed, powder-coated on the outside
Colour
RAL 7035
Supply includes
Assembly parts
Note
Enclosure panel holders may optionally be fitted from the inside or outside of the enclosure
To fit
Enclosure type: TS | TS IT | Height: 1,800 mm | Depth: 600 mm
IP protection category to IEC 60 529
IP 55
Basic material
Sheet steel
Packs of
2 pc(s).
Weight/pack
26.6 kg
Customs tariff number
94039910
EAN
4028177205239
ETIM 9
EC002524
ECLASS 8.0
27182101
Product description
TS Side panel, screw-fastened, for TS, TS IT, for WD: 1800x600 mm, Sheet steel
Feature: Sheet steel, 1.5 mm thick, with dipcoat-primed and powder-coated outer surface. Business impact: delivers a durable enclosure skin with enhanced corrosion resistance, extending service life in demanding environments. Application: fits TS and TS IT enclosures for 1800x600 mm footprints. Feature: IP55 protection. Business impact: protects internal components against dust ingress and water jets, reducing maintenance windows and unplanned downtime. Application: factory floors, service bays, and outdoor installations. Feature: Earthing inserts enable automatic potential equalisation. Business impact: improves EMC shielding and safe grounding in real-world wiring, lowering leakage and interference risk. Application: all TS enclosure configurations, especially where multiple panels are used. Feature: Installation flexibility. Business impact: enclosure panel holders may be fitted from inside or outside; supply includes assembly parts, speeding commissioning and reducing labour and errors. Application: modular TS setups and quick reconfigurations. Feature: Compatibility and packaging efficiency. Business impact: fits TS and TS IT enclosures with WD 1800x600; packs of two panels simplify stocking and logistics, reducing inventory variance. Application: project planning, distribution, and ongoing maintenance.
Get a Quick Quote for a Rittal 8186235
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8186235?
Enquire Now
FAQs
The TS 8186.235 Side Panel is designed to fit TS and TS IT enclosures with a 1800x600 mm footprint. It ships with assembly parts and supports mounting from either inside or outside the enclosure, enabling fast, flexible configuration.
The panel is made from 1.5 mm sheet steel with a dipcoat-primed and powder-coated exterior finish. It achieves IP55 protection, guarding against dust ingress and water jets in demanding industrial environments.
The built-in earthing insert enables automatic potential equalisation, which enhances EMC shielding by providing a reliable path to earth for static charges and transient currents, reducing EMI risk inside TS enclosures.
Installation is streamlined by included assembly parts and the option to mount panel holders from inside or outside the enclosure, accelerating commissioning and reducing on-site labor and alignment errors.
Yes. The TS 8186.235 is sold in packs of two and weighs 26.6 kg per pack, aiding logistics planning. It also aligns with EAN 4028177205239 and standard EN classifications for procurement efficiency.
