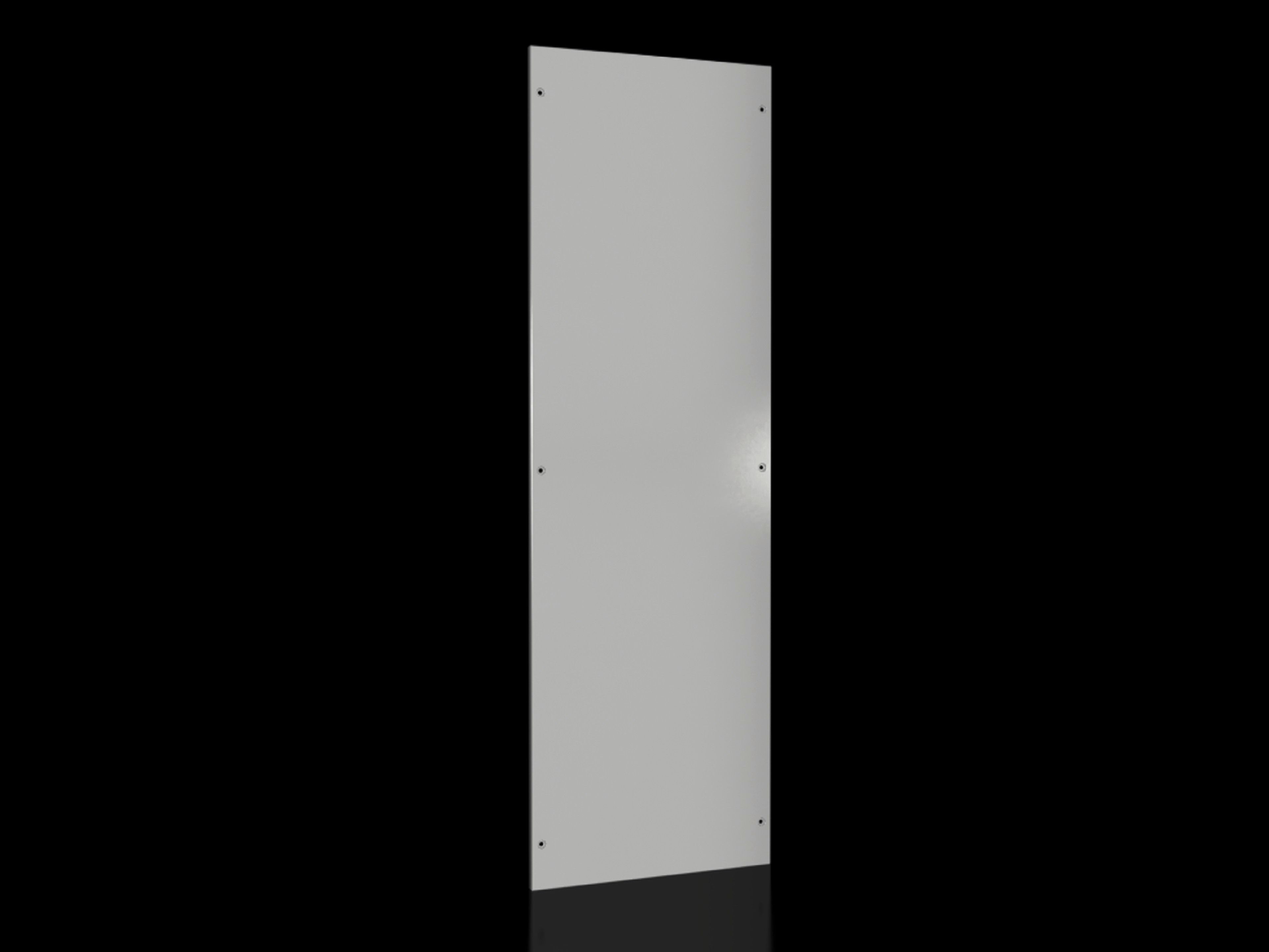

Rittal VX 8186.245 Side Panel for VX Enclosures - IP55
Part Number: 8186245
Quick Summary
Rittal VX 8186.245 Side Panel for VX enclosures provides robust, clip‑in side protection for industrial cabinets in demanding environments. Maintenance teams often contend with time‑consuming panel changes, misaligned seals, and unreliable fits that slow down service and increase downtime. This panel is certified for IP 55 protection and UL 50E Type 1, with ETIM EC002524 and ECLASS 27182101 classifications to support purchasing and regulatory compliance. By combining a durable 1.5 mm sheet steel build with a powder‑coated exterior in RAL 7035, it delivers long‑term reliability while keeping installation straightforward, reducing total cost of ownership and enabling faster, safer maintenance for VX systems.
Product Information
Extended Description
8186245 Rittal: VX Side panel, screw-fastened, for HD: 1800x600 mm, sheet steel
Article number
VX 8186.245
Benefits
Time-saving assembly thanks to clip-in side panel holder
Material
Sheet steel, 1.5 mm
Surface finish
Dipcoat-primed, powder-coated on the outside
Colour
RAL 7035
Supply includes
Assembly parts
To fit
Enclosure type:Â VX | Height:Â = 1,800 mm | Depth:Â = 600 mm
IP protection category to IEC 60 529
IP 55
Type rating to UL 50E
Type 1
Basic material
Sheet steel
Packs of
2 pc(s).
Weight/pack
26.2 kg
PCF per pack (cradle-to-gate)
99.8Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177827820
ETIM 9
EC002524
ECLASS 8.0
27182101
Product description
VX Side panel, screw-fastened, for HD: 1800x600 mm, sheet steel
Feature: Clip‑in side panel holder enables fast, intuitive installation with precise edge alignment. Business Impact: Reduces labour time and rework, improving maintenance throughput on VX enclosures. Application: Ideal for high‑mix automation lines and service‑oriented panel upgrades where uptime matters. Feature: Screw‑fastened panel with a sheet steel body 1.5 mm thick. Business Impact: Delivers robust protection against impacts and environmental ingress while keeping weight manageable for field handling. Application: Suitable for manufacturing floors and control rooms where panels undergo routine access and re‑sealing. Feature: Powder‑coated outside with a dipcoat‑primed finish in RAL 7035. Business Impact: Enhances corrosion resistance and finish durability, reducing repainting cycles and maintenance costs. Application: Outdoor or factory environments with exposure to grime and humidity. Feature: IP 55 protection and UL 50E Type 1 compliance. Business Impact: Supports regulatory and safety requirements, enabling compliant panel installations in metal enclosures. Application: Electrical cabinet installations in automated lines and process industries. Feature: Supplied as a 2‑pack with assembly parts. Business Impact: Simplifies logistics and reduces part hunting in the field, streamlining stock management. Application: Time‑critical projects and large installation sites where quick replenishment is needed.
Get a Quick Quote for a Rittal 8186245
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8186245?
Enquire Now
FAQs
The VX 8186.245 Side Panel is designed specifically for VX enclosures at 1800 mm height and 600 mm depth, using a clip‑in side panel holder for quick, reliable mounting. It is screw‑fastened and ships as a 2‑pack with assembly parts, ensuring a consistent fit across standard VX cabinets on production lines.
Begin by aligning the panel with the VX enclosure opening using the clip‑in holder to guide placement. Secure with the included assembly parts, ensuring the 1.5 mm sheet steel panel sits flush against the enclosure exterior. Verify IP55 seals and confirm finish alignment with the RAL 7035 coating to complete installation.
Yes. The side panel provides IP 55 protection per IEC 60 529 and carries UL 50E Type 1 compliance, meeting typical safety and environmental standards for industrial electrical enclosures. It is also classified under ETIM EC002524 and ECLASS 27182101 for procurement systems.
The panel uses sheet steel with a nominal thickness of 1.5 mm, giving a sturdy structure while remaining manageable for handling. The exterior finish is a dipcoat‑primed base with a powder coating in RAL 7035, delivering corrosion resistance and a durable, easy‑to‑clean surface suitable for harsh environments.
The VX 8186.245 is supplied as a 2‑pack, with a weight per pack of 26.2 kg. The cradle‑to‑gate PCF is 99.8 kg CO2 eq (Category B), reflecting a self-declared, weight‑based environmental footprint. Packaging and assembly parts are included to minimize waste and simplify logistics during installation.
