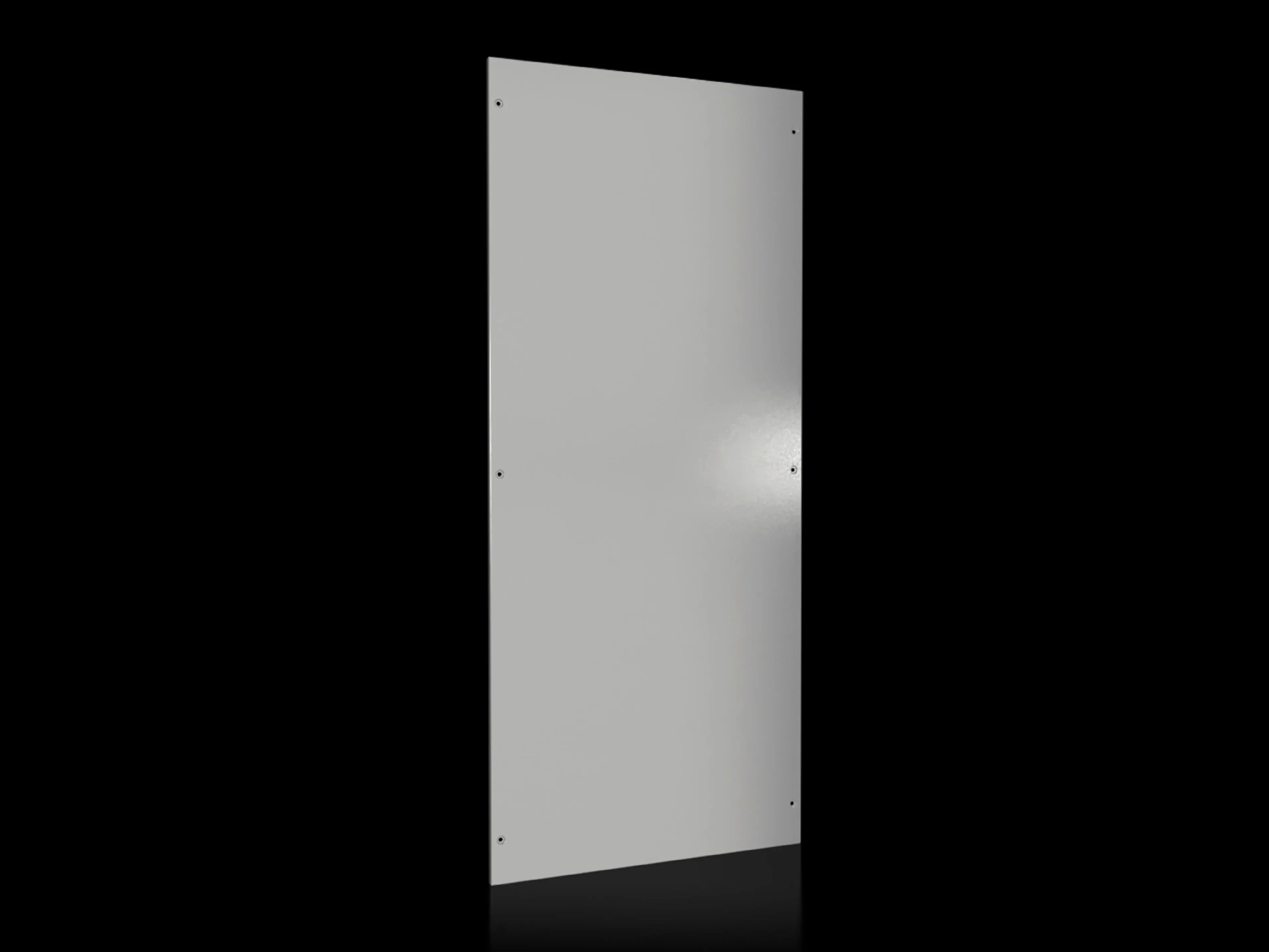

Rittal VX 8188.245 Side Panel for VX Enclosures - IP55
Part Number: 8188245
Quick Summary
Rittal VX 8188.245 Side Panel is a screw-fastened, sheet-steel enclosure accessory designed for VX cabinets. Installers often waste time wrestling panels into place; this model uses a clip-in side panel holder to speed up the process. It delivers reliable protection with IP 55 and UL 50E Type 1 ratings, supporting safe operation in demanding environments. For manufacturers, the combination of powder-coated durability and standard VX compatibility translates to lower maintenance costs and faster deployment.
Product Information
Extended Description
8188245 Rittal: VX Side panel, screw-fastened, for HD: 1800x800 mm, sheet steel
Article number
VX 8188.245
Benefits
Time-saving assembly thanks to clip-in side panel holder
Material
Sheet steel, 1.5 mm
Surface finish
Dipcoat-primed, powder-coated on the outside
Colour
RAL 7035
Supply includes
Assembly parts
To fit
Enclosure type:Â VX | Height:Â = 1,800 mm | Depth:Â = 800 mm
IP protection category to IEC 60 529
IP 55
Type rating to UL 50E
Type 1
Basic material
Sheet steel
Packs of
2 pc(s).
Weight/pack
34 kg
PCF per pack (cradle-to-gate)
129.5Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177921665
ETIM 9
EC002524
ECLASS 8.0
27182101
Product description
VX Side panel, screw-fastened, for HD: 1800x800 mm, sheet steel
Feature: Clip-in side panel holder enables time-saving assembly. Business Impact: Reduces installation labor and cycle times, lowering project costs. Application: Ideal for high-volume VX enclosure installations in manufacturing lines. Feature: 1.5 mm sheet steel with a dipcoat-primed, powder-coated outside finish. Business Impact: Improves durability, corrosion resistance, and lifecycle reliability while maintaining a consistent look. Application: Suitable for indoor and semi-exposed environments requiring robust protection. Feature: IP protection IP55 and UL 50E Type 1 compliance. Business Impact: Delivers dust protection and electrical safety compliance in harsh environments, reducing risk of unplanned downtime. Application: Controls and power distribution cabinets in factory floors. Feature: Color and material standardization with RAL 7035, 1.5 mm sheet steel. Business Impact: Streamlines procurement and maintenance planning with color-coding consistency across fleets. Application: Enclosures in process automation and plant-wide installations. Feature: Packs of two, weight 34 kg per pack, supply includes assembly parts. Business Impact: Simplifies logistics and minimizes accessory sourcing steps, accelerating installation schedules. Application: Site rollouts and retrofit projects. Feature: Fits VX enclosure height 1800 mm and depth 800 mm. Business Impact: Guarantees compatibility, reducing engineering time and change orders. Application: VX series retrofits and new builds. Feature: PCF 129.5 kg CO2 eq per pack (Cat B). Business Impact: Supports sustainability metrics and responsible procurement. Application: Environmental reporting for enterprise-grade automation projects.
Get a Quick Quote for a Rittal 8188245
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8188245?
Enquire Now
FAQs
The panel is screw-fastened to the VX enclosure using the included assembly parts and clip-in side panel holder, designed for quick alignment and secure mounting. Ensure the enclosure height is 1800 mm and depth is 800 mm, then align the panel, engage the clip-in holder, and fasten per the supplied hardware. This minimizes field labor and reduces installation time.
The panel uses 1.5 mm sheet steel with a dipcoat-primed, powder-coated exterior in RAL 7035. It carries IP55 protection and UL 50E Type 1 listings, providing dust resistance and safe enclosure performance for industrial environments, while remaining compatible with VX cabinets.
Yes. IP55 protection and the powder-coated steel surface enable this side panel to withstand dust and water exposure typical in semi-exposed factory floors and outdoor-rated enclosures, making it a solid choice for rugged industrial automation applications.
The product aligns with IP55 per IEC 60 529 and UL 50E Type 1, and is associated with ETIM EC002524 and ECLASS 27182101 classifications. It also includes packaging and material data that support procurement compliance and sustainability reporting.
The clip-in holder design reduces installation time, while the durable powder-coated finish lowers maintenance needs. With assembly parts included, field service time is minimized, leading to faster deployment, fewer warranty issues, and a lower total cost of ownership for VX enclosure deployments.
