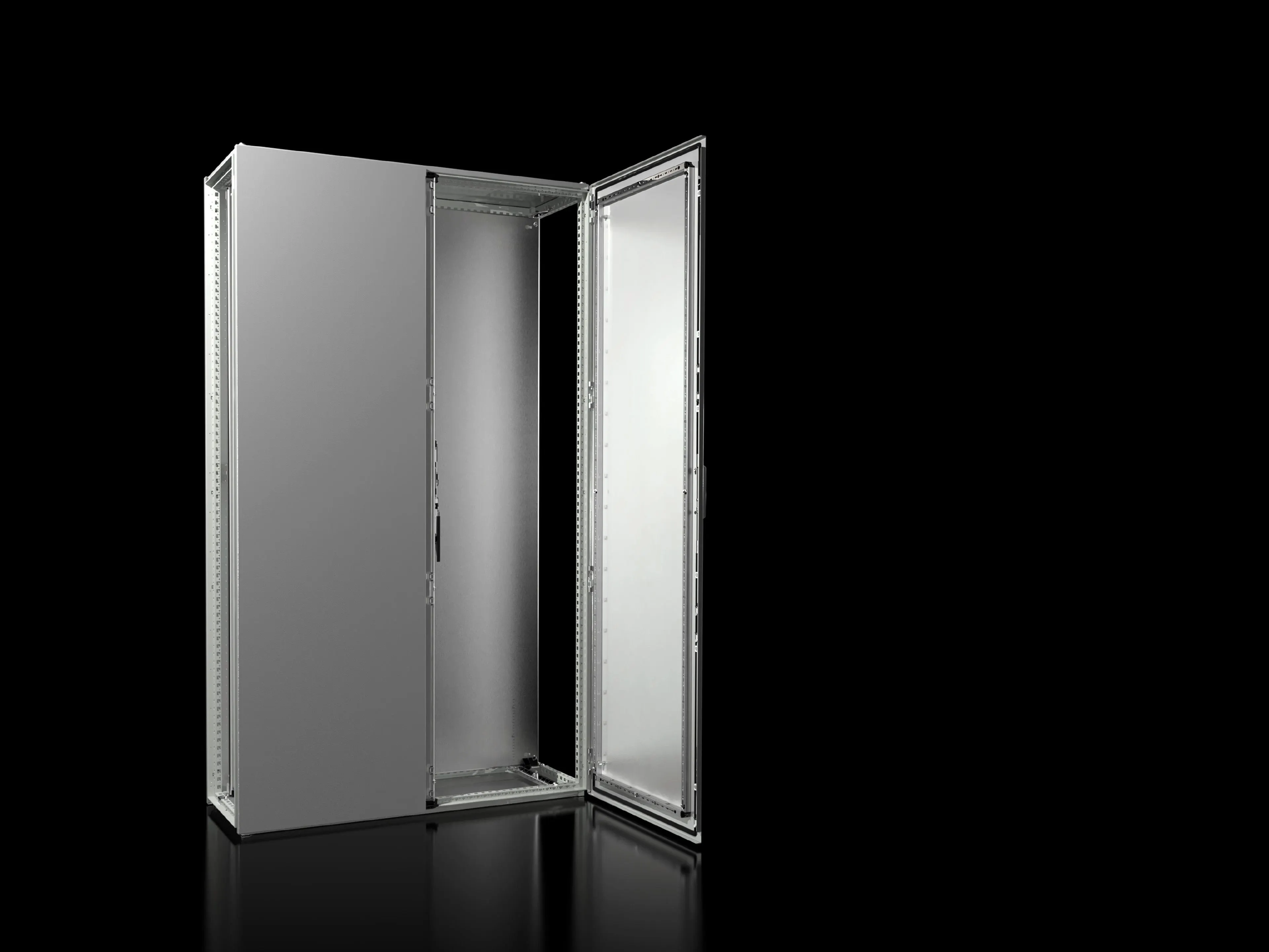

Rittal VX 8204.000 Enclosure - IP55, 1200x2000x400
Part Number: 8204000
Manufacturer
Rittal
Part number
8204000
Alt Part Number
VX 8204.000
Quick Summary
The Rittal VX 8204.000 Enclosure protects electrical assemblies in industrial control panels for automation applications. Facing tight spaces and the need for reliable IP-rated protection, many teams struggle with fast, correct interior installation. Key certifications include IP55 protection, NEMA 1 enclosure rating, and UL 50E Type 1 compatibility, ensuring compliance and safety. By standardising the mounting plate, gland plates, and punched rails, this enclosure reduces install time and improves serviceability, while delivering long-term cost savings and predictable maintenance cycles. With Rittal's robust dipcoat primed finish and powder-coated exterior, the system minimizes corrosion in harsh factory atmospheres, making it ideal for panel builders and OEMs seeking repeatable, scalable enclosures across multiple sites.
Product Information
Extended Description
8204000 Rittal: VX Baying enclosure system, WHD: 1200x2000x400 mm, sheet steel, with mounting plate, two doors at the front
Article number
VX 8204.000
Material
Enclosure frame: Sheet steel, 1.5 mm | Roof: Sheet steel, 1.5 mm | Door: Sheet steel, 2.0 mm | Rear panel: Sheet steel, 1.5 mm | Gland plates: Sheet steel, 1.5 mm | Mounting plate: Sheet steel, 3.0 mm
Surface finish
Enclosure frame: Dipcoat-primed | Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint | Mounting plate and gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure frame | Door(s) | Door hinged on the right, may be swapped to the left | Roof plate | Rear panel | Gland plates | Mounting plate | 2 punched rails 18 x 39 mm | Lock: 3 mm double-bit
Dimensions
Width: 1,200 mm | Height: 2,000 mm | Depth: 400 mm
Dimensions mounting plate (W x H)
1,099 mm x 1,896 mm
Protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 1
Type rating to UL 50E
Type 1
IK Code
IK10
Number of doors
2
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
183 kg
PCF/PU (cradle-to-gate)
450.9 kg CO2 eq (Cat B)
Note on the PCF class
Category B: PCF value (cradle-to-gate) approximated based on product weight and self-declared
EAN
4028177813649
ETIM 8
EC000261
ETIM 7.0
EC000261
ECLASS 8.0
27180101
Product description
VX Baying enclosure system, WHD: 1200x2000x400 mm, sheet steel, with mounting plate, two doors at the front
Feature: Enclosure frame, two front doors, rear panel, roof plate, and gland plates provide a ready-to-install interior. Business Impact: Accelerates panel build times and reduces field wiring complexity. Application: Ideal for automation cabinets in manufacturing where standardised interiors are critical. Feature: Sheet steel construction with dedicated mounting plate and 2 punched rails (18 x 39 mm). Business Impact: Ensures robust mechanical support and accessible cable management, lowering maintenance interventions. Application: Heavy-duty control enclosures in process industries needing secure component mounting. Feature: Dipcoat-primed frame with powder-coated exterior and textured paint; zinc-plated gland plates. Business Impact: Improves corrosion resistance and external durability, reducing repainting and corrosion-related downtime. Application: Factory floors with high humidity or dust exposure. Feature: Dimensions and mounting plate (W x H) 1,200 x 2,000 x 400 mm; mounting plate 1,099 x 1,896 mm. Business Impact: Facilitates compatibility with standard components and simplifies retrofits or upgrades. Application: Control panels requiring predictable fits across sites. Feature: Protection ratings IP55, NEMA 1, and UL 50E Type 1 with IK10. Business Impact: Delivers industry-standard protection and safety compliance, minimizing risk and certification costs. Application: Enclosures used in harsh environments and regulated industries. Feature: Two doors hinged on the right (swap to left) and included roof, rear panel, and mounting hardware. Business Impact: Flexible installation and serviceability, enabling easier maintenance access. Application: OEM manufacturing lines where accessibility is critical for maintenance windows.
Get a Quick Quote for a Rittal 8204000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8204000?
Enquire Now
FAQs
VX 8204.000 arrives with a mounting plate, two punched rails, and gland plates designed for quick interior fit. Consider hinge orientation (right by default, left swap available) and verify the mounting plate fits your internal components (1,099 x 1,896 mm). Plan for IP55-rated sealing and standard cable entry through the gland plates to maintain enclosure integrity during installation.
Yes. The VX 8204.000 is UL 50E Type 1 rated and IK10 impact resistant, with IP55 dust and water protection and NEMA 1 enclosure classification. This combination supports safe operation in industrial automation environments and helps meet regulatory and safety requirements for control cabinets.
Best suited for manufacturing automation and process control panels, the VX 8204.000 provides a standardised interior layout, robust sheet steel construction, and a 1200x2000x400 mm footprint. It supports consistent component mounting, easy cable management, and scalable configurations across multiple production lines.
Durable sheet steel with dipcoat priming and powder-coated exterior minimizes corrosion and maintenance needs. Zinc-plated gland plates resist wear, while the rigid frame and doors support long service life. The included mounting hardware and standardised rails simplify upgrades and reduce lifecycle downtime, contributing to lower total cost of ownership.
Standardised interior components, a full set of mounting rails, and ready-to-install features (doors, roof, rear panel) reduce install time and field wiring effort. Its IP55/NEMA 1/UL 50E Type 1 compliance lowers certification risk, while the 1,200 x 2,000 x 400 mm footprint fits common automation modules, enabling predictable, repeatable installations and lower project costs.
