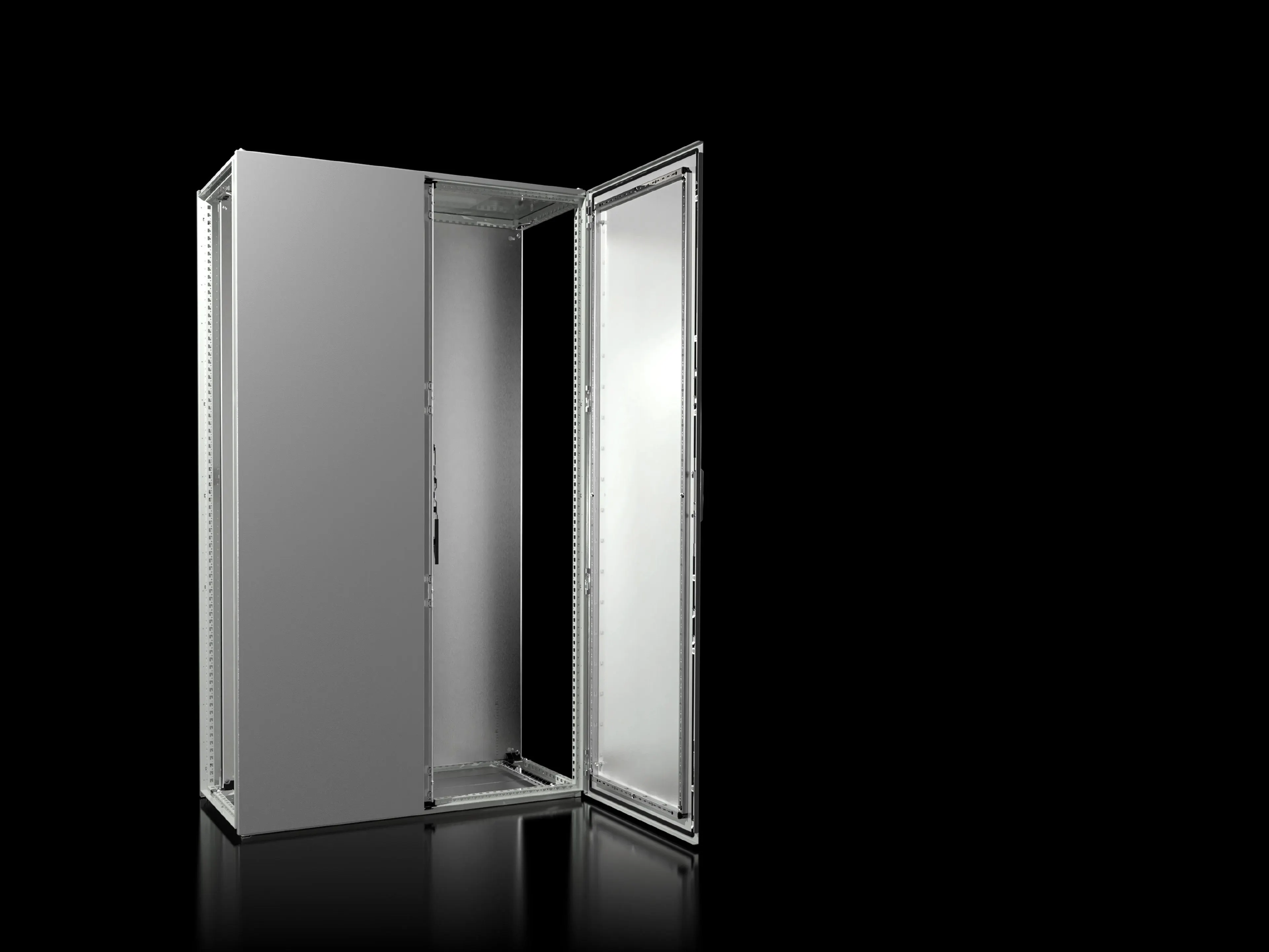

Rittal VX 8205.000 Enclosure - IP55, IK10 Certified
Part Number: 8205000
Manufacturer
Rittal
Part number
8205000
Alt Part Number
VX 8205.000
Quick Summary
Rittal VX 8205.000 enclosure provides robust frame and dual front doors for industrial control cabinet installations. It tackles installation bottlenecks by delivering a complete interior with mounting plate, roof, rear panel and gland plates, speeding up panel wiring and service access. Certified to IP55 and IK10, with UL 50E Type 1 compatibility, it withstands demanding factory conditions while ensuring long-term reliability. The steel construction pairs with a dipcoat-primed frame, powder-coated exterior, and corrosion-resistant gland plates to deliver durable performance in harsh environments. Coupled with standardized dimensions and built-in rails, this enclosure supports scalable deployments and reduces total cost of ownership. Its inside-out design supports future upgrades and routine maintenance with minimal downtime.
Product Information
Extended Description
8205000 Rittal: VX Baying enclosure system, WHD: 1200x2000x500 mm, sheet steel, with mounting plate, two doors at the front
Article number
VX 8205.000
Material
Enclosure frame: Sheet steel, 1.5 mm | Roof: Sheet steel, 1.5 mm | Door: Sheet steel, 2.0 mm | Rear panel: Sheet steel, 1.5 mm | Gland plates: Sheet steel, 1.5 mm | Mounting plate: Sheet steel, 3.0 mm
Surface finish
Enclosure frame: Dipcoat-primed | Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint | Mounting plate and gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure frame | Door(s) | Door hinged on the right, may be swapped to the left | Roof plate | Rear panel | Gland plates | Mounting plate | 2 punched rails 18 x 39 mm | Lock: 3 mm double-bit
Dimensions
Width: 1,200 mm | Height: 2,000 mm | Depth: 500 mm
Dimensions mounting plate (W x H)
1,099 mm x 1,896 mm
Protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 1
Type rating to UL 50E
Type 1
IK Code
IK10
Number of doors
2
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
187 kg
PCF per pack (cradle-to-gate)
460.7 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177813625
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
VX Baying enclosure system, WHD: 1200x2000x500 mm, sheet steel, with mounting plate, two doors at the front
Feature: Full interior with mounting plate, roof plate, rear panel and gland plates. Business Impact: Accelerates cabinet assembly and wiring, reducing field setup errors and commissioning time. Application: Ideal for industrial control panels in automation lines and electrical distribution. Feature: IP55 protection and IK10 impact resistance, plus NEMA 1 and UL 50E Type 1 compliance. Business Impact: Delivers reliable dust ingress protection and mechanical resilience in harsh factory floors, supporting safety standards and regulatory compliance. Application: Machines, conveyors, and process control cabinets across manufacturing environments. Feature: Right-hand door with swap-to-left capability. Business Impact: Flexible installation layouts around existing line structures, minimizing clearance conflicts during retrofits or new builds. Application: Retrofit projects and modular line upgrades in production facilities. Feature: External dimensions 1,200 x 2,000 x 500 mm with mounting plate 1,099 x 1,896 mm. Business Impact: Standardized footprint improves compatibility with 18 x 39 mm punched rails and accessory kits, speeding integration. Application: Electrical distribution enclosures and automation cabinet housings. Feature: Sheet steel construction with dipcoat-primed frame and powder-coated exterior; gland plates zinc-plated. Business Impact: Enhances corrosion resistance and exterior durability, reducing maintenance cycles and ensuring long-term aesthetics. Application: Indoor and outdoor industrial environments requiring rugged protection. Feature: 2 punched rails 18 x 39 mm; weight 187 kg per pack; PCF 460.7 kg CO2 eq (Cat B). Business Impact: Flexible interior mounting options and transparent sustainability metrics for project reporting. Application: Lifecycle-conscious installations and green-building documentation.
Get a Quick Quote for a Rittal 8205000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8205000?
Enquire Now
FAQs
The enclosure ships with 2 punched rails (18 x 39 mm) and a mounting plate measuring 1,099 x 1,896 mm, aligning with common enclosure accessories and simplifying retrofits. This design enables quick interior customization for controls, power distribution and instrumentation.
VX 8205.000 provides IP55 protection and IK10 impact resistance, with NEMA 1 and UL 50E Type 1 compliance. These ratings support dust/particle protection, mechanical durability, and electrical safety in industrial environments.
Yes. The door is hinged on the right by default and can be swapped to the left, offering installation flexibility to fit existing line layouts and space constraints without replacing the enclosure.
External dimensions are width 1,200 mm, height 2,000 mm, depth 500 mm, with a mounting plate of 1,099 x 1,896 mm. These specs ensure compatibility with common machine footprints and rail systems in automation cabinets.
The enclosure uses sheet steel with a dipcoat-primed frame and powder-coated exterior, zinc-plated gland plates, and weighs 187 kg per pack. PCF is 460.7 kg CO2 eq (Category B), enabling lifecycle assessment and lower maintenance over time.
