Rittal VX 8206.000 Enclosure - IP55, IK10, NEMA 1
Part Number: 8206000
Manufacturer
Rittal
Part number
8206000
Alt Part Number
VX 8206.000
Quick Summary
Rittal VX 8206.000 Enclosure provides sturdy housing for industrial control panels in demanding environments. Field installation often stalls due to interior mounting challenges and limited access. With IP55 protection, IK10 impact resistance and UL Type 1/NEMA 1 compliance, it meets rigorous safety and reliability standards. The integrated mounting plate, gland plates, and punched rails support fast interior installation and scalable automation layouts. For engineers and procurement teams, this enclosure reduces assembly time, improves serviceability, and drives long‑term cost savings. Designed for sheet steel construction with dip coat priming and powder-coated exterior, it withstands factory dust, moisture, and temperature swings while offering predictable delivery and installation benefits.
Product Information
Extended Description

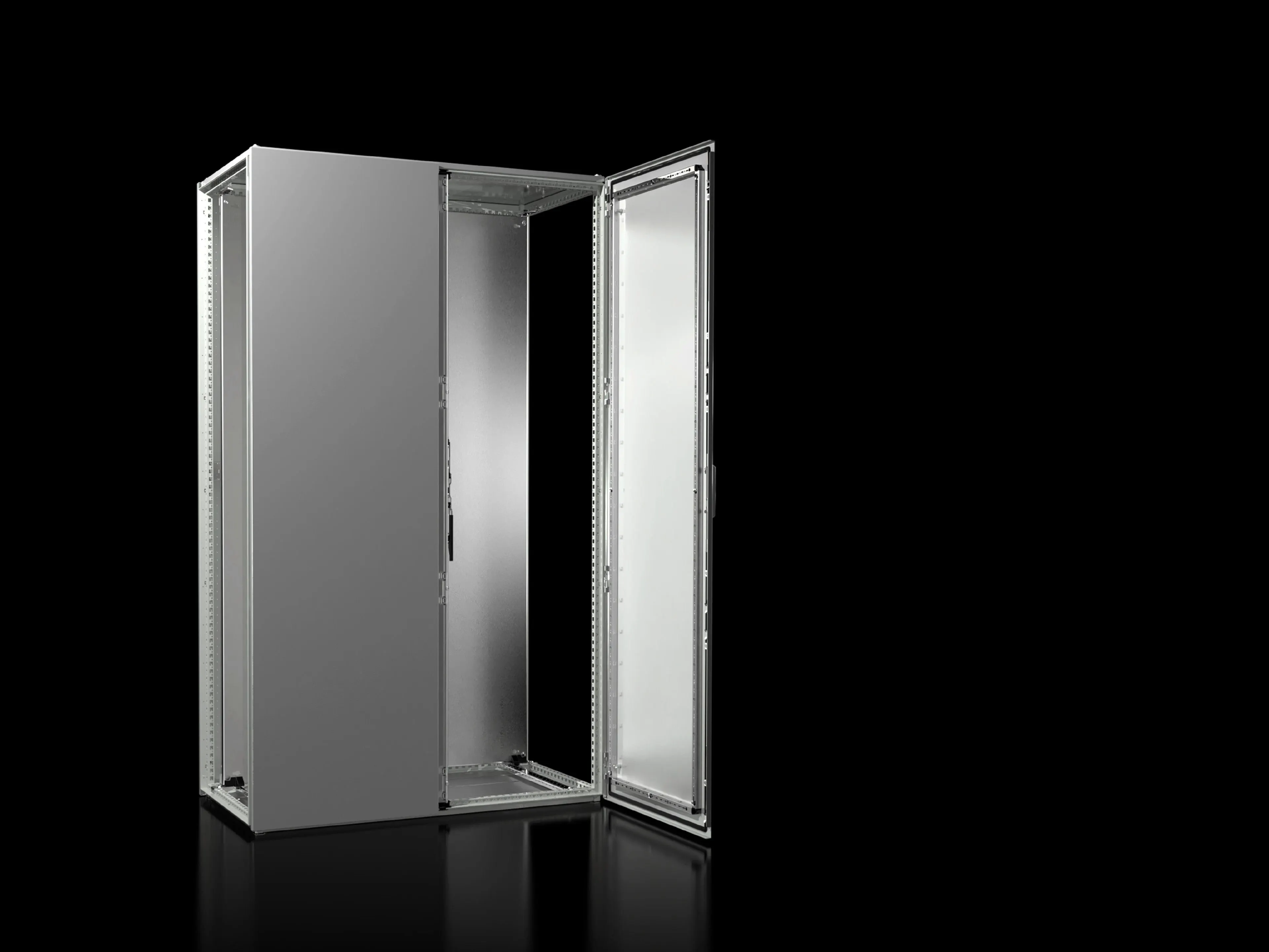

8206000 Rittal: VX Baying enclosure system, WHD: 1200x2000x600 mm, sheet steel, with mounting plate, two doors at the front
Article number
VX 8206.000
Material
Enclosure frame: Sheet steel, 1.5 mm | Roof: Sheet steel, 1.5 mm | Door: Sheet steel, 2.0 mm | Rear panel: Sheet steel, 1.5 mm | Gland plates: Sheet steel, 1.5 mm | Mounting plate: Sheet steel, 3.0 mm
Surface finish
Enclosure frame: Dipcoat-primed | Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint | Mounting plate and gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure frame | Door(s) | Door hinged on the right, may be swapped to the left | Roof plate | Rear panel | Gland plates | Mounting plate | 2 punched rails 18 x 39 mm | Lock: 3 mm double-bit
Dimensions
Width: 1,200 mm | Height: 2,000 mm | Depth: 600 mm
Dimensions mounting plate (W x H)
1,099 mm x 1,896 mm
Protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 1
Type rating to UL 50E
Type 1
IK Code
IK10
Number of doors
2
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
191 kg
PCF per pack (cradle-to-gate)
470.6 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94032080
EAN
4028177813601
ETIM 8
EC000261
ETIM 7.0
EC000261
ECLASS 8.0
27180101
Product description
VX Baying enclosure system, WHD: 1200x2000x600 mm, sheet steel, with mounting plate, two doors at the front
Feature: The VX 8206.000 Baying enclosure system arrives as a complete kit with a sheet steel frame, two front doors, a rear panel, roof plate, gland plates, mounting plate, and punched rails. Business Impact: Enables rapid interior layout and reduces field fabrication time, accelerating project timelines. Application: Control cabinets in automation plants seeking fast commissioning. Feature: Dual doors with a standard right-hand hinge that can be swapped to the left. Business Impact: Flexible enclosure access fits diverse plant layouts and minimizes rework during installation. Application: Machine housings in tight spaces where door swing matters. Feature: Protective ratings including IP55, IK10, NEMA 1 and UL Type 1. Business Impact: Ensures reliable operation in dusty, vibration-prone environments while meeting safety and regulatory requirements. Application: Industrial automation cabinets exposed to contaminants or hard-walled plant floors. Feature: Dimensions and mounting provisions 1,200 x 2,000 x 600 mm with mounting plate 1,099 x 1,896 mm. Business Impact: Improves planning accuracy and equipment fit, reducing commissioning risk. Application: Large control panels requiring precise interior layouts. Feature: 2 punched Rails 18 x 39 mm, supply includes mounting plate, gland plates, and rails. Business Impact: Facilitates flexible equipment mounting and reorganizations without custom fabrication. Application: Modular automation architectures and scalable electrical infrastructure. Feature: Material and finish—frame in 1.5 mm sheet steel, doors/roof/rear panel 2.0/1.5 mm, with dipcoat priming and powder-coated exterior. Business Impact: Delivers robust corrosion resistance and easy maintenance, lowering lifecycle costs. Application: Harsh factory environments where long‑term enclosure integrity matters. Feature: PCF 470.6 kg CO2 eq (Cat B) and weight 191 kg per pack. Business Impact: Supports sustainability reporting and lifecycle assessments while aligning with corporate environmental goals. Application: Projects requiring cradle-to-gate environmental data and responsible sourcing.
Get a Quick Quote for a Rittal 8206000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8206000?
Enquire Now
FAQs
Yes. The VX 8206.000 ships with 2 punched rails sized 18 x 39 mm and a mounting plate sized 1,099 x 1,896 mm, designed to accept common industrial components and standard rail-mounted devices, reducing the need for custom supports and speeding up wiring and assembly.
The enclosure measures 1,200 mm wide, 2,000 mm high, and 600 mm deep, with two front doors. Doors are hinged on the right by default and can be swapped to the left, enabling flexible installation in tight spaces and various plant layouts.
This VX model provides IP55 protection, IK10 impact resistance, NEMA 1 certification, and UL Type 1 rating, ensuring reliable operation in dusty, vibration-prone environments and compliance with common electrical safety standards.
Yes. With IP55 protection and rugged sheet steel construction, the enclosure is suited for demanding factory floors and controlled indoor environments, offering durable protection for electrical and automation equipment.
The enclosure carries a PCF of 470.6 kg CO2 eq (Cat B) and weighs 191 kg per pack, enabling lifecycle and sustainability reporting. The included mounting plate, gland plates, and rails simplify maintenance planning and future expansions without requiring custom fabrication.
