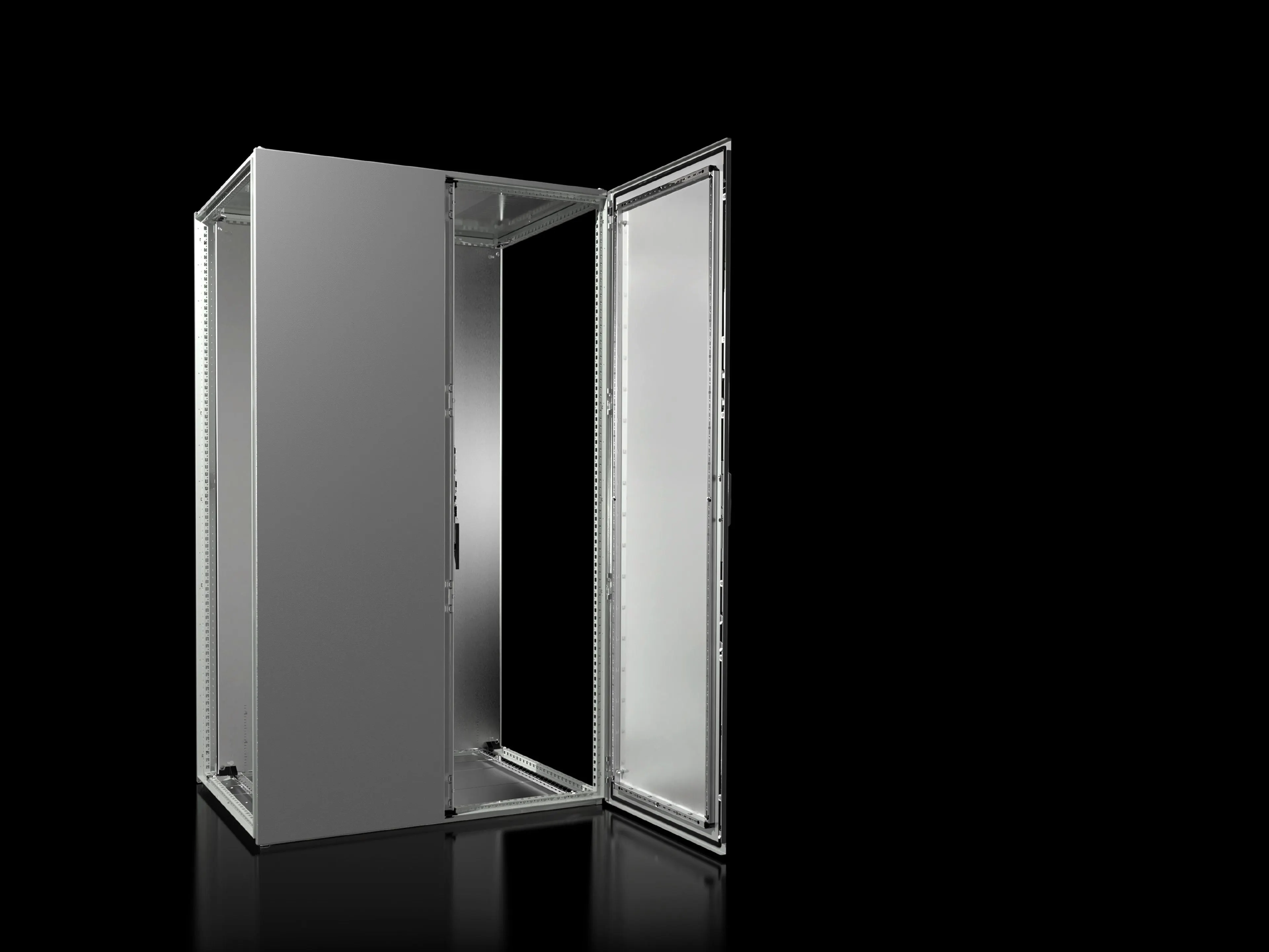

Rittal VX 8208.000 Enclosure - IP55, IK10, WHD 1200x2000x800
Part Number: 8208000
Manufacturer
Rittal
Part number
8208000
Alt Part Number
VX 8208.000
Quick Summary
Rittal VX 8208.000 enclosure is the robust housing for electrical control panels in industrial environments. Engineers often struggle with maximizing interior space, cable routing, and protecting sensitive components from dust and moisture in crowded control cabinets. This enclosure delivers IP55 protection, IK10 impact resistance, UL 50E Type 1 and NEMA 1 compatibility, with a durable powder-coated exterior in RAL 7035. The system supports precise interior installation thanks to a dedicated mounting plate, two punched rails, and versatile gland plate configurations. Door orientation is flexible—the right-hinge is standard but can be swapped to the left. For buyers, the result is faster assembly, improved maintenance access, and lower life-cycle costs in harsh production environments.
Product Information
Extended Description
8208000 Rittal: VX Baying enclosure system, WHD: 1200x2000x800 mm, sheet steel, with mounting plate, two doors at the front
Article number
VX 8208.000
Material
Enclosure frame: Sheet steel, 1.5 mm | Roof: Sheet steel, 1.5 mm | Door: Sheet steel, 2.0 mm | Rear panel: Sheet steel, 1.5 mm | Gland plates: Sheet steel, 1.5 mm | Mounting plate: Sheet steel, 3.0 mm
Surface finish
Enclosure frame: Dipcoat-primed | Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint | Mounting plate and gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure frame | Door(s) | Door hinged on the right, may be swapped to the left | Roof plate | Rear panel | Gland plates | Mounting plate | 2 punched rails 18 x 39 mm | Lock: 3 mm double-bit
Dimensions
Width: 1,200 mm | Height: 2,000 mm | Depth: 800 mm
Dimensions mounting plate (W x H)
1,099 mm x 1,896 mm
Protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 1
Type rating to UL 50E
Type 1
IK Code
IK10
Number of doors
2
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
201 kg
PCF per pack (cradle-to-gate)
495.2 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94032080
EAN
4028177813595
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
VX Baying enclosure system, WHD: 1200x2000x800 mm, sheet steel, with mounting plate, two doors at the front
Feature: High-grade sheet steel construction with defined thicknesses for frame, doors, roof, and rear panel. Business Impact: Superior mechanical protection for live equipment and longer cabinet life in demanding environments. Application: Suitable for automated lines and rugged manufacturing floors where reliability matters. Feature: Dipcoat-primed frame and powder-coated exterior with textured finish. Business Impact: Enhanced corrosion resistance and low-sheen maintenance under industrial dust. Application: Factory floors with exposure to moisture and airborne particulates. Feature: IP55 protection, IK10 impact resistance, UL 50E Type 1 and NEMA 1 compatibility. Business Impact: Regulatory compliance and certified performance reduce risk and rework. Application: Electrical control panels in regulated production settings. Feature: Mounting plate 1,099 x 1,896 mm and two 18 x 39 mm punched rails. Business Impact: Flexible interior layout enables precise component placement and faster wiring. Application: Custom automation cabinets requiring clean cable management. Feature: Supplied with two front doors, rear panel, gland plates, and mounting hardware. Business Impact: Quick onboarding and reduced field assembly time. Application: Projects with tight timelines and need for straightforward installation. Feature: 2 mm to 3 mm varied steel thickness, powder-coated exterior in RAL 7035. Business Impact: Durable enclosure with predictable maintenance intervals and aesthetic consistency. Application: Industrial environments where long service life and standard color coding matter. Feature: PCF 495.2 kg CO2 eq (Cat B). Business Impact: Environmentally characterized manufacturing footprint supports sustainability reporting. Application: Enterprises pursuing lifecycle assessments and green procurement.
Get a Quick Quote for a Rittal 8208000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8208000?
Enquire Now
FAQs
The VX 8208.000 ships with two front doors hinged on the right by default, and the design allows the hinges to be swapped to the left. This flexibility supports tighter layouts and easier access from the preferred side, reducing installation time and improving maintenance workflows in constrained spaces.
The enclosure provides IP55 protection and IK10 impact resistance, along with UL 50E Type 1 and NEMA 1 compatibility. The combination of IP and IK ratings with UL/NEMA classifications ensures compliance for both environmental protection and mechanical integrity in industrial environments.
Yes. With a WHD of 1200x2000x800 mm, a robust sheet-steel construction, mounting plate, and gland plate configurations, this enclosure is well-suited for manufacturing control panels. The dual-door design and bottom-focused interior space optimization support reliable wiring, cooling, and component placement in demanding lines.
Key considerations include IP55 protection, IK10 impact resistance, UL 50E Type 1 rating, and NEMA 1 compatibility. These specifications address ingress protection, impact durability, and recognized electrical enclosure standards, simplifying compliance planning for regulated industrial environments.
The rugged powder-coated exterior and durable sheet-steel construction minimize corrosion-related maintenance, while the interior mounting plate and gland plates streamline wiring and upgrades. Although the enclosure is heavy, its long service life, easier access for diagnostics, and compatibility with standard accessories reduce downtime and total cost of ownership over the cabinet’s life cycle.
