Rittal VX 8226.000 Enclosure System - IP55
Part Number: 8226000
Manufacturer
Rittal
Part number
8226000
Alt Part Number
VX 8226.000
Quick Summary
The Rittal VX 8226.000 Enclosure System provides robust framing and front-door access for efficient control-panel installations in automation environments. Engineers often struggle with wiring access, space planning, and maintenance when upgrading large enclosures in harsh industrial settings. This design meets IP55 protection, IK10 impact resistance, and UL 50E Type 1/NEMA 1 compliance, delivering compliant, reliable housing. With a powder-coated exterior and a modular interior, it supports fast installation and scalable expansion, reducing lifecycle costs and downtime across automation projects.
Product Information
Extended Description

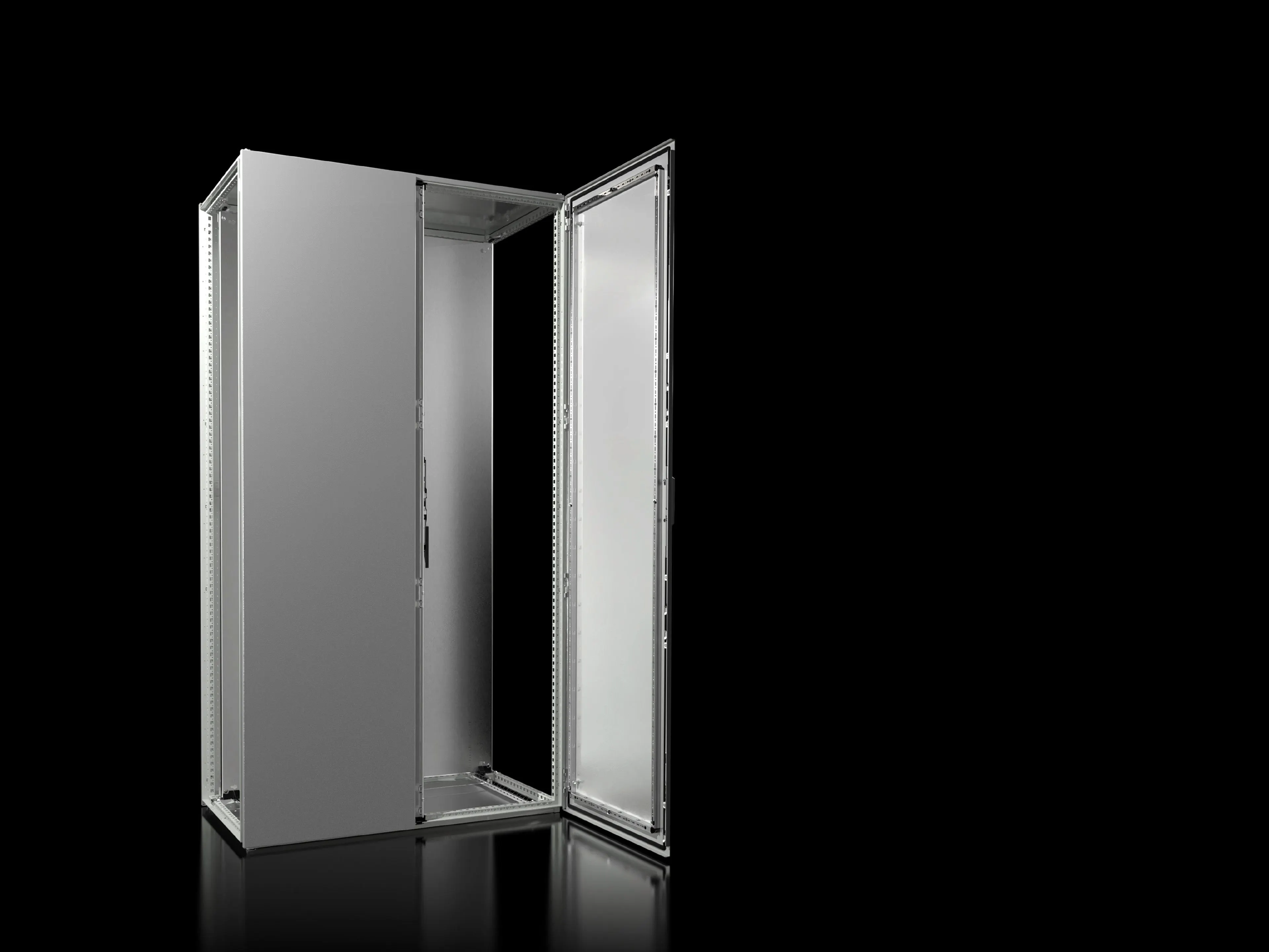

8226000 Rittal: VX Baying enclosure system, WHD: 1200x2200x600 mm, sheet steel, with mounting plate, two doors at the front
Article number
VX 8226.000
Material
Enclosure frame: Sheet steel, 1.5 mm | Roof: Sheet steel, 1.5 mm | Door: Sheet steel, 2.0 mm | Rear panel: Sheet steel, 1.5 mm | Gland plates: Sheet steel, 1.5 mm | Mounting plate: Sheet steel, 3.0 mm
Surface finish
Enclosure frame: Dipcoat-primed | Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint | Mounting plate and gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure frame | Door(s) | Door hinged on the right, may be swapped to the left | Roof plate | Rear panel | Gland plates | Mounting plate | 2 punched rails 18 x 39 mm | Lock: 3 mm double-bit
Dimensions
Width: 1,200 mm | Height: 2,200 mm | Depth: 600 mm
Dimensions mounting plate (W x H)
1,099 mm x 2,096 mm
Protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 1
Type rating to UL 50E
Type 1
IK Code
IK10
Number of doors
2
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
204 kg
PCF per pack (cradle-to-gate)
502.6 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94032080
EAN
4028177813571
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
VX Baying enclosure system, WHD: 1200x2200x600 mm, sheet steel, with mounting plate, two doors at the front
Feature: Enclosure frame and door assembly in sheet steel with varying thicknesses. Business Impact: Delivers a rigid structure and durable protection against dust and impact, minimizing field repairs. Application: Ideal for control cabinets in rugged automation environments. Feature: Comprehensive supply includes enclosure frame, door(s), roof plate, rear panel, gland plates, mounting plate, and 2 punched rails. Business Impact: Speeds interior wiring, simplifies component mounting, and reduces install time and errors. Application: Streamlined panel construction for electrical infrastructure projects. Feature: Protection and standards: IP55, NEMA 1, UL 50E Type 1. Business Impact: Ensures regulatory compliance and reliable operation in industrial settings. Application: Safe, compliant housing for electrical equipment. Feature: Interior compatibility: mounting plate dimensions 1,099 mm × 2,096 mm and 18 × 39 mm rails. Business Impact: Facilitates precise component layout and easy upgrades. Application: Scalable configurations for evolving automation needs. Feature: Weight and sustainability: weight 204 kg per pack; PCF 502.6 kg CO2 eq (Cat B). Business Impact: Provides a durable, long-life enclosure with quantified environmental footprint. Application: Cost-conscious planning and lifecycle assessment. Feature: Door hinging option: doors hinged on the right, swappable to the left. Business Impact: Improves installation ergonomics and site logistics. Application: Flexible installation for diverse plant layouts.
Get a Quick Quote for a Rittal 8226000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8226000?
Enquire Now
FAQs
The enclosure ships with doors hinged on the right but can be swapped to the left, plus a mounting plate, rear panel, gland plates, and two punched rails. This configuration supports quick interior wiring, flexible access, and straightforward retrofits, reducing site downtime during panel upgrades.
This model provides IP55 protection, IK10 impact resistance, and UL 50E Type 1/NEMA 1 compliance. These standards ensure dust and water resistance, robust impact protection, and electrical enclosure suitability for industrial control cabinets, helping you meet regulatory requirements and maintain system reliability.
While IP55 offers substantial protection against dust and water ingress, this enclosure is not rated for direct outdoor exposure in severe weather. For outdoor or exposed locations, supplemental protection or higher IP-rated enclosures should be considered, depending on environmental conditions and regulatory requirements.
Interior compatibility includes a mounting plate sized 1,099 × 2,096 mm, two 18 × 39 mm punched rails, and gland plates that streamline cable entry. The design supports tidy wiring, modular component placement, and easier future upgrades, reducing installation time and error rates in control cabinets.
Each pack weighs 204 kg and carries a PCF of 502.6 kg CO2 eq (Cat B), reflecting a substantial but measurable environmental footprint. While the upfront cost reflects durable sheet-steel construction and long service life, the standardized components and straightforward maintenance contribute to lower lifecycle costs and predictable ROI over time.
