Rittal VX 8284.000 Enclosure System for Industry - IK10
Part Number: 8284000
Manufacturer
Rittal
Part number
8284000
Alt Part Number
VX 8284.000
Quick Summary
The Rittal VX 8284.000 enclosure is a robust housing for industrial control panels and electrical gear. This solution addresses the common challenge of installing equipment quickly while maintaining long-term reliability in harsh factory environments. It delivers IP55 protection, IK10 impact resistance, and UL 50E Type 1/NEMA 1 compliance to meet rigorous standards. With a turnkey mounting plate and gland plates, it supports efficient interior installation and scalable panel architectures, reducing commissioning time and total cost of ownership for automation projects.
Product Information
Extended Description

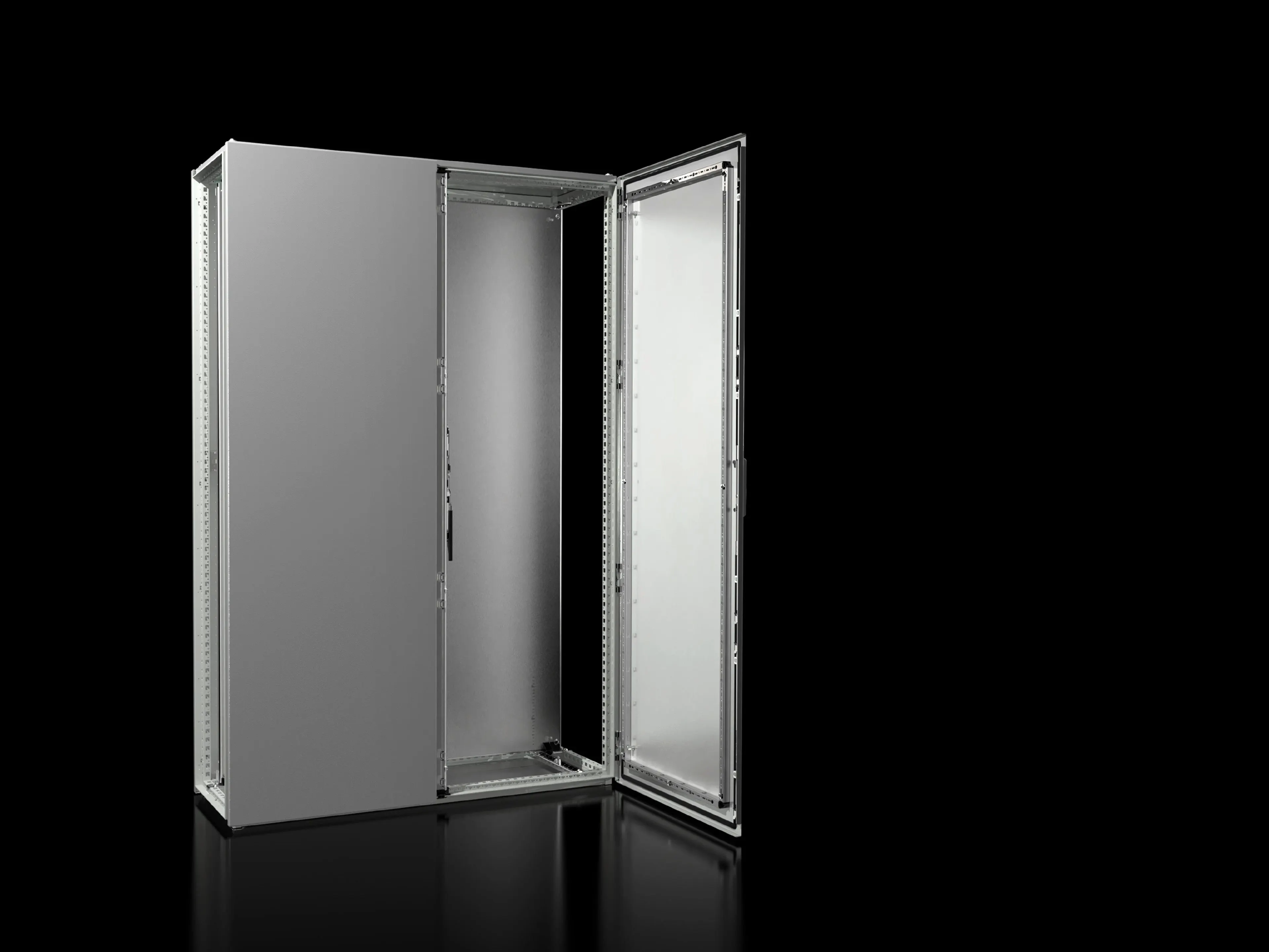

8284000 Rittal: VX Baying enclosure system, WHD: 1200x1800x400 mm, sheet steel, with mounting plate, two doors at the front
Article number
VX 8284.000
Material
Enclosure frame: Sheet steel, 1.5 mm | Roof: Sheet steel, 1.5 mm | Door: Sheet steel, 2.0 mm | Rear panel: Sheet steel, 1.5 mm | Gland plates: Sheet steel, 1.5 mm | Mounting plate: Sheet steel, 3.0 mm
Surface finish
Enclosure frame: Dipcoat-primed | Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint | Mounting plate and gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure frame | Door(s) | Door hinged on the right, may be swapped to the left | Roof plate | Rear panel | Gland plates | Mounting plate | 2 punched rails 18 x 39 mm | Lock: 3 mm double-bit
Dimensions
Width: 1,200 mm | Height: 1,800 mm | Depth: 400 mm
Dimensions mounting plate (W x H)
1,099 mm x 1,696 mm
Protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 1
Type rating to UL 50E
Type 1
IK Code
IK10
Number of doors
2
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
166 kg
PCF per pack (cradle-to-gate)
409 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177813533
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
VX Baying enclosure system, WHD: 1200x1800x400 mm, sheet steel, with mounting plate, two doors at the front
Feature: Heavy-duty sheet steel construction with defined thickness across components. Business Impact: Provides superior mechanical integrity, vibration resistance, and long-term durability in demanding environments. Application: Control cabinet housings in automotive, food & beverage, and process industries. Feature: Dipcoat-primed frame and powder-coated exterior with textured finish. Business Impact: Improves corrosion resistance and reduces maintenance cycles, lowering lifecycle costs. Application: Outdoor or wash-down environments where cleanliness and paint integrity matter. Feature: IP55 ingress protection and IK10 impact resistance. Business Impact: Protects sensitive electronics from dust and impact, enabling unmanned installations with higher uptime. Application: Industrial automation panels in dusty or high-traffic areas. Feature: Integrated mounting plate (1099 x 1696 mm) and 2 punched rails (18 x 39 mm). Business Impact: Simplifies component mounting, wiring layouts, and upgrades, cutting install time by hours. Application: New builds and cabinet retrofits with standard rail-based components. Feature: Turnkey supply includes doors (right hinged, left-swapable), roof plate, rear panel, gland plates, and mounting hardware. Business Impact: Reduces vendors and procurement steps, delivering a ready-to-wire enclosure. Application: System integrators delivering turnkey control cabinets. Feature: Weight and PCF data (166 kg per pack, 409 kg CO2 eq). Business Impact: Enables lifecycle planning and sustainability reporting, aiding green procurement. Application: Large-scale panel projects with environmental constraints.
Get a Quick Quote for a Rittal 8284000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8284000?
Enquire Now
FAQs
The VX 8284.000 ships with two punched rails (18 x 39 mm) and a mounting plate sized 1099 x 1696 mm. The doors are hinged on the right by default and can be swapped to the left, simplifying installation to match existing panel layouts and improving accessibility in crowded spaces.
The enclosure uses sheet steel with varying thicknesses (1.5 mm to 3.0 mm for mounting plate), plus a powder-coated exterior. It provides IP55 protection, IK10 impact resistance, and UL 50E Type 1/NEMA 1 compliance, making it suitable for demanding industrial environments and code-aligned panel fabrication.
Yes. IP55 protection shields internal components from dust and water ingress, while the textured powder-coated exterior offers enhanced durability. This makes it appropriate for many automation cabinets and process equipment enclosures in moderately harsh environments.
The enclosure meets IP55 and IK10 ratings, UL 50E Type 1, and NEMA 1 classifications, with NEMA-based and UL-compliant design considerations. These certifications help ensure code compliance for North American and international panel builds and support safe integration with standard electrical components.
Weight per pack is 166 kg, with a PCF of 409 kg CO2 eq (Category B). This data supports lifecycle assessment, helps with transport planning, and informs sustainability reporting, contributing to a more predictable maintenance cycle and informed procurement decisions in large automation projects.
