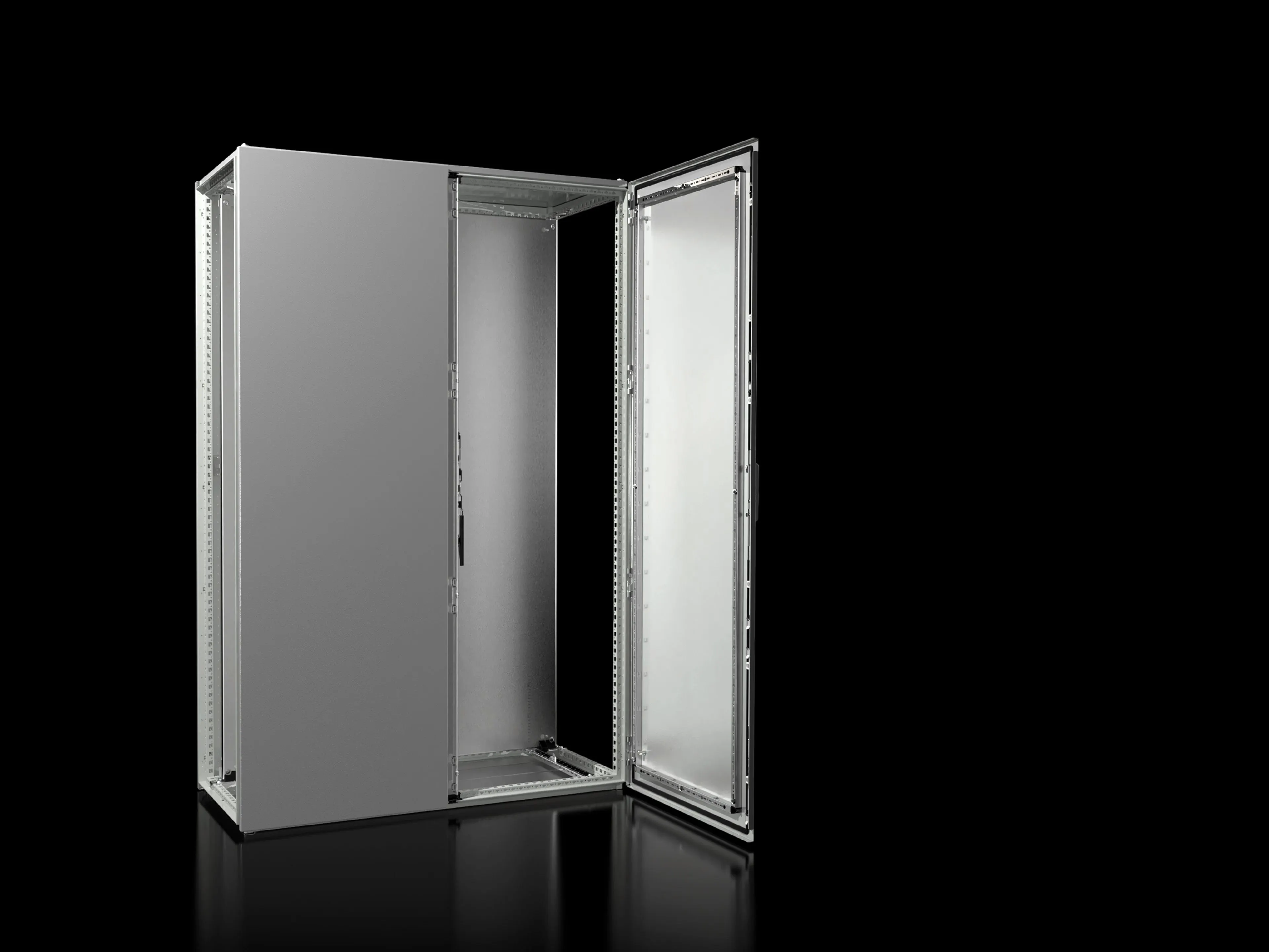

Rittal 8285000 VX Baying Enclosure System - IP55

Feature → Business Impact → Application: The VX 8285.000 uses a mounting plate sized 1,099 mm by 1,696 mm and includes two punched rails (18 x 39 mm) for DIN-rail equipment. The kit supports left or right door orientation and eases interior layout, enabling faster panel wiring and service access in control cabinets. Feature → Business Impact → Application: The enclosure is constructed from sheet steel with a 1.5–2.0 mm frame and a 2.0 mm door, delivering robust protection while maintaining moderate weight for handling on site; this supports reliable operation in manufacturing lines and process facilities. Feature → Business Impact → Application: Dipcoat-primed exterior and powder-coated outer surfaces provide corrosion resistance, extending cabinet life in challenging environments and reducing maintenance costs across installations. Feature → Business Impact → Application: Supplied with two 18 x 39 mm rails, a mounting plate, rear panel, gland plates, and a right-hand hinge option (swap to left); this accelerates installation and simplifies future expansions without custom fabrication. Feature → Business Impact → Application: IP55 protection, IK10 impact resistance, and UL 50E Type 1 compliance ensure regulatory alignment and safety in electrical infrastructure projects, machine builders, and automation rooms, supporting risk reduction and uptime.
