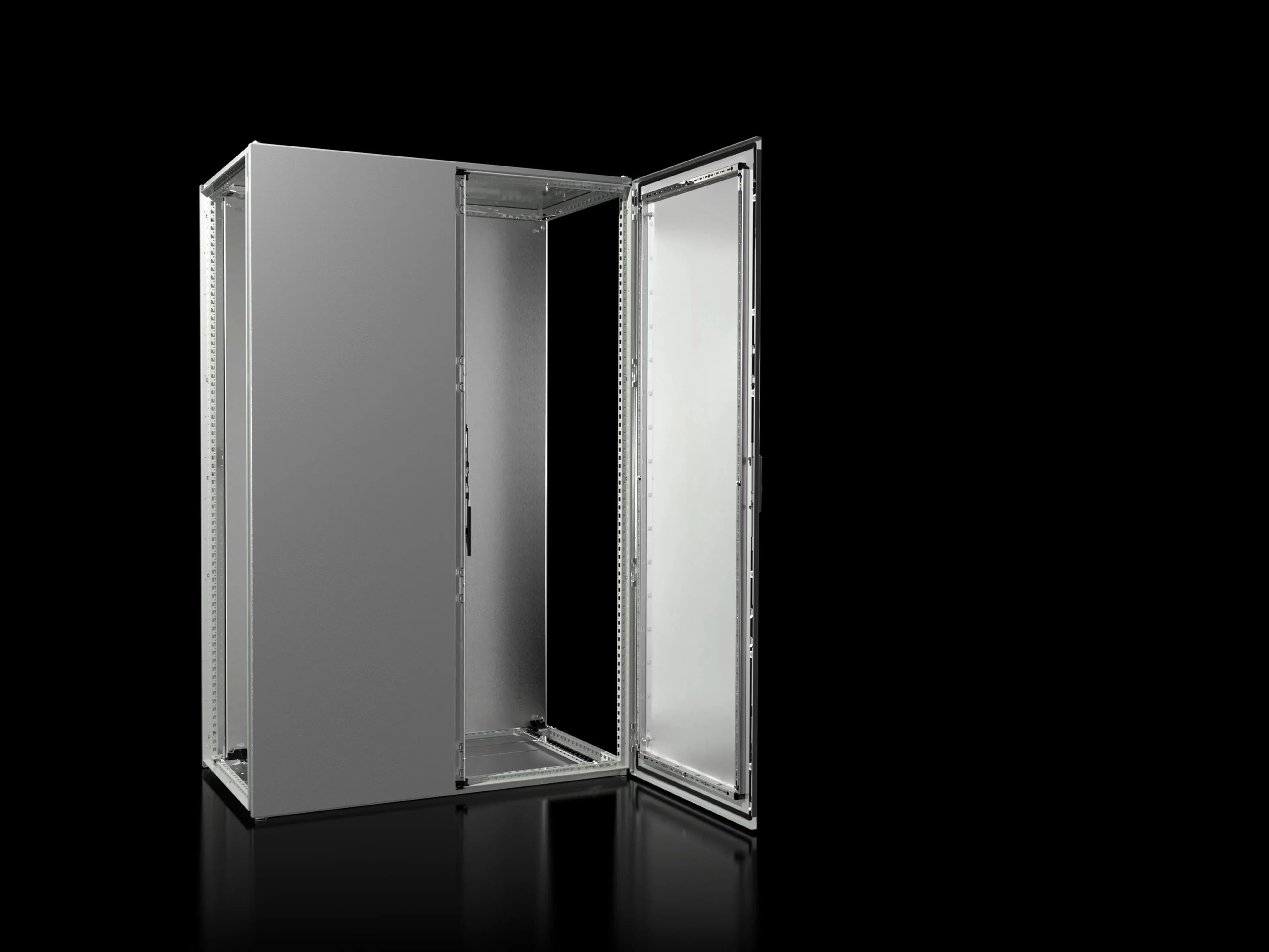

Rittal VX 8286.000 Enclosure - IP55
Part Number: 8286000
Manufacturer
Rittal
Part number
8286000
Alt Part Number
VX 8286.000
Quick Summary
Rittal VX 8286.000 enclosure is a rugged frame system for housing electrical control gear in harsh industrial environments. Many engineers struggle with protection against dust, moisture, and interior misalignment, which leads to maintenance delays and downtime. This enclosure unit delivers IP55 protection, NEMA 1 suitability, and IK10 impact resistance, with UL 50E Type 1 compatibility to support safe, regulatory-compliant installations. Its interior-focused design accelerates wiring and component mounting, while the robust frame and textured exterior finish reduce service interruptions. For procurement teams, the VX 8286.000 combines reliability with efficient installation and long-term cost savings for industrial automation projects.
Product Information
Extended Description
8286000 Rittal: VX Baying enclosure system, WHD: 1200x1800x600 mm, sheet steel, with mounting plate, two doors at the front
Article number
VX 8286.000
Material
Enclosure frame: Sheet steel, 1.5 mm | Roof: Sheet steel, 1.5 mm | Door: Sheet steel, 2.0 mm | Rear panel: Sheet steel, 1.5 mm | Gland plates: Sheet steel, 1.5 mm | Mounting plate: Sheet steel, 3.0 mm
Surface finish
Enclosure frame: Dipcoat-primed | Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint | Mounting plate and gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure frame | Door(s) | Door hinged on the right, may be swapped to the left | Roof plate | Rear panel | Gland plates | Mounting plate | 2 punched rails 18 x 39 mm | Lock: 3 mm double-bit
Dimensions
Width: 1,200 mm | Height: 1,800 mm | Depth: 600 mm
Dimensions mounting plate (W x H)
1,099 mm x 1,696 mm
Protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 1
Type rating to UL 50E
Type 1
IK Code
IK10
Number of doors
2
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
174 kg
PCF per pack (cradle-to-gate)
428.7 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94032080
EAN
4028177813663
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
VX Baying enclosure system, WHD: 1200x1800x600 mm, sheet steel, with mounting plate, two doors at the front
Feature: Durable sheet steel construction with varied thicknesses provides rugged protection against mechanical impacts and harsh environments. Business Impact: Increases cabinet longevity and reduces maintenance frequency, improving production uptime. Application: Ideal for machine control panels and process automation enclosures in manufacturing plants. Feature: Protective coating and primer finish on frame and panels enhances corrosion resistance. Business Impact: Extends service life in humid or dusty environments, lowering lifecycle costs. Application: Outdoor-rated or semi-exposed installations where environmental exposure is a concern. Feature: IP55 protection, NEMA 1 suitability, and IK10 impact resistance ensure reliable dust and water ingress protection and mechanical durability. Business Impact: Compliance with industry standards while minimizing field repair needs. Application: Electrical infrastructure cabinets for automated lines and process control. Feature: Included mounting plate (1099 × 1696 mm), two punched rails, gland plates, and a right-hinged door (swappable to left). Business Impact: Streamlines interior layout and wiring, reduces install time, and supports flexible configuration. Application: Quick integration with existing control hardware and cabling layouts. Feature: Two front doors, rear panel, roof plate, and full accessory set simplify interior installation. Business Impact: Faster wiring, cleaner cable management, and repeatable assembly for modular systems. Application: Scalable enclosure strategy for growing automation projects. Feature: Weight and PCF data support sustainable procurement and lifecycle planning (174 kg per pack; 428.7 kg CO2 eq). Business Impact: Informs transport planning and environmental reporting, enabling greener design choices. Application: Enterprise procurement and sustainability reporting for large-scale deployments.
Get a Quick Quote for a Rittal 8286000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8286000?
Enquire Now
FAQs
VX 8286.000 includes a mounting plate sized 1099 mm by 1696 mm along with 18 x 39 mm punched rails and gland plates, allowing straightforward interior layout. Doors can be hinged on the right or swapped to the left, enabling flexible installation to fit existing rack or frame configurations and reducing retrofit effort in machinery and panels.
The VX 8286.000 is built from sheet steel with a 1.5–2.0 mm frame and panel thickness. It delivers IP55 protection, NEMA 1 suitability, and IK10 impact resistance, ensuring robust dust and water ingress protection and mechanical durability in demanding environments.
Yes. With IP55 protection and a powder-coated exterior finish, the enclosure is designed to withstand dust and splash in industrial environments. The IK10 rating also provides high impact resistance, making it suitable for factory floors, outdoor walkways, and protected outdoor installations when properly mounted.
The enclosure supports UL 50E Type 1 configurations, NEMA 1 compatibility, IK10 impact resistance, and IP55 protection. This combination aligns with common industrial and electrical safety requirements, aiding regulatory compliance for automation cabinets and control panels.
The robust sheet steel construction, integrated mounting hardware, and durable coatings reduce maintenance frequency and interior rework. With a weight of 174 kg per pack and a cradle-to-gate PCF of 428.7 kg CO2 eq (Cat B), procurement and lifecycle planning can optimize transport, installation efficiency, and sustainability reporting for large deployments.
