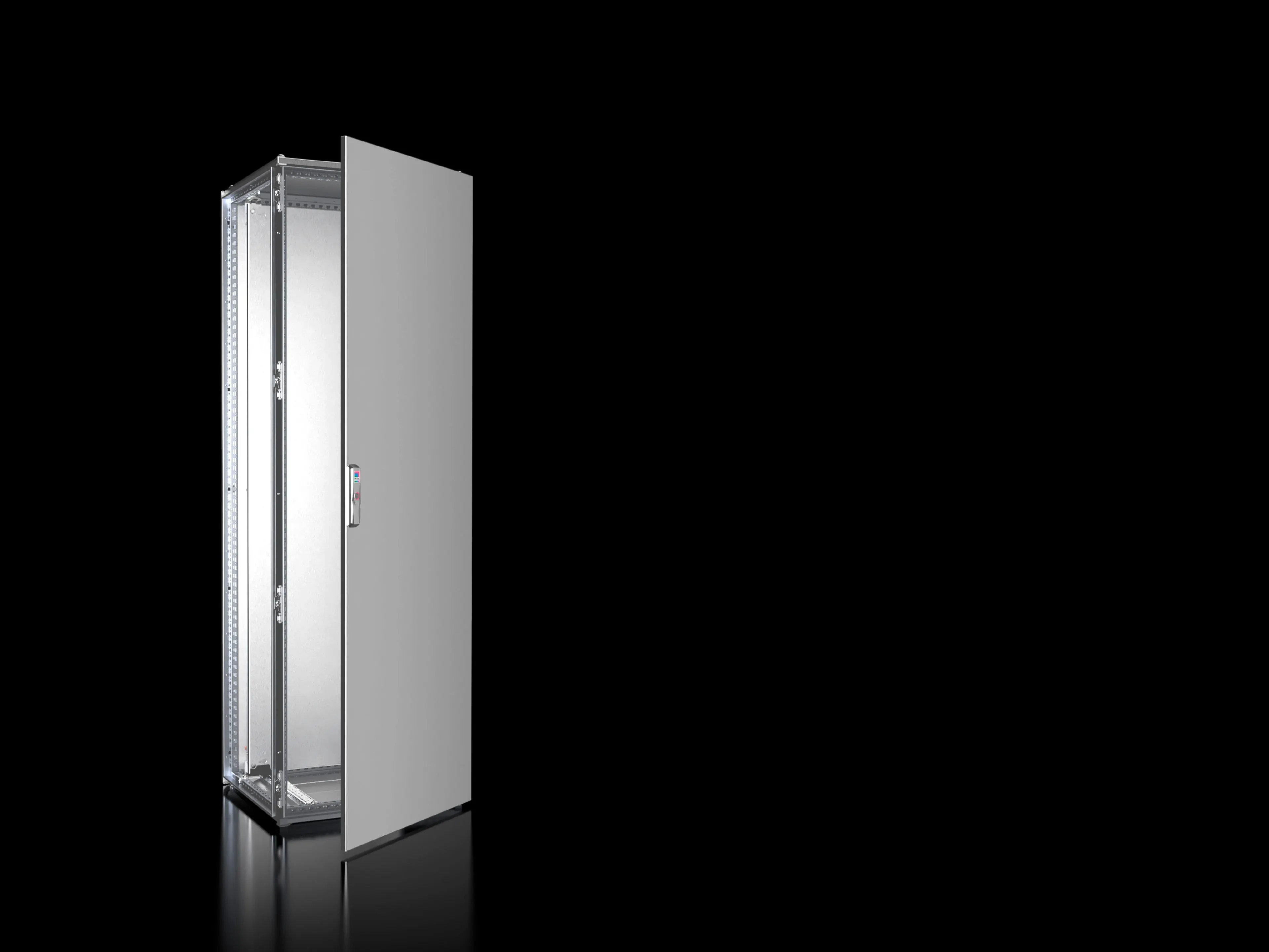

Rittal VX 8457.000 Enclosure - IP55 and IK10

Stainless steel construction using 1.4301 provides excellent corrosion resistance and durability in damp, dusty, or wash-down environments. This translates to reduced maintenance downtime and longer service life for automation cabinets in manufacturing and process industries. The VX 8457.000 is designed for efficient interior installation, thanks to its mounting plate and gland plate configuration, which helps fit complex wiring without compromising enclosure integrity. The WHD 600x1800x500 mm footprint, combined with a large interior mounting area (499x1696 mm mounting plate), supports standard DIN rails and heavy components. With one front door hinged on the right (swap to left), technicians can adapt to plant layouts and existing switchgear stacks, reducing rework during upgrades. Protection and compliance are central: IP55 enclosure rating, IK10 impact resistance, UL 50E Type 1, and NEMA 1 compatibility provide broad safeguarding for electrical assemblies. Exterior brushed surfaces protect aesthetics and maintain appearances in tight production lines, while interior unsleeved surfaces facilitate cable routing. The supply includes enclosure frame, door, roof plate, rear panel, gland plates, mounting plate, locking hardware, and punched rails, enabling rapid installation. The included rails (18x39 mm) and 3 mm lock simplify assembly and ensure consistent mounting of drives and controllers. Metal hardware recommendations (2486.400) are provided in the note for interior installation in hard material. From a sustainability perspective, this VX enclosure has a cradle-to-gate PCF of 226.2 kg CO2 eq (Cat B) and weighs 91.8 kg per pack, informing lifecycle cost calculations.
