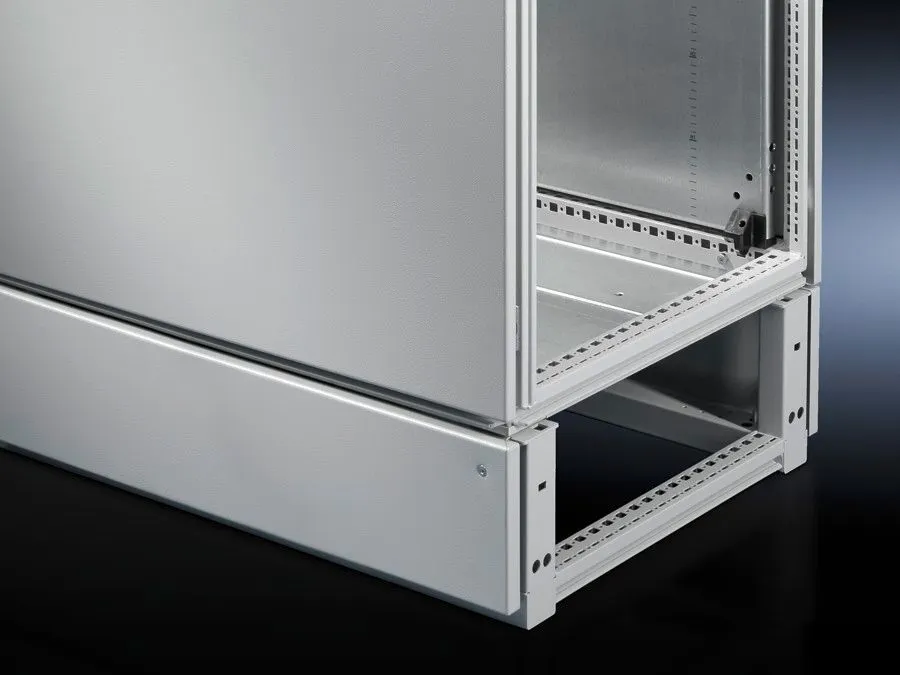

Rittal TS 8600.265 Cable Chamber - UL 50E Type 1
Part Number: 8600265
Quick Summary
Rittal TS 8600.265 Cable Chamber is a robust cable management accessory for TS and VX enclosures, designed to organize and protect wiring within critical control panels. Manufacturers often struggle with cluttered cables, limited mounting space, and inconsistent punchings that slow installation. This chamber carries UL 50E Type 1 capability and aligns with ETIM EC000721 and ECLASS 27182003 standards, ensuring reliable procurement and interoperability. By providing ready-to-install frame and trim panels, it delivers a predictable, repeatable setup that supports faster assembly and long-term maintenance, while maintaining a professional, serviceable appearance across your panel builds. Use as a compatible enclosure upgrade to improve accessibility, traceability, and overall enclosure integrity.
Product Information
Extended Description
8600265 Rittal: TS Cable chamber, for TS, SE, H: 200 mm, for WD: 1200x600 mm
Article number
TS 8600.265
Product description
With integral system punchings for individual system accessories.
Material
Sheet steel
Colour
RAL 7035
Supply includes
1 frame | 2 trim panels front/rear | Assembly parts for mounting on the enclosure
Dimensions
Height: 200 mm
To fit
Enclosure type: VX | TS | VX SE | Width: = 1,200 mm | Depth: = 600 mm
Type rating to UL 50E
Type 1
Packs of
1 pc(s).
Weight/pack
19.3 kg
PCF per pack (cradle-to-gate)
73.5 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177487215
ETIM 7.0
EC000721
ECLASS 8.0
27182003
Product description
TS Cable chamber, for TS, SE, H: 200 mm, for WD: 1200x600 mm
Feature: Integral system punchings for accessories → Business Impact: Simplifies mounting and routing of cables and system components, reducing assembly time and potential misalignment. Application: TS, SE, VX enclosures with 1200x600 mm footprint. Feature: 200 mm height and 1200x600 mm WD compatibility → Business Impact: Optimizes vertical cable management space, improving airflow and serviceability. Application: Retrofit and new builds for line-side and control wiring. Feature: Sheet steel, RAL 7035 finish → Business Impact: Delivers durable protection against impacts and corrosion with a consistent factory finish. Application: Harsh manufacturing environments and high-traffic panels. Feature: UL 50E Type 1 rating → Business Impact: Provides recognized enclosure performance compliance for general purpose electrical installations. Application: Industrial control panels requiring certified enclosures. Feature: Complete supply includes frame, two front/rear trim panels, and mounting parts → Business Impact: Reduces sourcing steps and installation time, enabling faster project delivery. Application: On-site mounting on VX, TS, or VX SE enclosures. Feature: Weight 19.3 kg per pack and PCF 73.5 kg CO2 eq (Cat B) → Business Impact: Predictable handling, logistics planning, and an environmental footprint assessment for green procurement. Application: Volume deployment across plants with CO2 accounting.
Get a Quick Quote for a Rittal 8600265
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8600265?
Enquire Now
FAQs
Begin by confirming enclosure compatibility (TS, VX, VX SE) and the 1200x600 mm footprint. Mount the frame to the cabinet using supplied assembly parts, then attach the front and rear trim panels. Ensure cable punchings align with your planned routes and route cables through integral openings to maximize space and maintain clearance for hinges and doors.
UL 50E Type 1 indicates the accessory meets standard electrical enclosure performance requirements for general use in non-hazardous locations. It confirms basic protection of internal components and compatibility with common industrial environments, supporting safer, compliant panel assemblies.
Yes, built from sheet steel with a durable RAL 7035 finish, it offers robust protection for wiring and components in typical factory settings. For heavy or vibration-sensitive cables, use the integrated punchings and mounting options to secure conduits and reduce movement, while maintaining access for maintenance.
The product is classified under ETIM 7.0 EC000721 and ECLASS 8.0 27182003, ensuring compatibility with digital catalogs and procurement systems. These standards streamline part matching, data integrity, and cross-vendor interoperability in global supply chains.
Installing the TS 8600.265 reduces cabling complexity, speeds assembly with a ready-to-install frame and trim panels, and improves serviceability. Combined with standardized punchings and compatible enclosure types, you can lower labor hours per panel and minimize rework, contributing to faster project delivery and lower maintenance costs over the equipment lifecycle.
