Rittal 8601680 TS Cross Member - 600/800 mm Stability
Part Number: 8601680
Quick Summary
Rittal 8601680 TS cross member is designed to boost enclosure stability for 600/800 mm depths. Many technicians struggle with tipping risk and misalignment when base frames are undersupported. This solution aligns with ETIM 9 EC000721 and ECLASS 8.0 27182003 standards, and its cradle-to-gate PCF is categorized at B to support sustainable procurement. By pairing with VX, TS, VX SE, TP, PC or IW enclosures, it enables safer floor mounting and modular upgrades, delivering faster installation and consistent performance. For engineers evaluating ergonomic labor costs and total cost of ownership, the 2-pack with left and right members simplifies stocking and ensures symmetrical support across the chassis.
Product Information
Extended Description

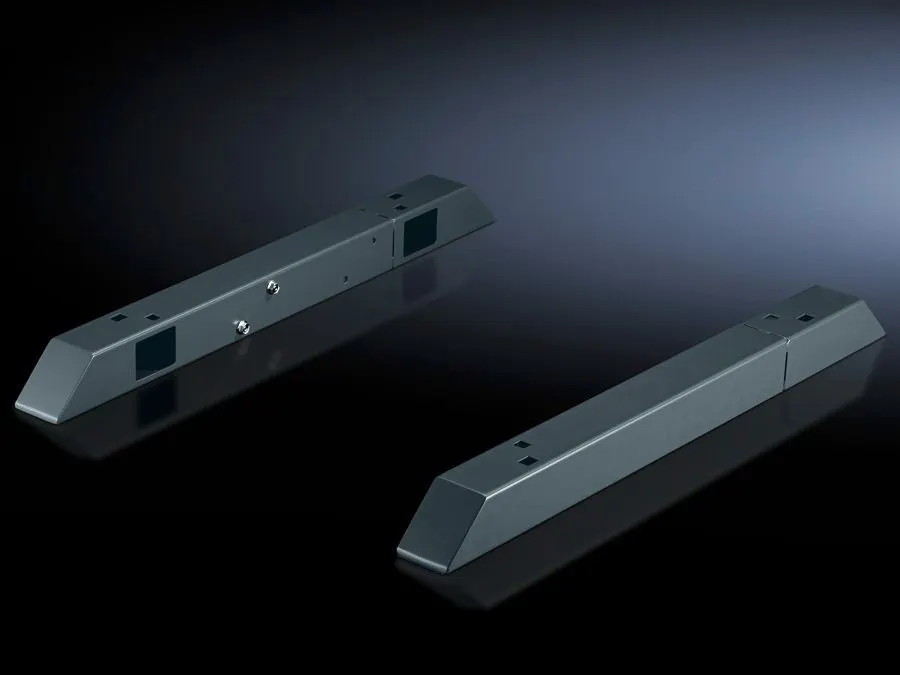

8601680 Rittal: TS Cross member, adjustable, for D: 600/800 mm
Article number
TS 8601.680
Product description
To increase stability, the cross member is positioned below the base frame of the enclosure and protrudes 138 mm at the front and rear. For deeper enclosures, the rear part may be extended and screw-fastened again. For screw-fastening to the floor and enclosure with mounting hole at the sides, front and rear. The castors and levelling feet may be secured to the welded nuts M12.
Benefits
To increase stability
Material
Sheet steel
Surface finish
Spray-finished
Colour
RAL 7015
Supply includes
1 cross member, left | 1 cross member, right
Installation options
For screw-fastening to the floor and enclosure with mounting hole at the sides, front and rear
Note
Ensure sufficient stability to prevent the enclosure from tipping over!
Dimensions
Height: 70 mm
To fit
Enclosure type: VX | TS | VX SE | TP | PC | IW | Depth: = 600 mm | = 800 mm
Suitable for depth
= 600 mm | = 800 mm
Packs of
2 pc(s).
Weight/pack
10.4 kg
PCF per pack (cradle-to-gate)
39.6 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177382640
ETIM 9
EC000721
ECLASS 8.0
27182003
Product description
TS Cross member, adjustable, for D: 600/800 mm
Feature: Adjustable cross member with 138 mm protrusion front and rear increases stability by extending the chassis base outward, reducing tipping risk during dynamic loads. Business impact: Safer, more reliable installations with less neighborhood vibration or load shift. Application: Suitable for 600/800 mm deep enclosures in VX and TS families, enabling quicker on-site alignment and safer floor mounting. Feature: Supplied as a two-piece pack (left and right) with a combined weight of 10.4 kg per pack. Business impact: Streamlined logistics, easier stock management, and balanced load distribution for symmetrical setups. Application: Ideal for standard industrial rollouts where consistent base support matters across multiple cabinets. Feature: Material is sheet steel with a spray finish in RAL 7015. Business impact: Durable, corrosion-resistant construction that matches standard enclosure aesthetics and reduces maintenance. Application: Suitable for harsh industrial environments and long service life in data/telecom and manufacturing facilities. Feature: Compatibility with floor mounting holes and side/front/rear mounting options. Business impact: Flexible installation with secure screw-fastening to floor and enclosure, plus compatibility with welded M12 nuts for castors and leveling feet. Application: Supports versatile site configurations and rapid upgrades without hardware rework. Feature: Sustainability metrics include PCF 39.6 kg CO2 eq (Cat B) per pack. Business impact: Lower environmental footprint and improved sustainability footprint in procurement decisions. Application: Aligns with green sourcing goals for modular enclosure systems.
Get a Quick Quote for a Rittal 8601680
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8601680?
Enquire Now
FAQs
The TS 8601680 cross member is designed for Rittal VX, TS, VX SE, TP, PC and IW enclosure families, supporting depths of 600 mm and 800 mm. It ships as a two-piece left/right set and includes mounting options for floor and enclosure mounting holes at the sides, front, and rear.
It positions below the base frame and protrudes 138 mm at the front and rear, creating a wider stability footprint. This reduces tipping risk under dynamic loads and helps maintain alignment during heavy equipment installation or movement.
Installation can be performed by screw-fastening to the floor and to the enclosure using mounting holes at the sides, front and rear. It is compatible with welded M12 nuts to secure castors or leveling feet, enabling flexible site configurations.
Key specs include material sheet steel with a spray finish, color RAL 7015, height 70 mm, two pieces per pack (left and right), weight 10.4 kg per pack, and EAN 4028177382640. It has ETIM 9 EC000721 and ECLASS 8.0 27182003 classifications, plus a cradle-to-gate PCF of 39.6 kg CO2 eq.
Yes, it supports floor mounting via screw-fastening and side/front/rear mounting holes. Sustainability-wise, the product is rated at PCF 39.6 kg CO2 eq per pack (Cat B), aiding procurement teams in meeting green sourcing targets while ensuring robust, long-lasting stability.
