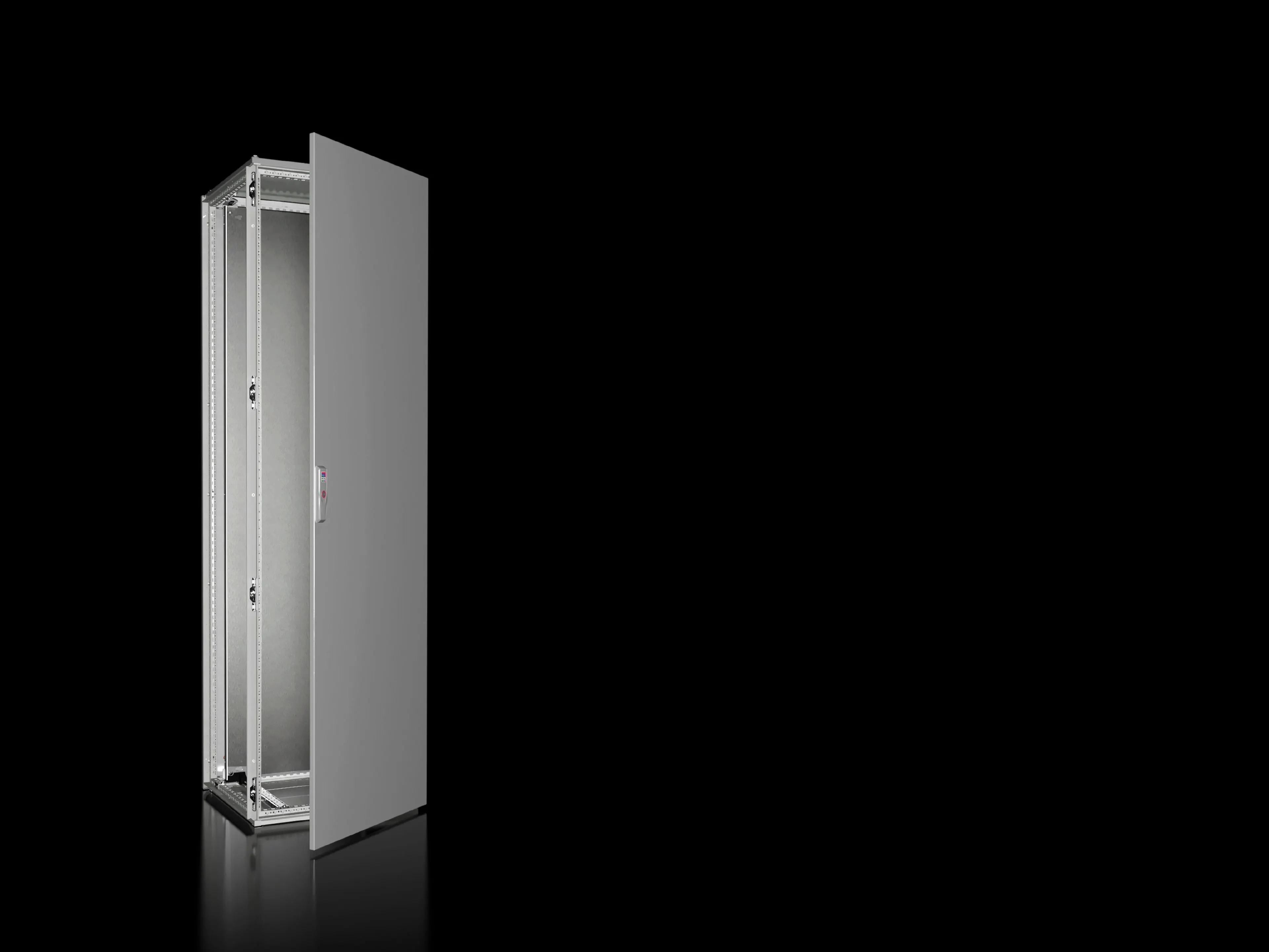

Rittal VX 8605.450 Enclosure - IP55
Part Number: 8605450
Manufacturer
Rittal
Part number
8605450
Alt Part Number
VX 8605.450
Quick Summary
Rittal VX 8605.450 enclosure is a rugged cabinet for housing electrical and automation components. Engineers use it to protect sensitive gear in control cabinets and harsh environments. Its IP55, IK10, UL 50E Type 1 certifications — plus C4-H corrosion protection — help ensure reliability in challenging settings. Designed for efficient interior installation, it features a mounting plate, gland plates, and a right-handed door that can be swapped to left, supporting scalable automation architectures while reducing maintenance costs and downtime.
Product Information
Extended Description
8605450 Rittal: VX baying enclosure system C4-H, WxHxD: 600x2000x500 mm, sheet steel, with mounting plate, single door at the front
Article number
VX 8605.450
Design
Surface coating to DIN EN ISO 12944, corrosion protection class C4-H
Material
Enclosure frame: Sheet steel, 1.5 mm | Roof: Sheet steel, 1.5 mm | Door: Sheet steel, 2.0 mm | Rear panel: Sheet steel, 1.5 mm | Gland plates: Sheet steel, 1.5 mm | Mounting plate: Sheet steel, 3.0 mm
Surface finish
Enclosure frame: Zinc-magnesium and powder coating | Door, roof and rear panel: Powder-coated, textured paint | Mounting plate and gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure frame | Door(s) | Door hinged on the right, may be swapped to the left | Roof plate | Rear panel | Gland plates | Mounting plate | 2 punched rails 18 x 39 mm | Lock: 3 mm double-bit
Dimensions
Width: 600 mm | Height: 2,000 mm | Depth: 500 mm
Dimensions mounting plate (W x H)
499 mm x 1,896 mm
Protection category to IEC 60 529
IP 55
Type rating to UL 50E
Type 1
IK Code
IK10
Number of doors
1
Basic material
Sheet steel
EAN
4028177993624
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
VX baying enclosure system C4-H, WxHxD: 600x2000x500 mm, sheet steel, with mounting plate, single door at the front
The VX 8605.450 baying enclosure system provides a compact, ready-to-install solution for control cabinets in manufacturing and process industries. Feature → Business Impact → Application: Enclosure frame in sheet steel with a 600 x 2000 x 500 mm footprint and a dedicated mounting plate delivers precise interior alignment, minimizing wiring errors and facilitating faster commissioning in panel builds. The corrosion-protection class C4-H and surface finish options extend service life in aggressive environments, lowering lifecycle costs for plant operators and system integrators. The included mounting plate size of 499 x 1896 mm and 2 punched rails 18 x 39 mm enable organized cable routing and secure component placement, improving maintainability and future expansion. The single door, with right-hand hinge and left-hand swap capability, simplifies installation geometry in constrained control rooms or cabinets. Compatibility with standard gland plates, rails, and mounting accessories supports scalable, modular architectures.
Get a Quick Quote for a Rittal 8605450
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8605450?
Enquire Now
FAQs
VX 8605.450 ships with 2 punched rails (18 x 39 mm), a mounting plate (499 x 1896 mm), and gland plates, ensuring straightforward integration with standard Rittal accessories and DIN rails. Its modular interior supports quick reconfiguration for new I/O while preserving cable management layouts.
The enclosure features a door hinged on the right and can be swapped to the left. When planning installation, verify hinge orientation relative to access space and cable routing at the front of the cabinet to maintain serviceability and safe operation.
This enclosure provides IP55 ingress protection, IK10 impact resistance, and UL 50E Type 1 compliance. Its surface coating to DIN EN ISO 12944 C4-H, along with a durable zinc-magnesium frame, supports long-term reliability in aggressive industrial environments.
External dimensions are 600 mm width, 2000 mm height, 500 mm depth. The mounting plate measures 499 x 1896 mm, and the interior supports standard gland plates and 18 x 39 mm punched rails, enabling flexible component layouts and efficient wiring.
Choosing VX 8605.450 reduces maintenance and downtime through rugged corrosion protection (C4-H), robust IP55/IK10 build, and a design that accelerates panel assembly. The result is longer service life, lower lifecycle costs, and faster ROI for control cabinet projects.
